EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) Casters Parts Diagram

34" Zero-Turn Mower

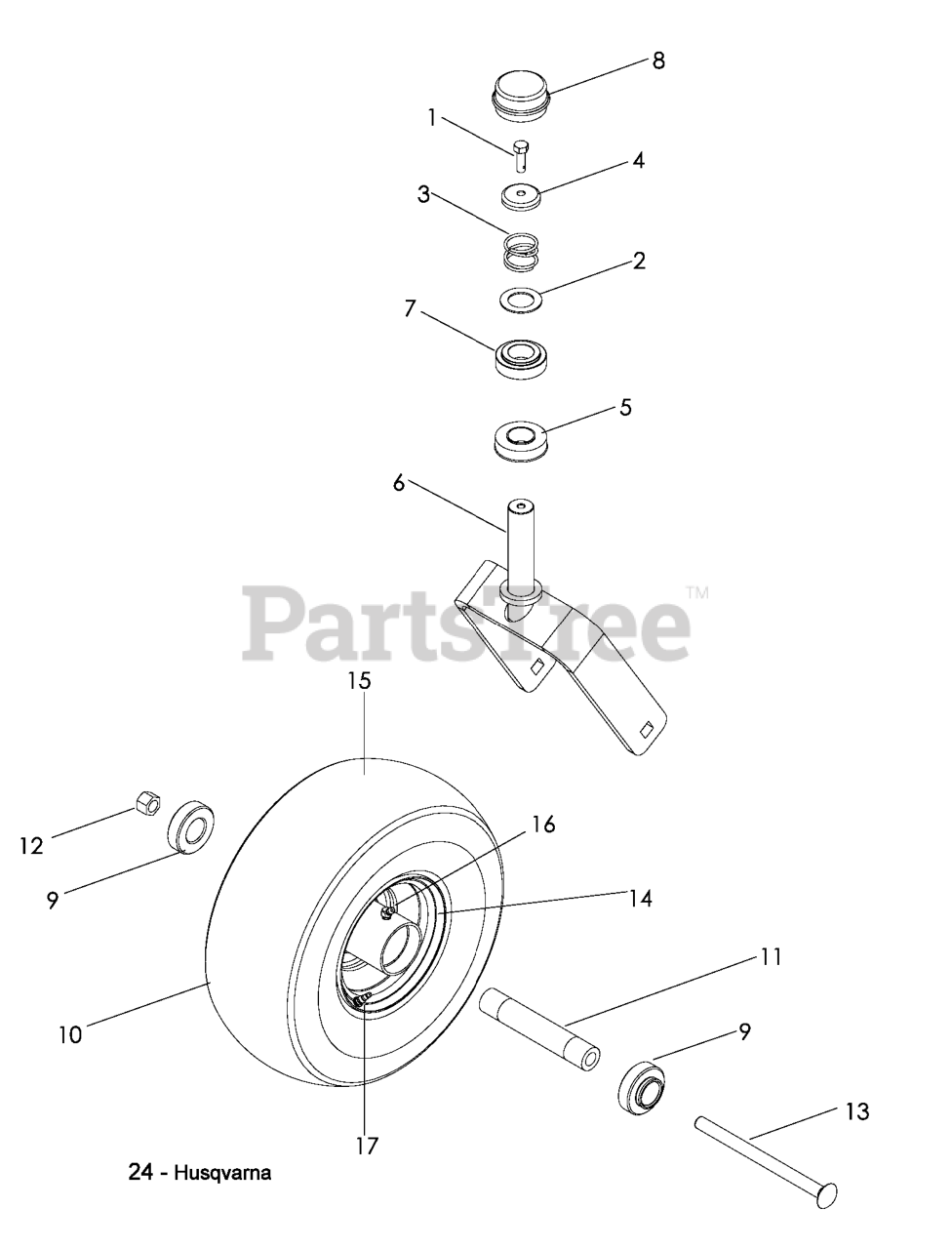

Casters Parts Diagram

  • Title

1

Husqvarna 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

2

Husqvarna 539115675

WASHER, 1.025 ID X 1.64
(Superseded to 596319801)

$3.49

$

In Stock, only 2 left!

0

3

Husqvarna 539115747

SPRING, CASTER
(Superseded to 596388901)

$3.49

$

In Stock, only 2 left!

0

4

Husqvarna 539115749

CASTER.PLUG
(Superseded to 596301001)

$3.49

$

In Stock, only 2 left!

0

5

Husqvarna 539115750

BEARING
(Superseded to 539112660)

$22.99

$

In Stock, only 2 left!

0

6

Husqvarna 522025701

SUB ASSY, CASTER, ORANGE

$

$

Not available

7

Husqvarna 539117901

BUSHING, CASTER

$11.99

$

In Stock, Qty 20+

0

8

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

In Stock, Qty 20+

0

9

Husqvarna 539119759

BEARING-ECC LOCK
(Superseded to 539115279)

$35.99

$

In Stock, only 1 left!

0

10

Husqvarna 539119898

13-5 X 6 TIRE ASM.-SM

$

$

Not available

11

Husqvarna 539119904

TUBE

$

$

Not available

12

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 539121749

1/2-13 X 7 CARR. BOLT

$

$

Not available

14

Husqvarna 539121219

WHEEL (REF.13985)
(Superseded to 539119898)

$

$

Not available

15

Husqvarna 539121220

TIRE (REF.13985)
(Superseded to 539119898)

$

$

Not available

16

Husqvarna 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 16

0
