EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) Chassis / Frame Parts Diagram

34" Zero-Turn Mower

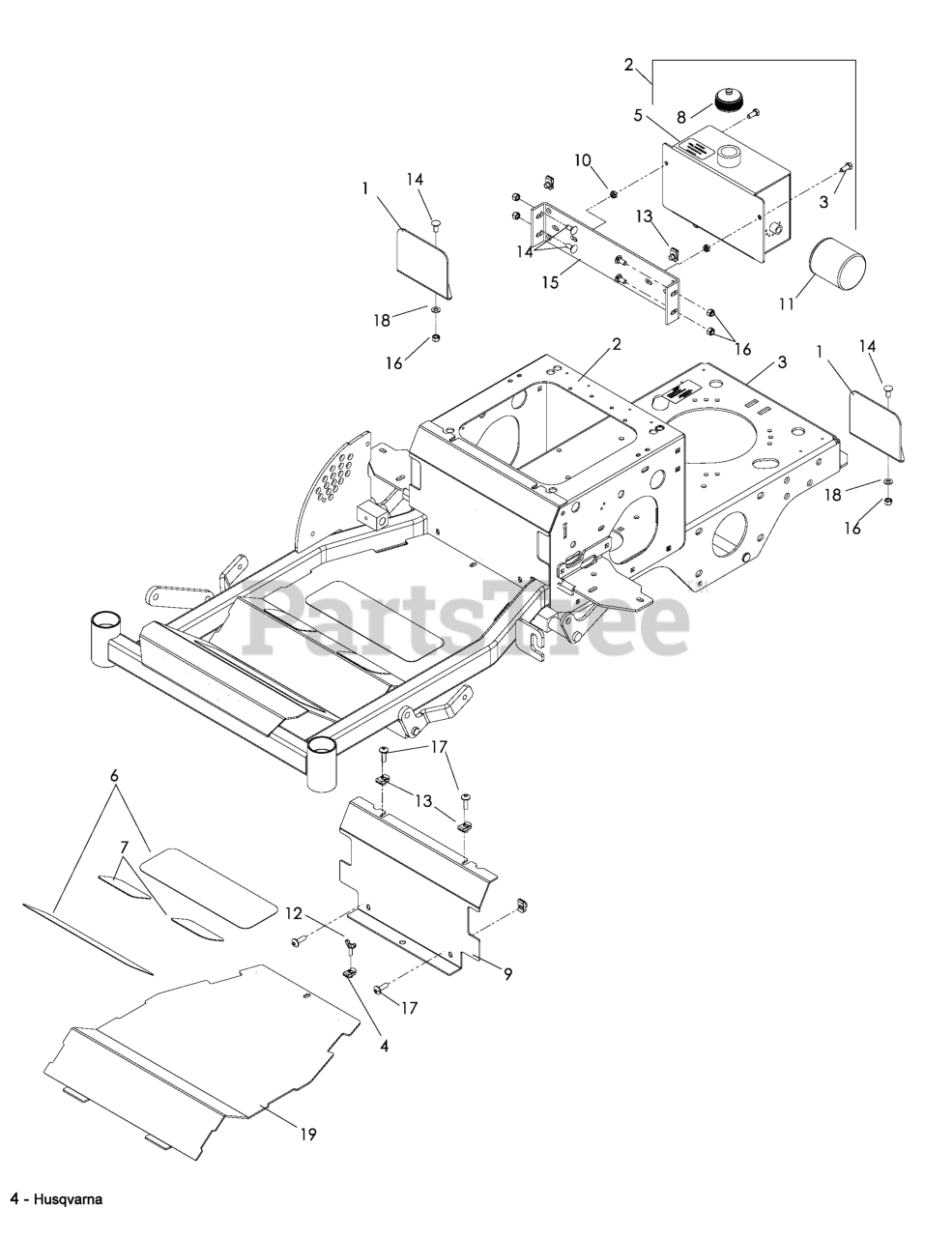

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 539121506

BRKT, HEADLIGHT PLUG, BLK

$

$

Not available

2

Husqvarna 539121767

TANK ASM W/FILTER & CAP

$

$

Not available

3

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 539110813

1/4C - U TYPE RETAINER

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539114832

DECAL, OIL TANK

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539977778

ANTI-SKID PAD

$4.99

$

In Stock, Qty 11

0

7

Husqvarna 539107958

FOOT PAD

$

$

Not available

8

Husqvarna 539101202

HYDRAULIC CAP

$22.99

$

In Stock, Qty 5

0

9

Husqvarna 521996901

PANEL, FRONT, ORANGE

$

$

Not available

10

Husqvarna 539115617

5/16-18 THIN PROF NY
(Superseded to 596433601)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539121763

25 MICRON FILTER

$

$

Not available

12

Husqvarna 539118691

1/4-20 X 3/4 WING BOLT

$

$

Not available

13

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 521997701

MOUNT, CHNL HYD TANK, ORANGE

$

$

Not available

16

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539117399

5/16-18X1 FLANGED SCREW

$

$

Not available

18

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 522420801

PLATE, FOOT W/DECALS

$

$

Not available
