EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) Drive Parts Diagram

34" Zero-Turn Mower

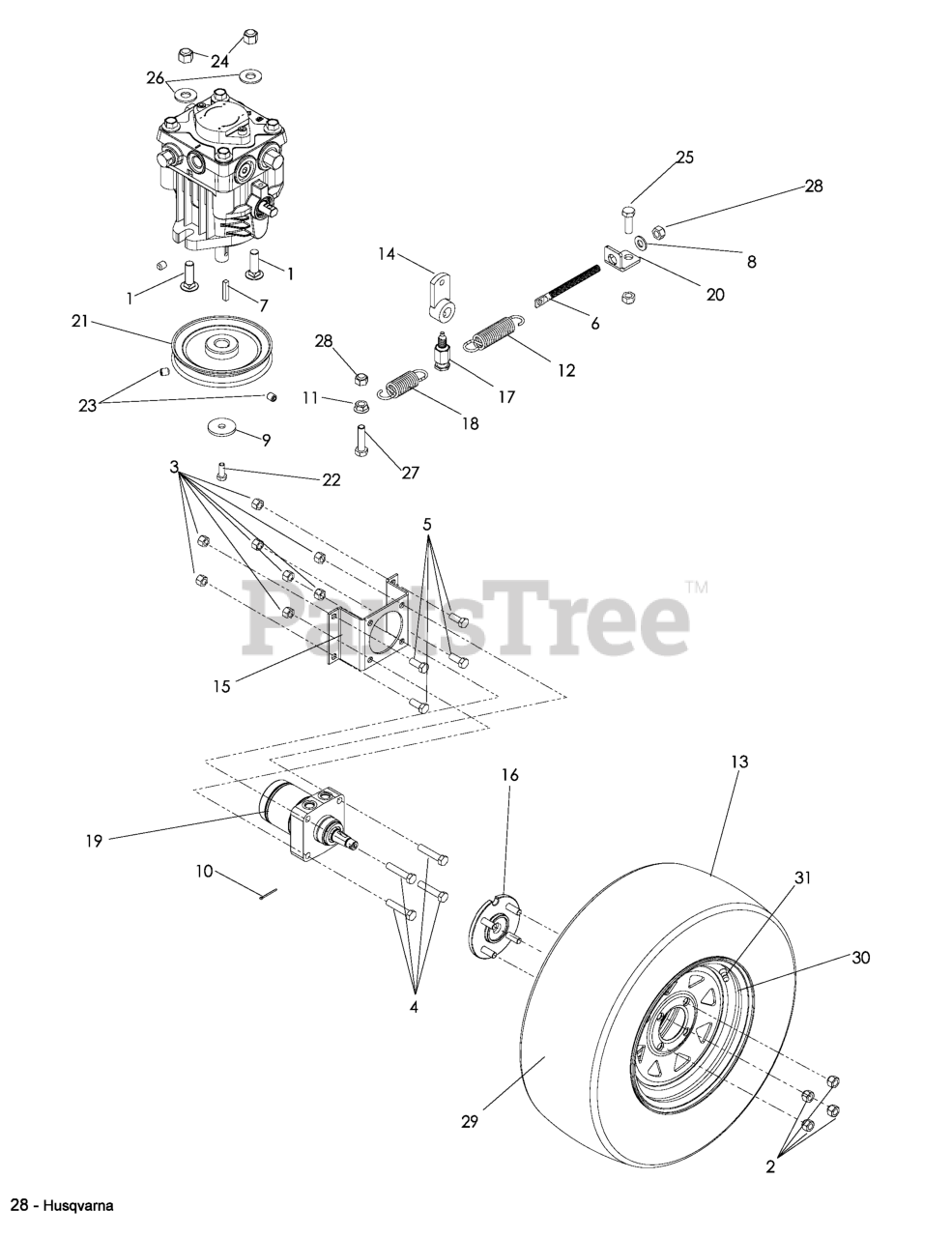

Drive Parts Diagram

  • Title

1

Husqvarna 539100413

RHSNB 3/8-16 X 1-1/4

$

$

Not available

2

Husqvarna 539101173

LUG NUT 1/2F
(Superseded to 587653903)

$4.99

$

In Stock, Qty 15

0

3

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539108369

HCS 1/2-13 X 1-1/4

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 539115370

BRAKE ROD

$

$

Not available

7

Husqvarna 539115451

KEY-3/16 X 1

$

$

Not available

8

Husqvarna 539115533

5/16STD FL WASH TYPA
(Superseded to 596204101)

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 539115582

5/16ID X 1/8THK WASHER

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539115671

1/8DIAX1-1/2 COT PIN
(Superseded to 539990297)

$

$

Not available

11

Husqvarna 539115674

5/16-18 FLANGED L-NUT

$

$

Not available

12

Husqvarna 539116350

SPRING - 3.50

$10.99

$

In Stock, Qty 10

0

13

Husqvarna 539117783

TIRE ASM 23X8.5-12

$

$

Not available

14

Husqvarna 539117816

CONTROL ARM DRILLED

$

$

Not available

15

Husqvarna 539132808

MOUNT, MOTOR BLK

$

$

Not available

16

Husqvarna 539101109

HUB.WHEEL.ZTR

$

$

Not available

17

Husqvarna 539117961

SET SCREW

$

$

Not available

18

Husqvarna 539117962

SPRING

$

$

Not available

19

Husqvarna 539121770

WHEEL MOTOR

$

$

Not available

20

Husqvarna 539121859

SPRING BRKT.

$

$

Not available

21

Husqvarna 539121895

PULLEY

$

$

Not available

22

Husqvarna 539127945

CAPSCREW HH 6MM X 16MM
(Superseded to 539107705)

$

$

Not available

23

Husqvarna 539976956

SET SCREW 5/16 NYLOC

$

$

Not available

24

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.49

$

In Stock, Qty 19

0

26

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 539117808

TIRE-REAR 23X8.5-12
(Superseded to 522905001)

$376.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539117807

RIM 12 X 7
(Superseded to 539117783)

$

$

Not available

31

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 16

0
