EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) Drive Parts Diagram

34" Zero-Turn Mower

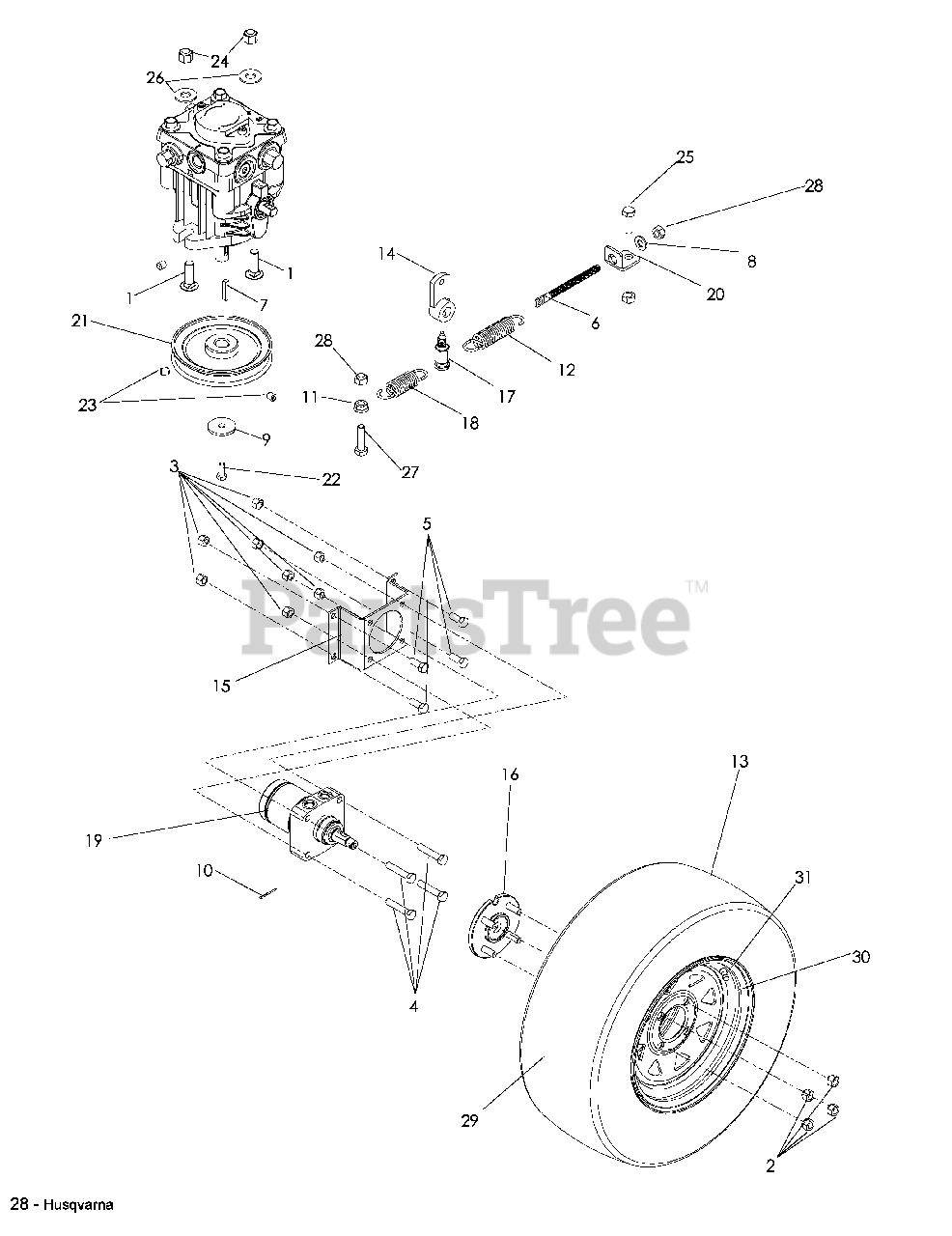

Drive Parts Diagram

  • Title

1

Husqvarna 539100413

RHSB 3/8-16 x 1¼

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101173

NUT ½-20 UNF LUG

$

$

Not available

3

Husqvarna 539101331

NUT½-13 NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 539108346

HHB ½-13 x 2½

$3.99

$

In Stock, only 1 left!

0

5

Husqvarna 539108369

HHB ½-13 x 1¼

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539115370

BRAKE ROD

$46.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539115451

KEY, 3/16 x 1

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539115533

WASHER 5/16 TYPE A
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539115582

WASHER 5/16 ID x 1/8 OD

$3.99

$

In Stock, only 2 left!

0

10

Husqvarna 539115671

COTTER PIN, 3/32 x 1 LG
(Superseded to 539990297)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539115674

NUT 5/16-18 HEX FLANGE

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539116350

SPRING

$6.49

$

In Stock, Qty 7

0

13

Husqvarna 539117783

TIRE COMPLETE 23 x 8.5-12

$188.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539117816

CONTROL ARM, DRILLED

$36.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539132808

MOUNT, MOTOR

$

$

Not available

16

Husqvarna 539101109

WHEEL HUB

$

$

Not available

17

Husqvarna 539117961

SCREW W/HEX HEAD SET

$51.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539117962

SPRING

$

$

Not available

19

Husqvarna 539121770

MOTOR, PARKER

$728.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539121859

SPRING MOUNT

$12.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539121895

PULLEY

$

$

Not available

22

Husqvarna 539127945

BOLT M6 x 1 x 16MM
(Superseded to 539107705)

$

$

Not available

23

Husqvarna 539976956

SCREW 5/16-18 x .38 SET

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539990209

HHB 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539990517

WASHER 3/8

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990627

HHB 5/16-18 x 1¼

$4.99

$

In Stock, Qty 10

0

28

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539117808

TIRE
(Superseded to 539107432)

$399.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539117807

RIM, 12 x 7
(Superseded to 539117783)

$188.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539912234

VALVE STEM

$6.49

$

In Stock, Qty 20+

0
