EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) Electrical Parts Diagram

34" Zero-Turn Mower

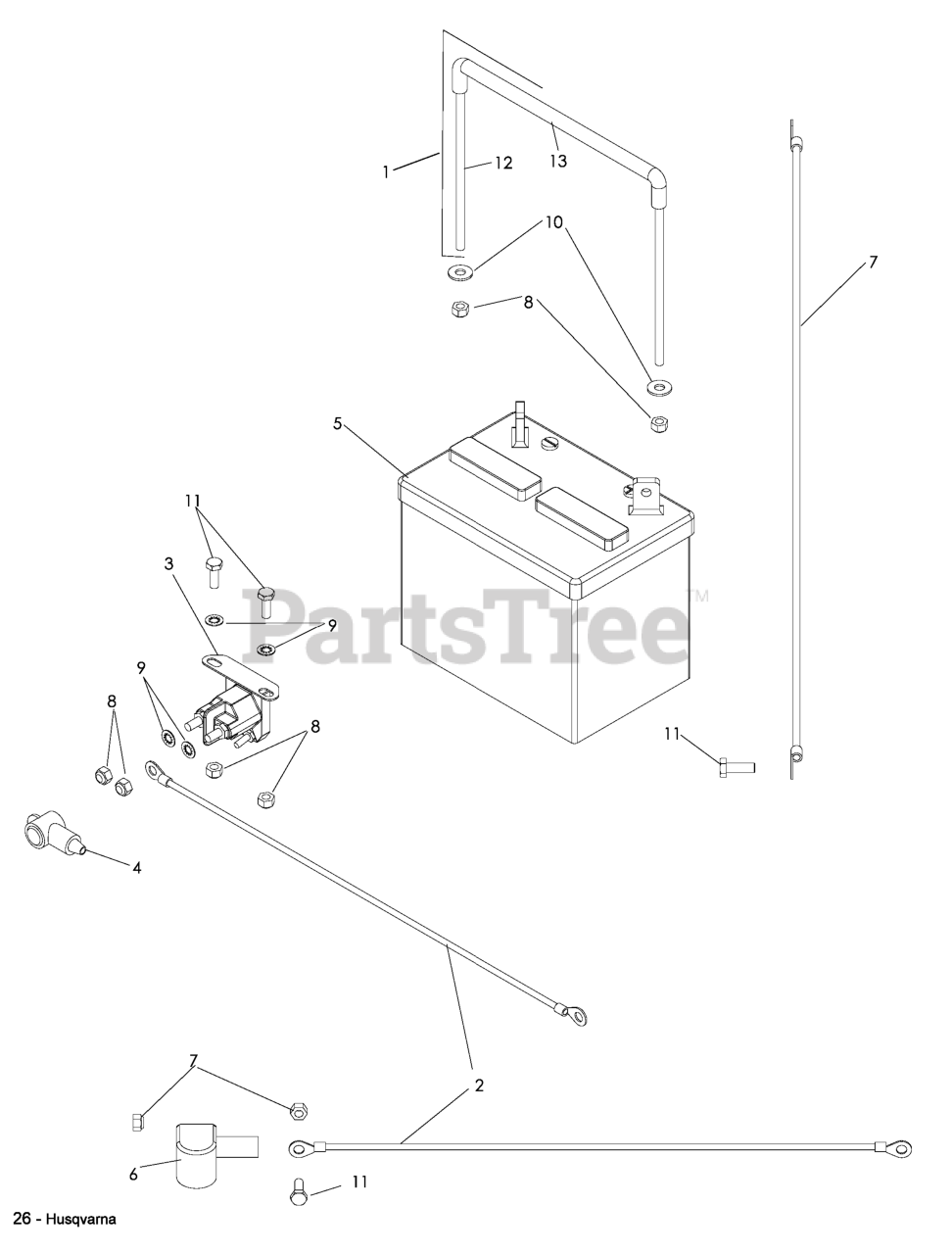

Electrical Parts Diagram

  • Title

1

Husqvarna 539115292

TIE DOWN W/INSULATOR

$

$

Not available

2

Husqvarna 539115364

SOL. TO STARTER CABLE

$

$

Not available

3

Husqvarna 539115774

SOLENOID

$

$

Not available

4

Husqvarna 539116400

TERMINAL COVER-SM

$

$

Not available

5

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

6

Husqvarna 539121331

TERMINAL COVER

$

$

Not available

7

Husqvarna 539122754

BATTERY CABLE, NEG

$

$

Not available

8

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

9

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 539990598

WASHER 1/4 FLAT
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990580

HCS 1/4C X 3/4 HCS
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539115290

BATTERY TIE DOWN

$

$

Not available

13

Husqvarna 539115291

TIE DOWN INSULATOR

$

$

Not available

Husqvarna 539117964

WIRE LOOM B/B

Note: NOTSHOWN

$

$

Not available
