EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) Engine Parts Diagram

34" Zero-Turn Mower

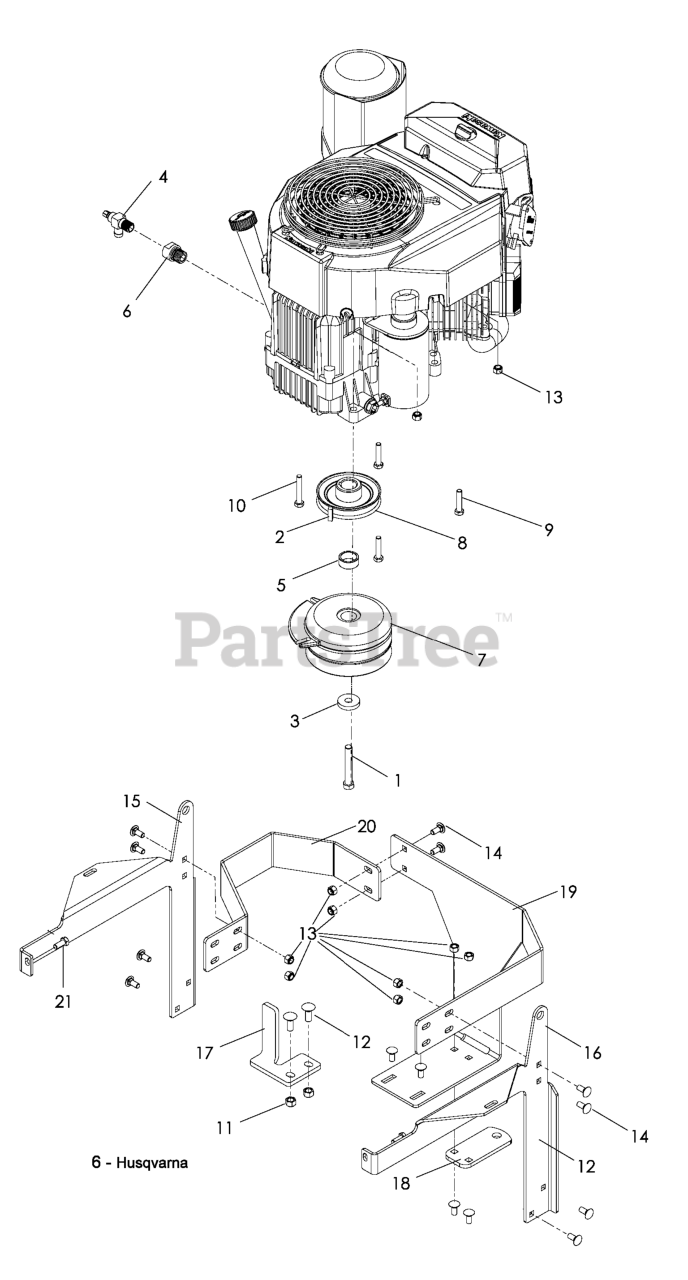

Engine Parts Diagram

  • Title

1

Husqvarna 539110065

HCS 7/16-20 X 2-3/4

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539115387

KEY - 1/4 X .88

$

$

Not available

3

Husqvarna 539115546

WASHER .43X1.38X.25

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539118893

OIL DRAIN

$

$

Not available

5

Husqvarna 539119489

HUB BEARING SPACER

$

$

Not available

6

Husqvarna 539119680

ADAPTER, OIL DRAIN

$26.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539120786

CLUTCH

$

$

Not available

8

Husqvarna 539121308

DRIVE PULLEY-ENGINE

$

$

Not available

9

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD
(Superseded to 596582201)

$3.49

$

In Stock, Qty 6

0

10

Husqvarna 539976937

HCS 5/16-18X2

$3.49

$

In Stock, only 1 left!

0

11

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 522025801

BRACKET, TANK RT, ORANGE

$

$

Not available

16

Husqvarna 522025901

BRACKET, TANK LT, ORANGE

$

$

Not available

17

Husqvarna 522028601

ANCHOR, CLUTCH, ORANGE

$

$

Not available

18

Husqvarna 539132822

HITCH, BLACK

$

$

Not available

19

Husqvarna 539132824

GUARD, REAR, BLACK

$

$

Not available

20

Husqvarna 539132825

GUARD, VERT. MUFFLER, BLK

$

$

Not available

21

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0
