EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) Mower Lift / Deck Lift Parts Diagram

34" Zero-Turn Mower

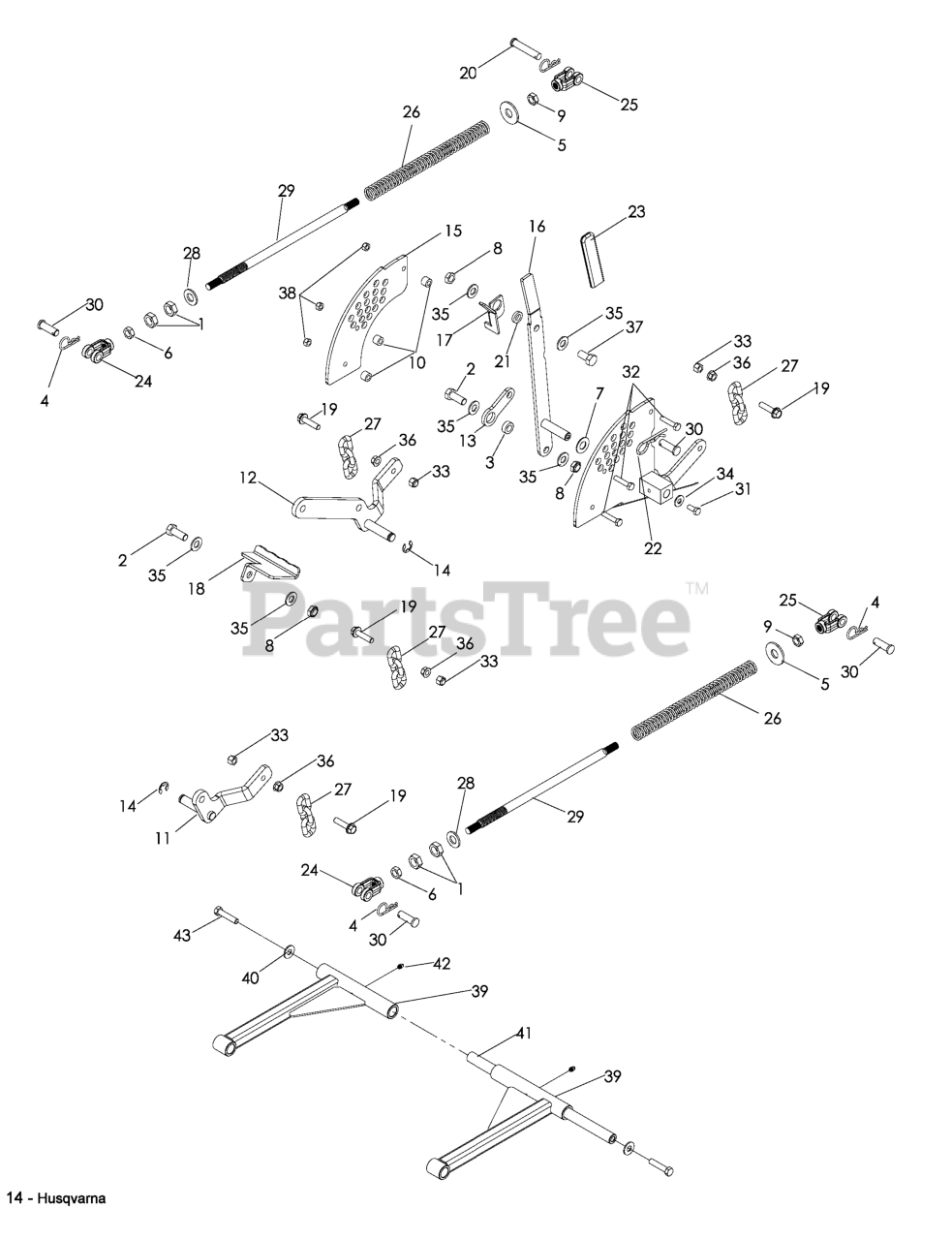

Mower Lift / Deck Lift Parts Diagram

  • Title

1

Husqvarna 539100476

NUT JAM 5/8-11 HEX

$

$

Not available

2

Husqvarna 539108369

HCS 1/2-13 X 1-1/4

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539115359

BLADE ADAPTOR

$

$

Not available

4

Husqvarna 539115501

PIN, COTTER 1 3/4

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539102653

WASHER, 5/8 FLAT
(Superseded to 594946401)

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539108736

NUT 1/2-20 HEX JAM ZD

$

$

Not available

7

Husqvarna 539115565

WASHER 5/8IDX.063 TK

$

$

Not available

8

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 539115769

1/2-20 LH HEX JAM NUT

$

$

Not available

10

Husqvarna 539116039

SPACER

$

$

Not available

11

Husqvarna 522420501

ARM LIFT LH ORANGE

$

$

Not available

12

Husqvarna 522420301

ARM, LIFT RH ORANGE

$

$

Not available

13

Husqvarna 539132810

LINK, LIFT HANDLE, RED

$

$

Not available

14

Husqvarna 539117898

RETAINING RING 5/8

$

$

Not available

15

Husqvarna 539117903

OUTER QUADRANT(PLATED)

$

$

Not available

16

Husqvarna 521998301

HANDLE, LIFT, ORANGE

$

$

Not available

17

Husqvarna 521998201

LATCH, LIFT, ORANGE

$

$

Not available

18

Husqvarna 521998601

PEDAL, FOOT, ORANGE

$

$

Not available

19

Husqvarna 539118165

3/8-16 X 1.5 FLG HHB

$

$

Not available

20

Husqvarna 539118783

CLEVIS PIN 2-1/2

$

$

Not available

21

Husqvarna 539119012

SPACER

$

$

Not available

22

Husqvarna 539120259

5/32 X 3.0 HAIR PIN COTT

$

$

Not available

23

Husqvarna 539120921

GRIP BRAKE HANDLE

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539121309

CLEVIS FEMALE-RH

$

$

Not available

25

Husqvarna 539121321

CLEVIS FEMALE-LH

$

$

Not available

26

Husqvarna 539121329

LIFT SPRING

$

$

Not available

27

Husqvarna 539121333

CHAIN

$

$

Not available

28

Husqvarna 539121338

WASHER PLATED
(Superseded to 539976982)

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539121557

TIE BAR

$

$

Not available

30

Husqvarna 539122627

CLEVIS PIN 1/2X1-1/2` L

$

$

Not available

31

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD
(Superseded to 596582201)

$3.49

$

In Stock, Qty 6

0

33

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 539990250

WASHER 1/2" FLAT
(Superseded to 595086801)

$3.49

$

In Stock, Qty 19

0

36

Husqvarna 539990613

NUT 3/8C WHIZ
(Superseded to 596583501)

$3.49

$

In Stock, Qty 12

0

37

Husqvarna 539990646

HHCS 1/2-13 X 1
(Superseded to 596583601)

$3.49

$

In Stock, only 1 left!

0

38

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 521998001

ARM, TRAILING, ORANGE

$

$

Not available

40

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 539117852

SPACER FRAME

$

$

Not available

42

Husqvarna 539118928

GREASE ZERK-1/4"

$

$

Not available

43

Husqvarna 539122697

CAPSCREW HX3/8-24X1-3/4

$

$

Not available
