EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) Parking Brake Parts Diagram

34" Zero-Turn Mower

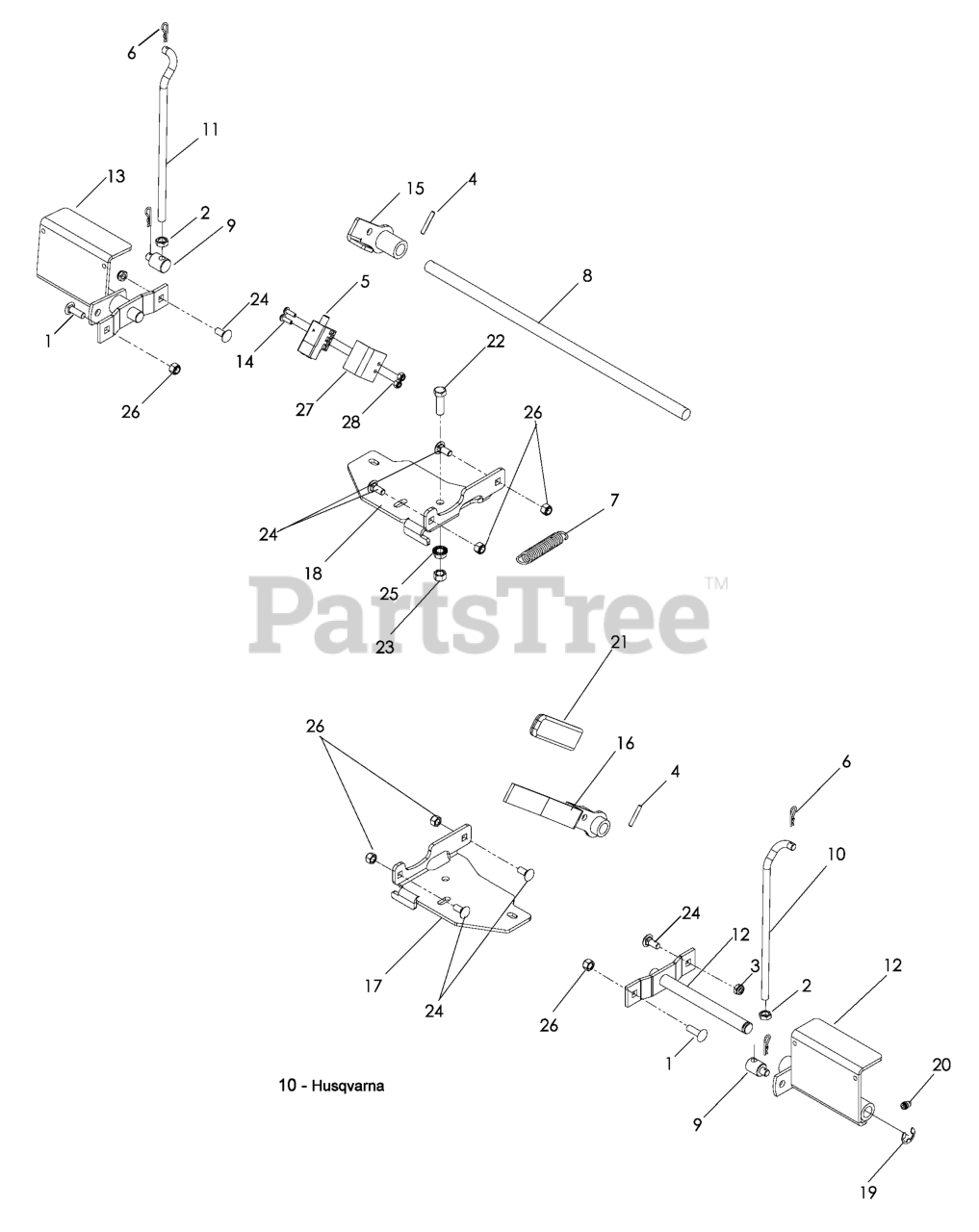

Parking Brake Parts Diagram

  • Title

1

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.49

$

In Stock, Qty 6

0

3

Husqvarna 539115617

5/16-18 THIN PROF NY
(Superseded to 596433601)

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539115668

ROLL PIN 3/16 X 1-1/4

$

$

Not available

5

Husqvarna 539121861

BRAKE SWITCH

$

$

Not available

6

Husqvarna 539115680

COTTER HP .08 DIA X 1.19

$

$

Not available

7

Husqvarna 539116350

SPRING - 3.50

$10.99

$

In Stock, Qty 10

0

8

Husqvarna 539117477

SHAFT BRAKE

$

$

Not available

9

Husqvarna 539117478

SWIVEL BRAKE

$

$

Not available

10

Husqvarna 539117522

LH BRAKE LINK

$

$

Not available

11

Husqvarna 539117523

RH BRAKE LINK

$13.99

$

In Stock, only 3 left!

0

12

Husqvarna 539114902

L.H. BRAKE SHOE ASM, BLACK

$

$

Not available

13

Husqvarna 539114903

R.H. BRAKE SHOE ASM, BLACK

$

$

Not available

14

Husqvarna 539102617

SCREW, #1--24 X 1/2 SLOTTED

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539117823

BRAKE LINK DRILLED

$

$

Not available

16

Husqvarna 539117824

BRAKE HANDLE DRILLED

$

$

Not available

17

Husqvarna 521997801

MOUNT, BKT TANK LT, ORANGE

$

$

Not available

18

Husqvarna 521997901

MOUNT, BKT TANK RT ORANGE

$

$

Not available

19

Husqvarna 539117898

RETAINING RING 5/8

$

$

Not available

20

Husqvarna 539118928

GREASE ZERK-1/4"

$

$

Not available

21

Husqvarna 539120921

GRIP BRAKE HANDLE

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539990613

NUT 3/8C WHIZ
(Superseded to 596583501)

$3.49

$

In Stock, Qty 12

0

26

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 539117851

MT. SWITCH

$

$

Not available

28

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0
