EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) Seat Parts Diagram

34" Zero-Turn Mower

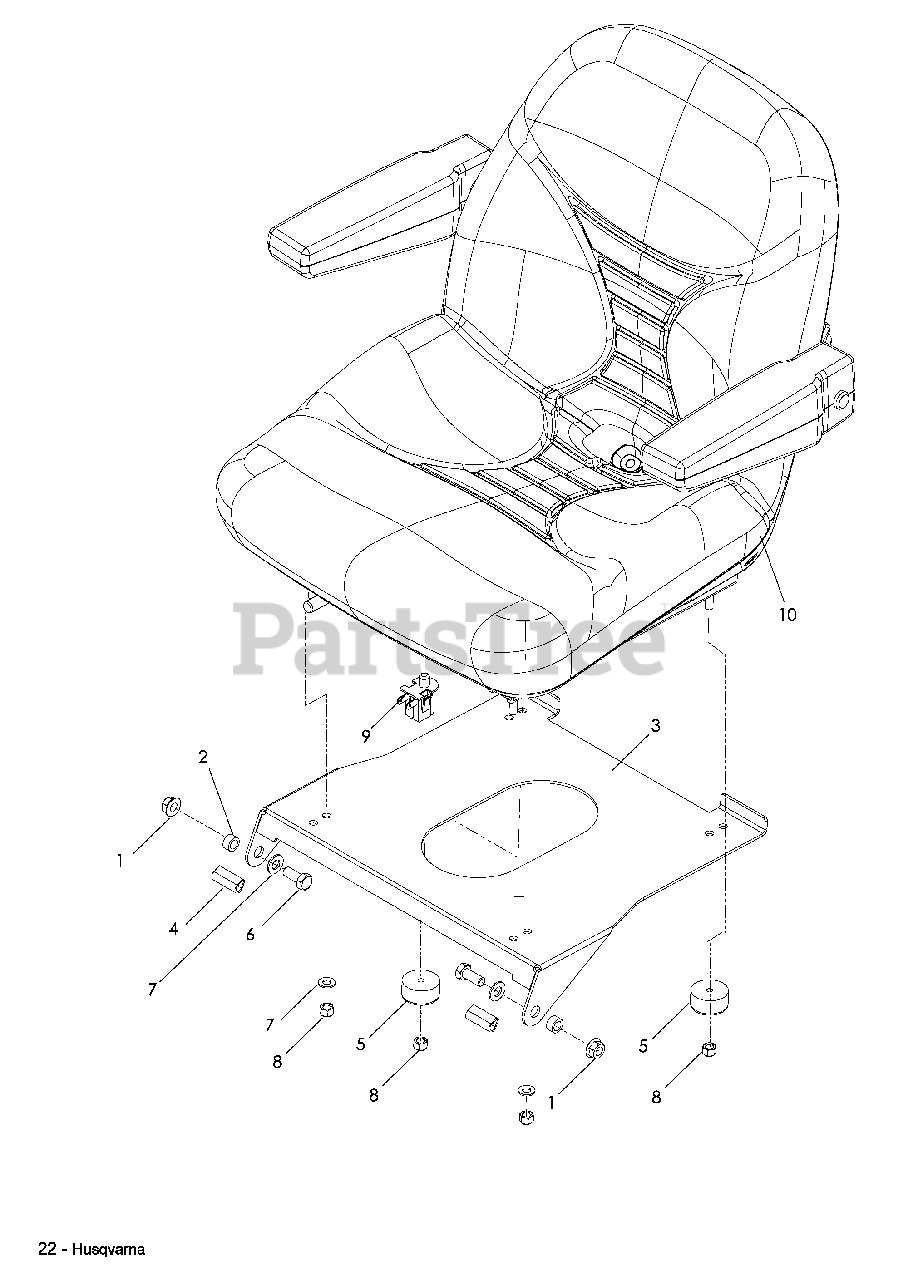

Seat Parts Diagram

  • Title

1

Husqvarna 539115674

NUT 5/16-18 FLANGE

$

$

Not available

2

Husqvarna 539116091

SPACER

$

$

Not available

3

Husqvarna 521997601

SEAT PLATE

$

$

Not available

4

Husqvarna 539118102

CLIP

$

$

Not available

5

Husqvarna 539119102

ISO MOUNT 1½ x ¾

$

$

Not available

6

Husqvarna 539976934

HHB 5/16-18 x ¾
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 539990188

WASHER 5/16
(Superseded to 819111116)

$3.49

$

In Stock, Qty 19

0

8

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$17.99

$

In Stock, Qty 12

0

10

Husqvarna 539130873

SEAT
(Superseded to 501580402)

$968.99

$

Usually ships in 3-10 days

0
