EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) Steering Parts Diagram

34" Zero-Turn Mower

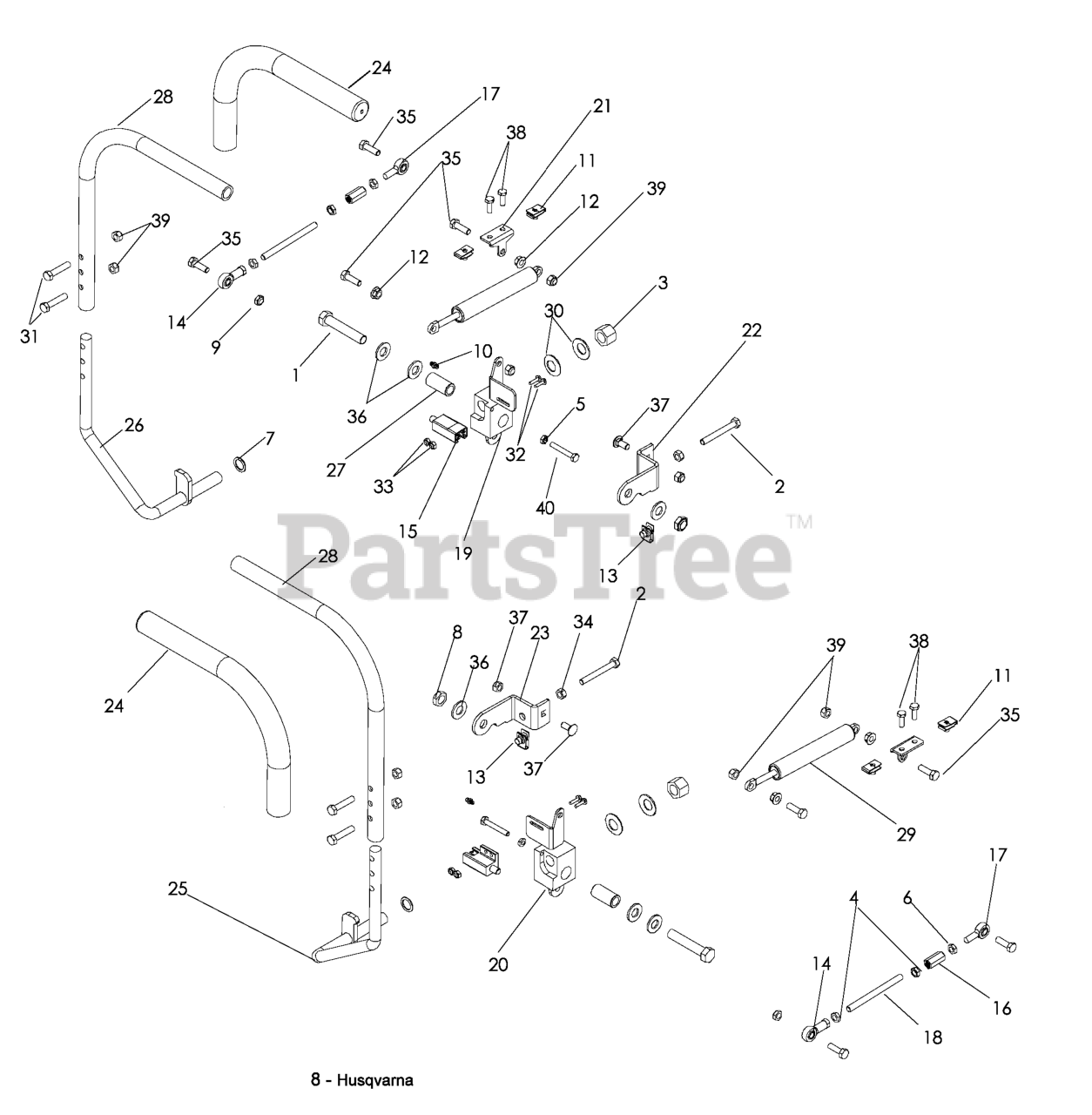

Steering Parts Diagram

  • Title

1

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 2 left!

0

2

Husqvarna 539108396

HCS 5/16-18 X 2 1/2 TPBLT
(Superseded to 596437101)

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539110340

NUT 5/8-11 NYLOC
(Superseded to 594977001)

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539115502

NUT 5/16-24 UNF HEX JAM

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539991112

NUT 1/4-20 JAM
(Superseded to 597357701)

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 539991073

NUT 5/16F LEFTHAND
(Superseded to 596584101)

$3.49

$

In Stock, only 1 left!

0

7

Husqvarna 539115570

WASHER-.626IDX.056TK

$

$

Not available

8

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 539115617

5/16-18 THIN PROF NY
(Superseded to 596433601)

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 539110813

1/4C - U TYPE RETAINER

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539115674

5/16-18 FLANGED L-NUT

$

$

Not available

13

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 539115729

RH ROD END
(Superseded to 579764601)

$10.99

$

In Stock, Qty 12

0

15

Husqvarna 539101080

SWITCH, INTERLOCK

$20.99

$

In Stock, Qty 20+

0

16

Husqvarna 539116689

ROD END COUPLER
(Superseded to 596718601)

$3.49

$

In Stock, Qty 15

0

17

Husqvarna 539116690

RP.ROD.END.LH
(Superseded to 588692502)

$13.99

$

In Stock, Qty 10

0

18

Husqvarna 539117476

ROD

$

$

Not available

19

Husqvarna 539117863

STEER CONTROL (PLATED)RH

$

$

Not available

20

Husqvarna 539117865

STEER CONTROL(PLATED)LH

$

$

Not available

21

Husqvarna 539117900

MT. DAMPNER

$

$

Not available

22

Husqvarna 539117949

FORWARD STOP RH

$45.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539117950

FORWARD STOP LH

$45.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539120899

GRIP

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539120950

LEVER LH (PLATED)

$170.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539120951

LEVER RH (PLATED)

$

$

Not available

27

Husqvarna 539120956

BUSHING

$

$

Not available

28

Husqvarna 539121065

LEVER UPPER

$

$

Not available

29

Husqvarna 539114453

DAMPENER, DUAL ACTION

$56.99

$

In Stock, only 2 left!

0

30

Husqvarna 539911121

WASH 5/8 BEVELED DISC SPRING

$

$

Not available

31

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD
(Superseded to 596582201)

$3.49

$

In Stock, Qty 6

0

32

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 539990196

NUT 5/16C HEX
(Superseded to 596582601)

$3.49

$

In Stock, Qty 12

0

35

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.49

$

In Stock, Qty 19

0

36

Husqvarna 539990250

WASHER 1/2" FLAT
(Superseded to 595086801)

$3.49

$

In Stock, Qty 19

0

37

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 539990580

HCS 1/4C X 3/4 HCS
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

39

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 539991003

BOLT 1/4C X 1 3/4

$3.49

$

Usually ships in 3-10 days

0
