EZT 2042 (2691041-02) - Murray 42" Zero-Turn Mower, 20hp, Canada (2013) Electrical Group Parts Diagram

42" Zero-Turn Mower, 20hp, Canada

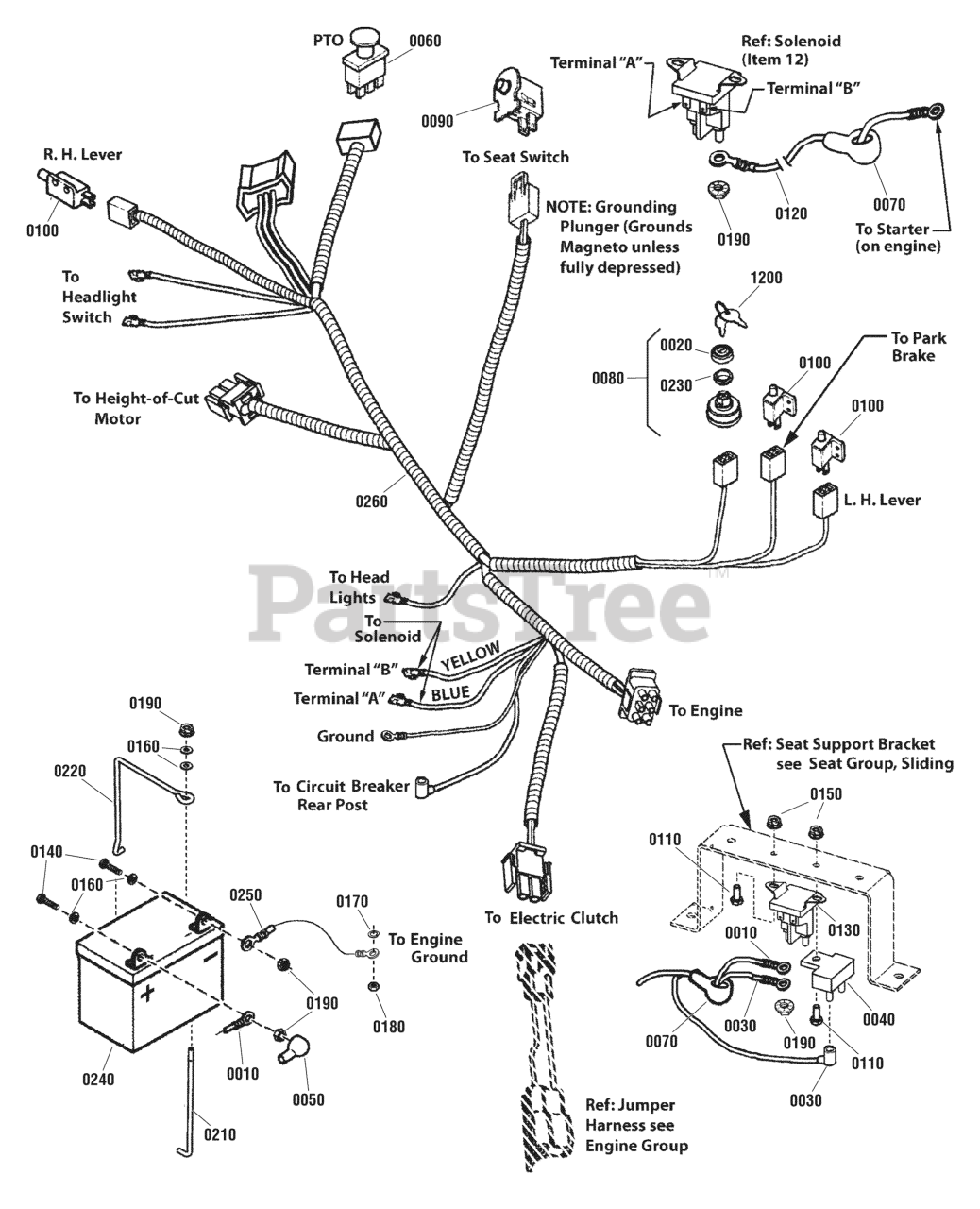

Electrical Group Parts Diagram

  • Title

0010

Murray 024X31MA

CABLE, Battery Positive, 8 Gage, 18", Red

$7.49

$

Usually ships in 2-12 days

0

0020

Murray 091488MA

CAP, Ignition Switch

$4.99

$

In Stock, only 4 left!

0

0030

Murray 1665237SM

WIRE, 12 Gage, 8", Red

$11.99

$

In Stock, only 1 left!

0

0040

Murray 1665238SM

BREAKER, Circuit 12 Volt 20 AMP w/Tab

$14.99

$

In Stock, Qty 11

0

0050

Murray 1677296SM

COVER, Battery Cable, Red

$6.49

$

In Stock, only 2 left!

0

0060

Murray 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

0070

Murray 1724588SM

COVER, Terminal, Red Vinyl

$4.99

$

Usually ships in 2-12 days

0

0080

Murray 1737853YP

SWITCH ASSEMBLY, Ignition

Note: (Includes Ref. Nos. 0020 & 0230)

$35.99

$

In Stock, only 1 left!

0

0090

Murray 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

0100

Murray 7023355YP

SWITCH, DPDT (NC/NO)
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 12

0

0110

Murray 7090072SM

CAPSCREW, Hex Head, 1/4-20 x 5/8, G5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

0120

Murray 7042956SM

CABLE, Starter, 8 Gage, 14", Black
(Superseded to 7028027YP)

$10.99

$

In Stock, only 2 left!

0

0130

Murray 7075622SM

SOLENOID, Super Trombetta, 2 Terminal
(Superseded to 1755382YP)

$29.99

$

In Stock, Qty 8

0

0140

Murray 7090072SM

CAPSCREW, Hex Head, 1/4-20 x 5/8, G5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 7090372SM

NUT, Hex Nylock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0160

Murray 7091294SM

WASHER, Flat, 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

0170

Murray 7091315SM

WASHER, Spring Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0180

Murray 7091511SM

NUT, Hex, 5/16, G5

$3.49

$

In Stock, Qty 20+

0

0190

Murray 7091584SM

NUT, Hex Flange Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

0210

Murray 7100308SM

HOLD DOWN, Battery

$7.99

$

In Stock, only 1 left!

0

0220

Murray 7100309SM

BRACKET, Battery

$10.99

$

Usually ships in 2-12 days

0

0230

Murray 7100329YP

NUT, E-Start, 5/8-32
(Superseded to 703995)

$5.99

$

Usually ships in 2-12 days

0

0240

BATTERY, 8U1L, 12 Volt, 230 CCA

$

$

Not available

0250

Murray 7100636SM

CABLE, Battery Negative, 8 Gage, 20", Black

$8.99

$

Usually ships in 2-12 days

0

0260

Murray 7103412YP

HARNESS, Wiring, ZT

$103.99

$

Usually ships in 2-12 days

0

1200

Murray 1737836YP

KEYS, Ignition

Note: (set of two, one coated)

$20.99

$

In Stock, only 1 left!

0
