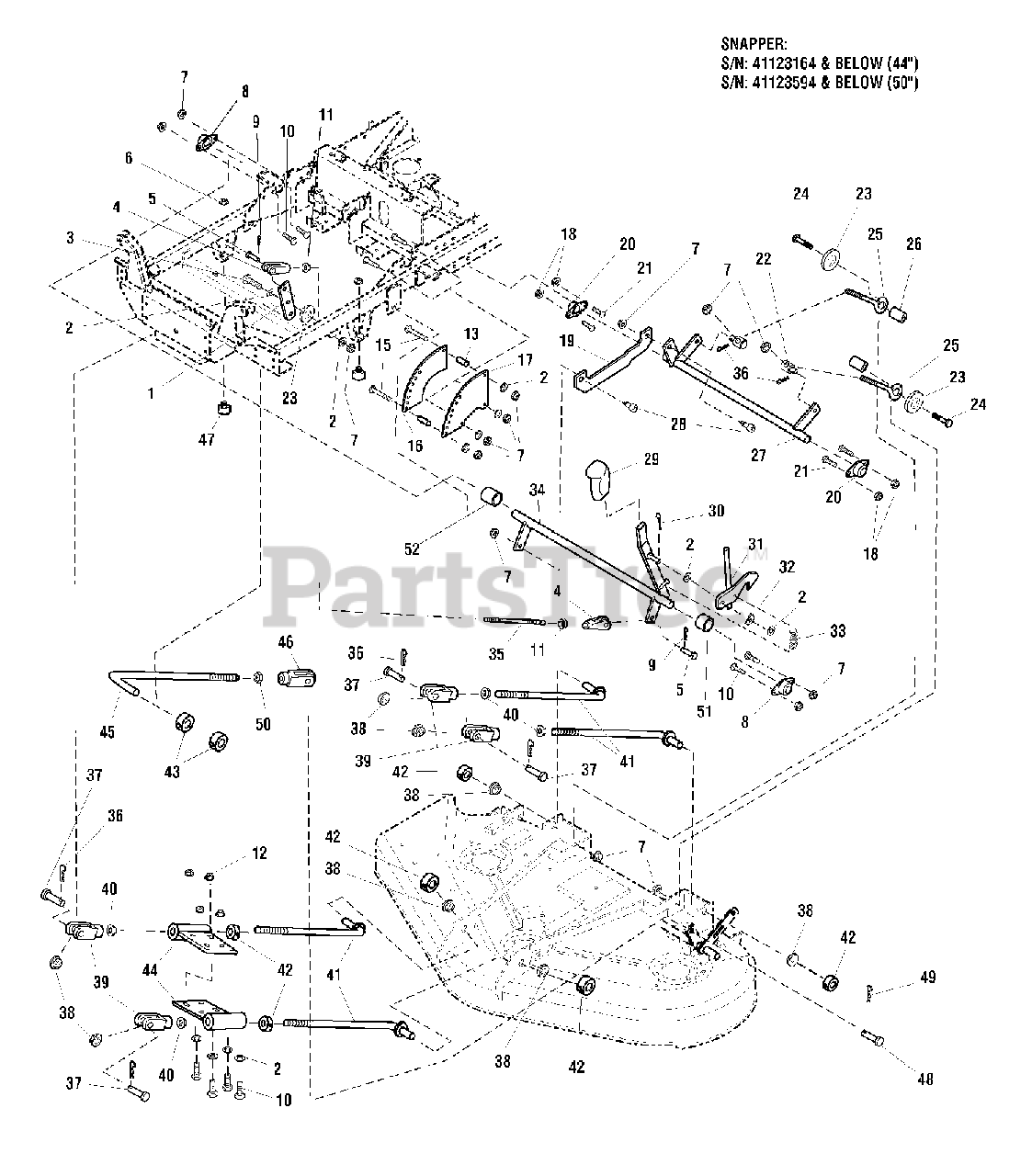

EZT 20500 BV (5091003) - Snapper 50" Zero-Turn Mower, 20hp Deck Lift Group Version 1 Parts Diagram

50" Zero-Turn Mower, 20hp

Deck Lift Group Version 1 Parts Diagram

  • Title

1

* REVERSING LINK

$

$

Not available

2

Snapper 3025156

WASHER, 3/8, SAE
(Superseded to 703590)

Note: (Was 5025156)

$3.99

$

In Stock, Qty 16

0

3

Snapper 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

4

* PLASTIC CLEVIS, 3/8-24

$

$

Not available

5

* PIN, 3/8 DIA X 1"

$

$

Not available

6

Snapper 5025126

HEX NUT, SERRATED FLANGE, 1/4-20
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 5025096

NUT, HEX NYLON LOCK, 3/8-16
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

8

Snapper 5021098

BRONZE FLANGE BEARING, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

9

* COTTER PIN

$

$

Not available

10

Snapper 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

11

* JAM NUT, HEX, 3/8-24

$

$

Not available

12

Snapper 5025128

HEX NUT, SERRATED FLANGE, 3/8-16
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 5048264

SPACER
(Superseded to 5048264SM)

$5.99

$

Usually ships in 2-12 days

0

14

Snapper 5023082

HITCH PIN ASSM, 1/2 X 3.50 (NOT SHOWN)
(Superseded to 5023082SM)

$22.99

$

Usually ships in 2-12 days

0

15

Snapper 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

16

Snapper 5048750D

DECK HEIGHT PLATE, INNER
(Superseded to 5048750DYP)

$38.99

$

Usually ships in 2-12 days

0

17

Snapper 5048744D

DECK HEIGHT PLATE,OUTER
(Superseded to 5048744DYP)

$48.99

$

Usually ships in 2-12 days

0

18

Snapper 7091298

HEX NUT, NYLON LOC, 5/16-18
(Superseded to 703902)

Note: (Was 5025057)

$3.99

$

In Stock, Qty 12

0

19

Snapper 5048733D

DECK LIFT LINK
(Superseded to 5048733DYP)

$20.99

$

Usually ships in 2-12 days

0

20

Snapper 5021098

BRONZE FLANGE BUSHING
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

21

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

22

Snapper 5045947

ADJUSTER, BRAKE LINKAGE
(Superseded to 5045947SM)

$26.99

$

Usually ships in 2-12 days

0

23

Snapper 5025305

WASHER, 1-3/4 OD X .390 ID
(Superseded to 5025305SM)

Note: (Was 5045139009)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 2 left!

0

25

Snapper 5021812

EYE BOLT, 3/8-16
(Superseded to 5021812SM)

$5.99

$

Usually ships in 2-12 days

0

26

Snapper 5047125

SPACER
(Superseded to 5047125SM)

$7.99

$

In Stock, Qty 8

0

27

Snapper 5048711D

REAR DECK LIFT SHAFT
(Superseded to 5048711DYP)

$71.99

$

Usually ships in 2-12 days

0

28

Snapper 5025356

BOLT, 1/2" X 3/8" SHOULDER
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

29

Snapper 5100171

HANDLE COVER
(Superseded to 5100171SM)

Note: (Was 5023198)

$13.99

$

In Stock, only 1 left!

0

30

Snapper 5025202X12

COTTER PIN, 3/16 X 1-1/2
(Superseded to 5025202X12SM)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper 5048884D

DECK LOCK
(Superseded to 5048884DYP)

$22.99

$

Usually ships in 2-12 days

0

32

Snapper 5023202

SPRING WASHER, 3/8
(Superseded to 5023202SM)

$5.49

$

Usually ships in 2-12 days

0

33

Snapper 5020639

EXTENSION SPRING
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

34

Snapper 5048697D

DECK HEIGHT SHAFT
(Superseded to 5048697DYP)

$87.99

$

Usually ships in 2-12 days

0

35

* ROD, 3/8

$

$

Not available

36

Snapper 5025210

HAIRPIN
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

37

Snapper 5025328X12

PIN, CLEVIS, 1/2 X 1-1/2
(Superseded to 5025328X12SM)

$4.99

$

In Stock, only 2 left!

0

38

Snapper 5048258

SUPPORT BUSHING
(Superseded to 5048258SM)

$11.99

$

In Stock, Qty 6

0

39

Snapper 5023174

CLEVIS, 1/2-20
(Superseded to 5023174SM)

$16.99

$

Usually ships in 2-12 days

0

40

Snapper 5025089

HEX JAM NUT, 1/2-20
(Superseded to 5025089SM)

$3.99

$

In Stock, only 2 left!

0

41

Snapper 5049173

DECK HANGER ROD
(Superseded to 5049173SM)

Note: (Was 5048768)

$34.99

$

In Stock, only 1 left!

0

42

Snapper 5023241

SPLIT COLLAR, 1/2"
(Superseded to 5023241SM)

$16.99

$

Usually ships in 2-12 days

0

43

* SPLIT COLLAR, 1/2"

$

$

Not available

44

Snapper 5048902D

DECK STABILIZER
(Superseded to 5048902DYP)

$60.99

$

Usually ships in 2-12 days

0

45

* ROLLER CONNECTING ROD (44" DECK)

$

$

Not available

* ROLLER CONNECTING ROD (50" DECK)

$

$

Not available

46

* CLEVIS, 1/2-20

$

$

Not available

47

Snapper 5022673

RUBBER BUMPER, 1/4-20
(Superseded to 5022673SM)

$18.99

$

Usually ships in 2-12 days

0

48

* PIN, CLEVIS, 1/2 X 1-1/2

$

$

Not available

49

* HAIRPIN

$

$

Not available

50

* HEX JAM NUT, 1/2-20

$

$

Not available

51

Snapper 5046092

SPACER, .76 X 1.00 X .50
(Superseded to 5046092SM)

$5.99

$

In Stock, only 1 left!

0

52

Snapper 5048335

SPACER, .76 X 1.00 X 1.00
(Superseded to 5048335SM)

$7.99

$

Usually ships in 2-12 days

0
