EZT 20500 BV (5091003) - Snapper 50" Zero-Turn Mower, 20hp Hydraulics Group Version 1 Parts Diagram

50" Zero-Turn Mower, 20hp

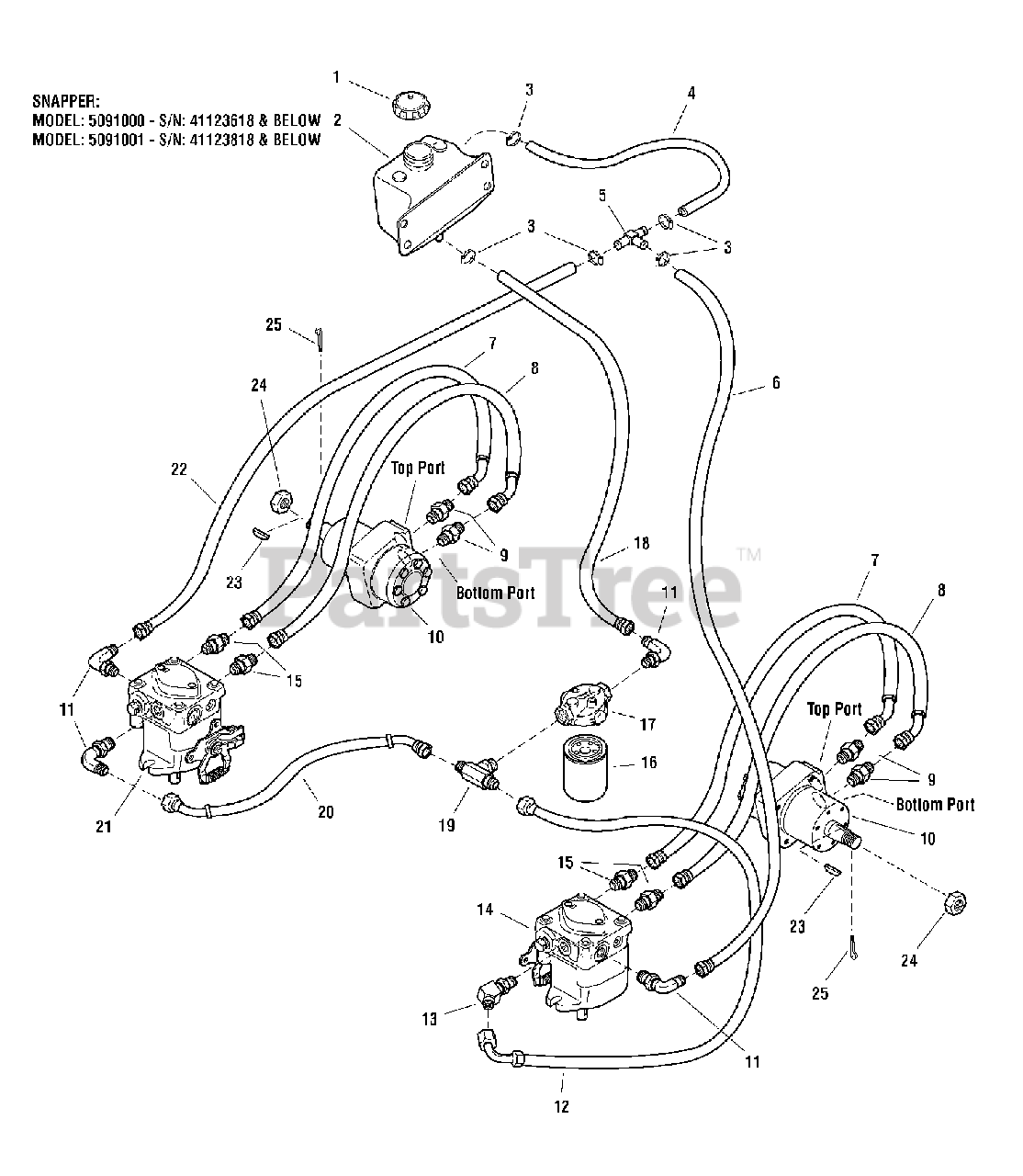

Hydraulics Group Version 1 Parts Diagram

  • Title

1

Snapper 5023191

CAP
(Superseded to 5023191SM)

$28.99

$

In Stock, only 2 left!

0

2

Snapper 5023185

HYDRAULIC TANK
(Superseded to 5061257SM)

$186.99

$

Usually ships in 2-12 days

0

3

Snapper 5021392

CLAMP, #6 HOSE
(Superseded to 5021392SM)

$4.99

$

In Stock, only 2 left!

0

4

Snapper 5050860X8P5

HOSE, 3/8 X 8-1/2" LONG
(Superseded to 5050860X8P5SM)

$7.49

$

Usually ships in 2-12 days

0

5

Snapper 5022920

TEE FITTING
(Superseded to 5022920SM)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 5048998

HOSE ASSEMBLY, 26" LONG
(Superseded to 5048998SM)

$33.99

$

In Stock, only 1 left!

0

7

Snapper 5022710

HOSE ASSEMBLY, HI PRESS, 25-1/2"
(Superseded to 5022710SM)

$131.99

$

In Stock, only 1 left!

0

8

Snapper 5102110

HOSE ASSEMBLY, HI PRESS, 29"
(Superseded to 5102110YP)

$142.99

$

In Stock, only 1 left!

0

9

Snapper 5022634

FITTING, ADAPTER
(Superseded to 5022634SM)

$15.99

$

In Stock, only 2 left!

0

10

Snapper 5023091

WHEEL MOTOR
(Superseded to 5023091SM)

$1071.99

$

Usually ships in 2-12 days

0

11

Snapper 5022712

FITTING, 90 DEG. O-RING
(Superseded to 5022712SM)

$22.99

$

Usually ships in 2-12 days

0

12

Snapper 5048999

HOSE ASSEMBLY, 16-1/2" LONG
(Superseded to 5048999SM)

$50.99

$

Usually ships in 2-12 days

0

13

Snapper 5023087

FITTING, 45 DEG. 0-RING
(Superseded to 5023087SM)

$25.99

$

Usually ships in 2-12 days

0

14

Snapper 5023092

HYDRAULIC PUMP, LH (PG1HQQ DW1X-XXXX)
(Superseded to 5023092SM)

$1538.99

$

Usually ships in 2-12 days

0

15

Snapper 5022633

FITTING, ADAPTER
(Superseded to 5022633SM)

$12.99

$

In Stock, only 2 left!

0

16

Snapper 1719168

FILTER
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 14

0

17

Snapper 5023096

FILTER HEAD
(Superseded to 5023096SM)

$52.99

$

Usually ships in 2-12 days

0

18

Snapper 5049001

HOSE ASSEMBLY, 11-3/4" LONG
(Superseded to 5049001SM)

$19.99

$

Usually ships in 2-12 days

0

19

Snapper 5023161

FITTING, TEE
(Superseded to 5023161SM)

$32.99

$

Usually ships in 2-12 days

0

20

Snapper 5049000

HOSE ASSEMBLY, 4-1/2" LONG
(Superseded to 5049000SM)

$59.99

$

Usually ships in 2-12 days

0

21

Snapper 5023093

HYDRAULIC PUMP, RH (PG1KQQ DW1X-XXXX)
(Superseded to 5023093SM)

$1646.99

$

Usually ships in 2-12 days

0

22

Snapper 5049002

HOSE ASSEMBLY, 6" LONG
(Superseded to 5049002SM)

$15.99

$

Usually ships in 2-12 days

0

23

Snapper 5023091X1

KEY
(Superseded to 5023091X1SM)

$12.99

$

Usually ships in 2-12 days

0

24

Snapper 5023091X2

NUT, CASTLE
(Superseded to 5023091X2SM)

$29.99

$

Usually ships in 2-12 days

0

25

Snapper 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0
