F 150XT (5900565) - Ferris F150XT Series 52" Zero-Turn Mower, 24hp Kawasaki Fuel Tank & Mount Group Parts Diagram

F150XT Series 52" Zero-Turn Mower, 24hp Kawasaki

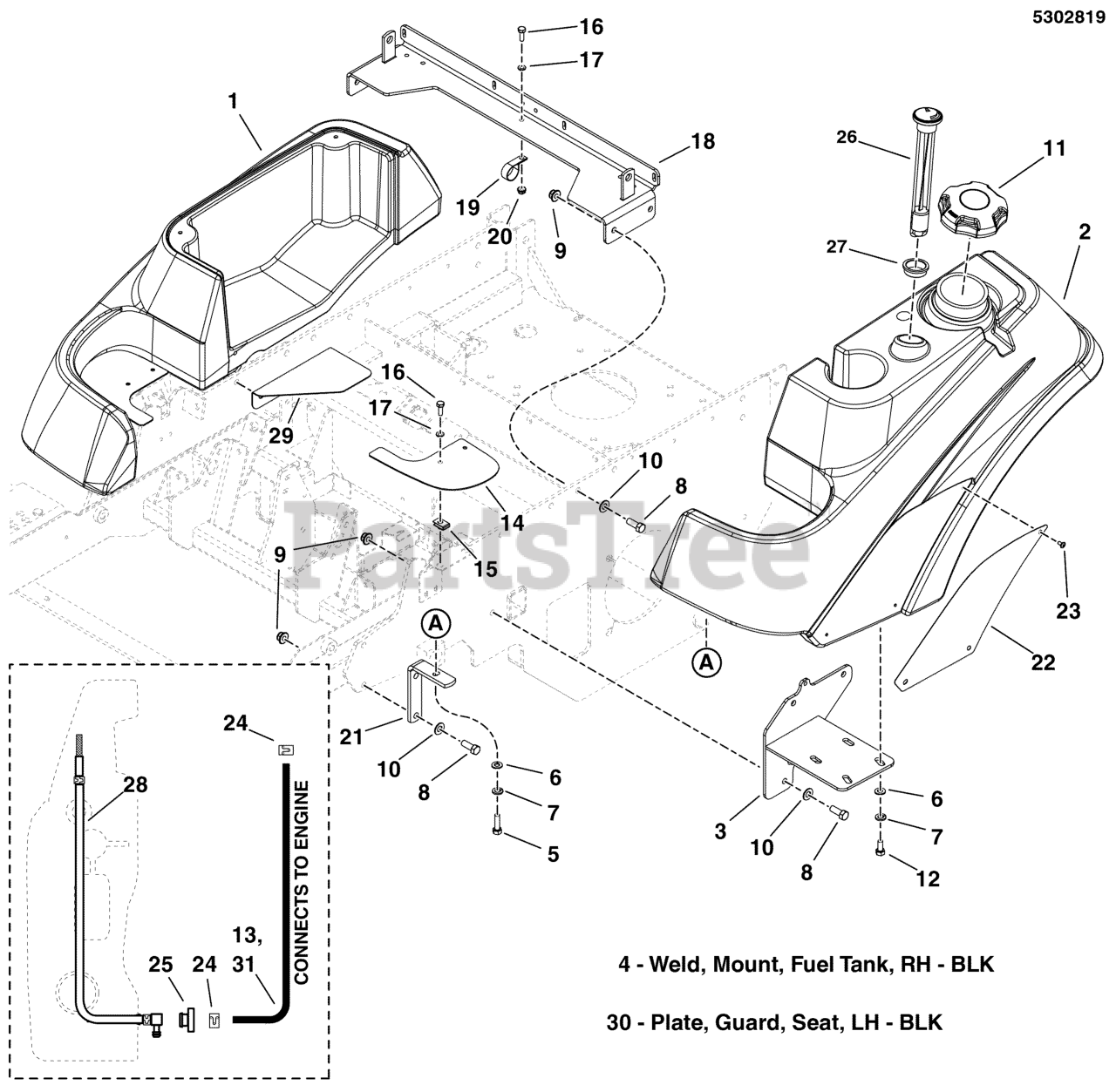

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Ferris 5049948

TANK, FENDER, 1500Z - RH
(Superseded to 5049948SM)

$326.99

$

In Stock, only 1 left!

0

2

Ferris 5103176

TANK, FUEL, LH, 1500Z
(Superseded to 5103176YP)

$584.99

$

Usually ships in 2-12 days

0

3

Ferris 5407906A

WELD, MOUNT, FUEL TANK, LH - BLK

$

$

Currently unavailable

4

Ferris 5407976A

WELD, MOUNT, FUEL TANK, RH -BLK

Note: (Not illustrated)

$

$

Currently unavailable

5

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

6

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

8

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$41.99

$

In Stock, only 1 left!

0

12

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

13

Ferris 5050831X4P5

HOSE, 1/4" FUEL, 4.50"
(Superseded to 5050831X4P5YP)

Note: (Kawasaki Models)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5408312A

GUARD, MASSEY TANK, 3000 - BLK
(Superseded to 5408312AYP)

$10.99

$

Usually ships in 2-12 days

0

15

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

18

Ferris 5407977B

WELD, MOUNT, HYDRO TANK - RED

$

$

Currently unavailable

19

Ferris 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

In Stock, only 2 left!

0

20

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

21

Ferris 5408065A

BAR, TANK MOUNT, FRONT - BLK

$

$

Currently unavailable

22

Ferris 5400250B

PLATE, BADGE - IS1500
(Superseded to 5400250BFS)

$7.49

$

Usually ships in 2-12 days

0

23

Ferris 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

24

Ferris 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

25

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 15

0

26

Ferris 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

27

Ferris 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

$7.49

$

In Stock, Qty 17

0

28

Ferris 5101144

PICKUP TUBE ASM, FUEL TANK

$33.99

$

Usually ships in 2-12 days

0

29

Ferris 5408430A

PLATE, GUARD, SEAT, RH - BLK

$

$

Currently unavailable

30

Ferris 5408431A

PLATE, GUARD, SEAT, LH - BLK

Note: (Not illustrated)

$

$

Currently unavailable

31

Ferris 5050831X30

HOSE, 1/4" FUEL, 30"

Note: (Briggs & Stratton Models)

$

$

Currently unavailable
