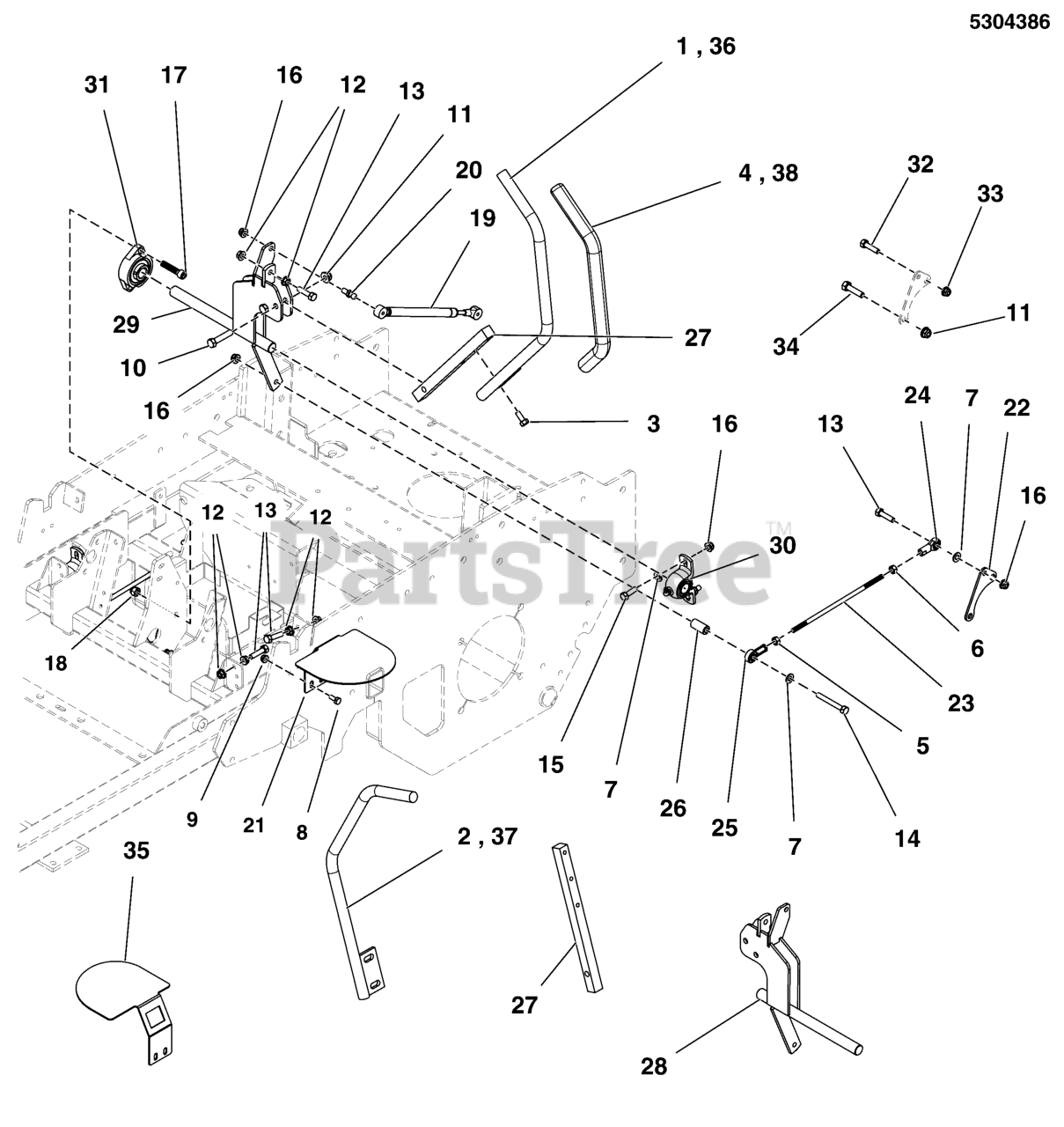

F 160Z (5901516) - Ferris F160Z Series 48" Zero-Turn Mower, 26hp Briggs & Stratton Motion Control Group - S/N: 2017724860 & Below Parts Diagram

F160Z Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

Motion Control Group - S/N: 2017724860 & Below Parts Diagram

  • Title

1

Ferris 5601285

KIT, HANDLE BAR REPLACE, L/R

Note: (S/N: 2017501538 & Below)(Kit includes handles and grips for both sides of the unit.)

$133.99

$

Usually ships in 2-12 days

0

2

Ferris 5601285

KIT, HANDLE BAR REPLACE, L/R

Note: (S/N: 2017501538 & Below)(Kit includes handles and grips for both sides of the unit.)

$133.99

$

Usually ships in 2-12 days

0

3

Ferris 80003531

SCREW, 5/16-18x0.750, GR5, WHIZ-LOCK, ZC
(Superseded to 9357MA)

$5.49

$

In Stock, Qty 9

0

4

Ferris 5022068

GRIP, FOAM, 3/4 ID, 16 LONG
(Superseded to 5022068SM)

Note: (S/N: 2017501538 & Below)

$12.99

$

In Stock, only 1 left!

0

5

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

In Stock, only 3 left!

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

9

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

10

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 18

0

11

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 3 left!

0

13

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0

14

Ferris 5025011X20

BOLT, 5/16-18 X 2-1/2 GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

16

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025478

BOLT, 3/8-16 X 1-3/4, SHCS, YZ
(Superseded to 5025478YP)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 12

0

19

Ferris 5100940

DAMPENER, CONTROL,#(P6709/P3610)
(Superseded to 5100940SM)

$59.99

$

In Stock, only 2 left!

0

20

Ferris 5100941

BALL STUD, 5/16 X .50,# PC-477-2)
(Superseded to 5100941SM)

$4.49

$

In Stock, Qty 12

0

21

Ferris 5414709A

PLATE, MOTION CONTROL SWITCH, F160Z LH - BLK

$14.99

$

Usually ships in 2-12 days

0

22

Ferris 5405230A

PLATE, HYDRO CONNECTOR - BLK

$5.49

$

Usually ships in 2-12 days

0

23

Ferris 5101135

ROD, HYDRO LINKAGE
(Superseded to 5101135YP)

$5.99

$

Usually ships in 2-12 days

0

24

Ferris 5104578

BALL JOINT 5/16-24 RH FEMALE STAMPED STL
(Superseded to 5104578YP)

$12.99

$

In Stock, only 2 left!

0

25

Ferris 5104579

BALL JOINT 5/16-24 LH FEMALE STAMPED STL
(Superseded to 5104579FS)

$10.99

$

In Stock, only 2 left!

0

26

Ferris 5102599

SPACER, .33 X .63 X 1.25, CZ
(Superseded to 5102599YP)

$13.99

$

In Stock, only 1 left!

0

27

Ferris 5103106A

MOUNT, CONTROL ARM - BLK
(Superseded to 5103106AYP)

Note: (10.95" Total Length, 3 Adjustment Holes)

$55.99

$

In Stock, only 1 left!

0

28

Ferris 5411674A

WELD, CONTROL SHAFT, LH - BLK

$136.99

$

Usually ships in 2-12 days

0

29

Ferris 5411675A

WELD, CONTROL SHAFT, RH - BLK

$142.99

$

Usually ships in 2-12 days

0

30

Ferris 5101077

BEARING, 3/4" PILLOW BLOCK
(Superseded to 5101077YP)

$15.99

$

Usually ships in 2-12 days

0

31

Ferris 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$57.99

$

In Stock, only 1 left!

0

32

Ferris 5025015X6

BOLT, 7/16-14 X 3/4, GD5 YZ
(Superseded to 5025015X6SM)

$4.49

$

In Stock, only 1 left!

0

33

Ferris 5025044

NUT, 7/16-14 HEX TOP LOCK
(Superseded to 5025044SM)

$4.49

$

In Stock, only 1 left!

0

34

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

35

Ferris 5414710A

PLATE, MOTION CONTROL SWITCH, F160Z RH - BLK

$16.99

$

Usually ships in 2-12 days

0

36

Ferris 5414429A

WELD,HANDLE MOTION CNTRL,17.0,1.0,LH,BLK
(Superseded to 5414429AA)

Note: (S/N: 2017501539 & Above)

$51.99

$

Usually ships in 2-12 days

0

37

Ferris 5414430A

WELD, HANDLE MOTION CNTRL,17.0,1.0,RH,BLK
(Superseded to 5414430AYP)

Note: (S/N: 2017501539 & Above)

$51.99

$

Usually ships in 2-12 days

0

38

Ferris 5104722

GRIP, FOAM, 1" ID, 16" LONG
(Superseded to 5104722FS)

Note: (S/N: 2017501539 & Above)

$10.99

$

Usually ships in 2-12 days

0
