F 160Z (5901516) - Ferris F160Z Series 48" Zero-Turn Mower, 26hp Briggs & Stratton Wheel & Tire Group Parts Diagram

F160Z Series 48" Zero-Turn Mower, 26hp Briggs & Stratton

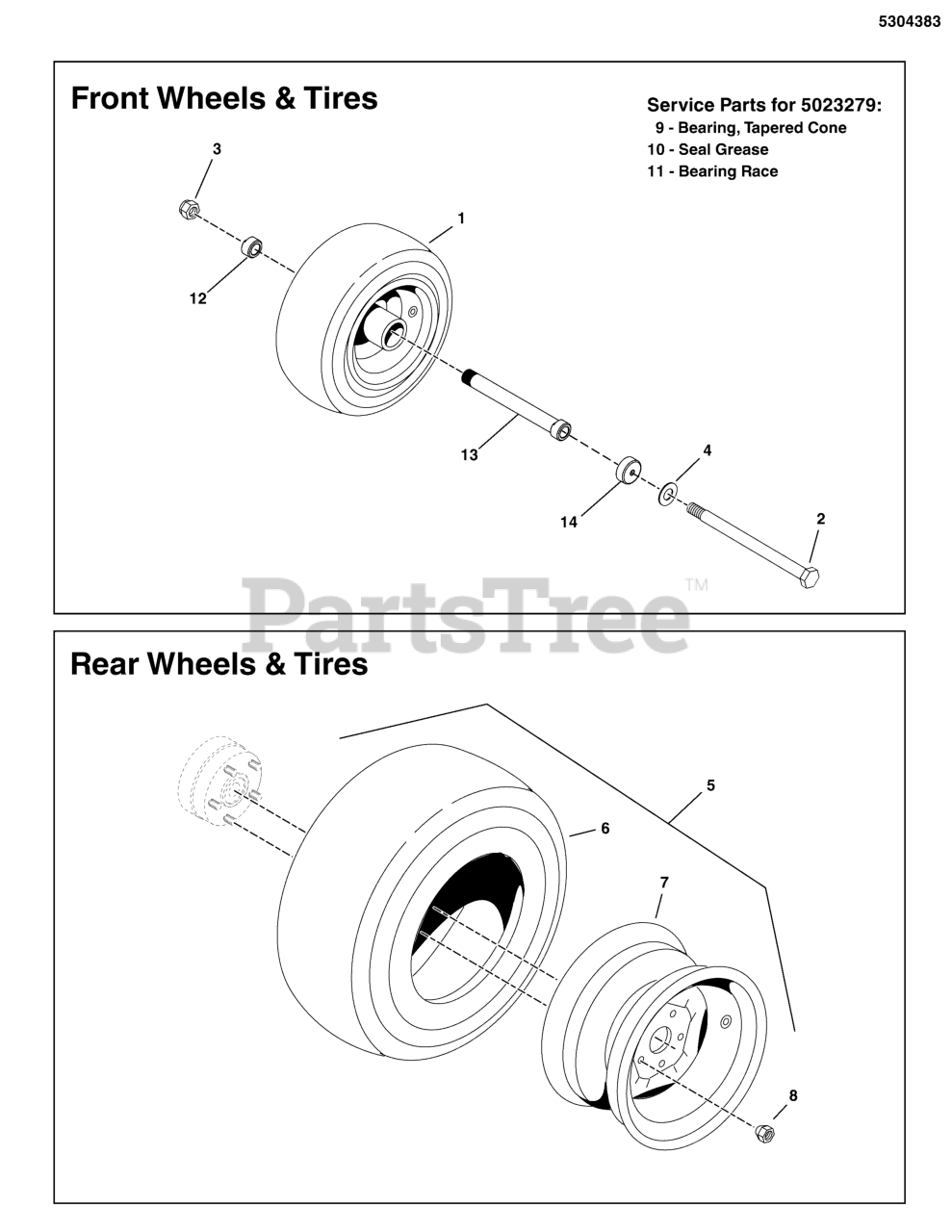

Wheel & Tire Group Parts Diagram

  • Title

1

Ferris 5023279

TIRE ASSM, 13 X 6.5 - 6, FF / TB
(Superseded to 5023279YP)

$270.99

$

In Stock, only 4 left!

0

2

Ferris 5025017X72

BOLT, 1/2-13 X 9" GD5 YZ
(Superseded to 5025017X72YP)

$12.99

$

In Stock, only 2 left!

0

3

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 6

0

4

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5104412

TIRE/WHEEL ASM, 24X9.50-12, TURF SMART
(Superseded to 5108104FS)

Note: (S/N: 4000798685 and below)

$320.99

$

Usually ships in 2-12 days

0

5

Ferris 5108104

TIRE WHEEL ASM, 24X9.50-12, TURF MASTER
(Superseded to 5108104FS)

Note: (S/N: 4000798686 and above)

$320.99

$

Usually ships in 2-12 days

0

6

Ferris 5104412X1

TIRE, 24 X 9.50-12 PR TURF SMART (SV)
(Superseded to 5108115X2)

Note: (SV - One per tire)(S/N: 4000798685 and below)

$281.99

$

Usually ships in 2-12 days

0

6

Ferris 5108115X2

TIRE ONLY, 24X9.50-12, TURF MASTER

Note: (SV - One per tire)(S/N: 4000798686 and above)

$281.99

$

Usually ships in 2-12 days

0

7

Ferris 5103887X1

WHEEL, 12 X 7, 5/4.5, 1.13 OFFSET (SV)

Note: (SV - One per tire)

$145.99

$

Usually ships in 2-12 days

0

8

Ferris 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

Note: (Torque tire lug nuts to 90 ft-lbs (122 Nm)

$3.49

$

In Stock, only 3 left!

0

9

Ferris 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (SV - Two per tire)

$13.99

$

In Stock, Qty 20+

0

10

Ferris 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (SV - Two per tire)

$9.99

$

In Stock, Qty 20+

0

11

Ferris 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

Note: (SV - Two per tire)

$10.99

$

In Stock, only 3 left!

0

12

Ferris 5103650

NUT, BEARING ADJUSTER, AXLE
(Superseded to 5103650YP)

$16.99

$

In Stock, only 2 left!

0

13

Ferris 5103649

BEARING ADJUSTER, SPACER, 7.062 LG
(Superseded to 5103649YP)

$23.99

$

In Stock, only 3 left!

0

14

Ferris 5103594

DEBRIS, COVER, CASTER WHEELS
(Superseded to 5103594YP)

$4.99

$

In Stock, Qty 20+

0
