F 2020 (UT-20788) - Homelite String Trimmer Engine Internal Parts Diagram

String Trimmer

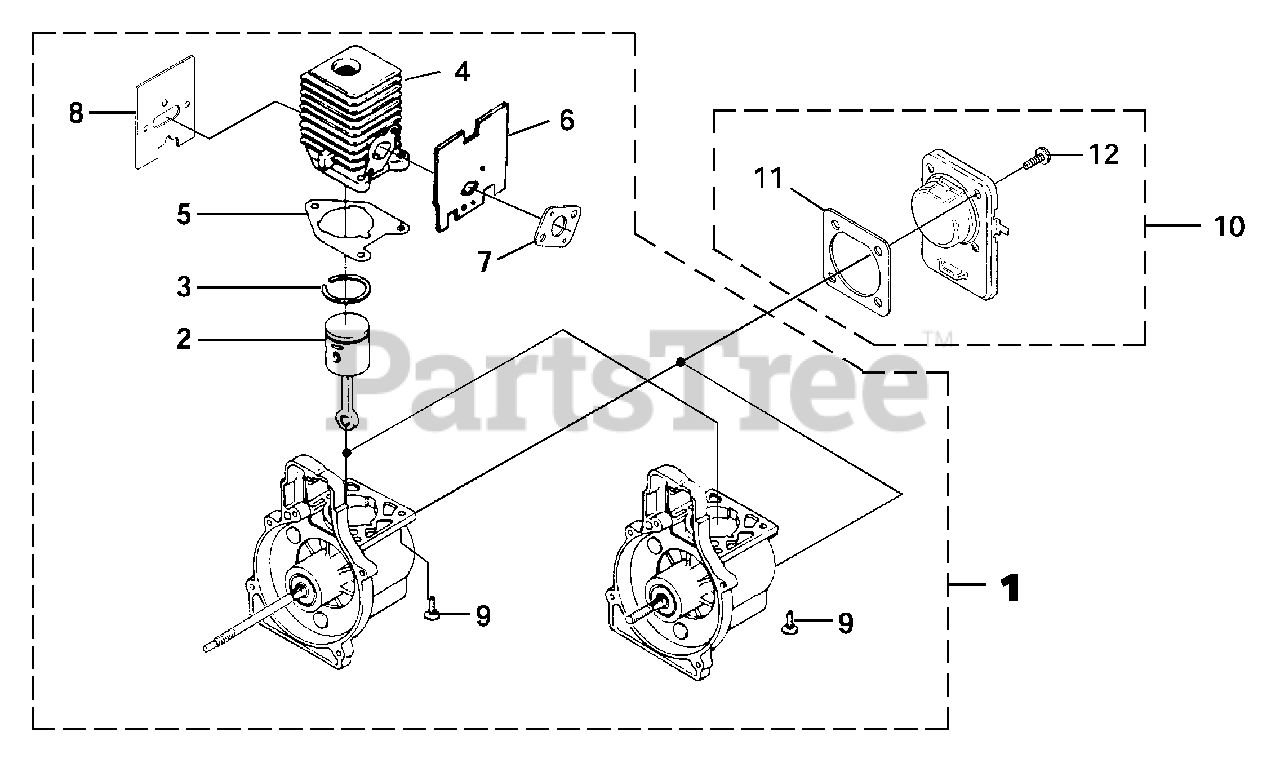

Engine Internal Parts Diagram

  • Title

1

Homelite UP03116

SHORT BLOCK (Non-Clutch)
(Superseded to UP03116A)

Note: Includes items 2-9

$

$

Not available

Homelite UP03122

SHORT BLOCK (Clutch)

$

$

Not available

2

Homelite UP00768

PISTON & ROD ASSY.
(Superseded to UP00768A)

Note: Includes item 3

$

$

Not available

3

Homelite UP03838

RING-Piston
(Superseded to PS01359)

$

$

Not available

4

Homelite UP04136

CYLINDER ASSY.
(Superseded to UP07145A)

Note: Includes item 5-8

$43.99

$

In Stock, only 1 left!

0

5

Homelite UP03857

GASKET-Cylinder
(Superseded to 900953001)

$

$

Not available

6

Homelite UP04308

GASKET-Heat Dam
(Superseded to 06900A)

$

$

Not available

7

Homelite UP03916

GASKET-Carburetor
(Superseded to 98766A)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 09343

GASKET-Muffler

$

$

Not available

9

Homelite UP04345

SCREW-Sems (12-24 X 3/4")
(Superseded to PS02807)

Note: Torque Specs 55-65 In/Lbs, 6.2-7.3 Nm. Required Loctite Red 262

$1.49

$

Usually ships in 3-7 days

0

10

Homelite UP00019

CRANKCASE COVER ASSEMBLY
(Superseded to UP00019A)

Note: Includes items 11-12

$

$

Not available

11

Homelite UP04335

GASKET-Crankcase Cover
(Superseded to 08661)

Note: (Also included w/short block)

$

$

Not available

12

Homelite UP04295

SCREW-Sems (10-24 X 1/2")
(Superseded to PS01565)

Note: Torque Specs 35-45 In/Lbs, 4.0-5.1 Nm. Required Loctite Red 262

$1.49

$

Usually ships in 3-7 days

0
