F 2040 (UT-20791) - Homelite String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

String Trimmer

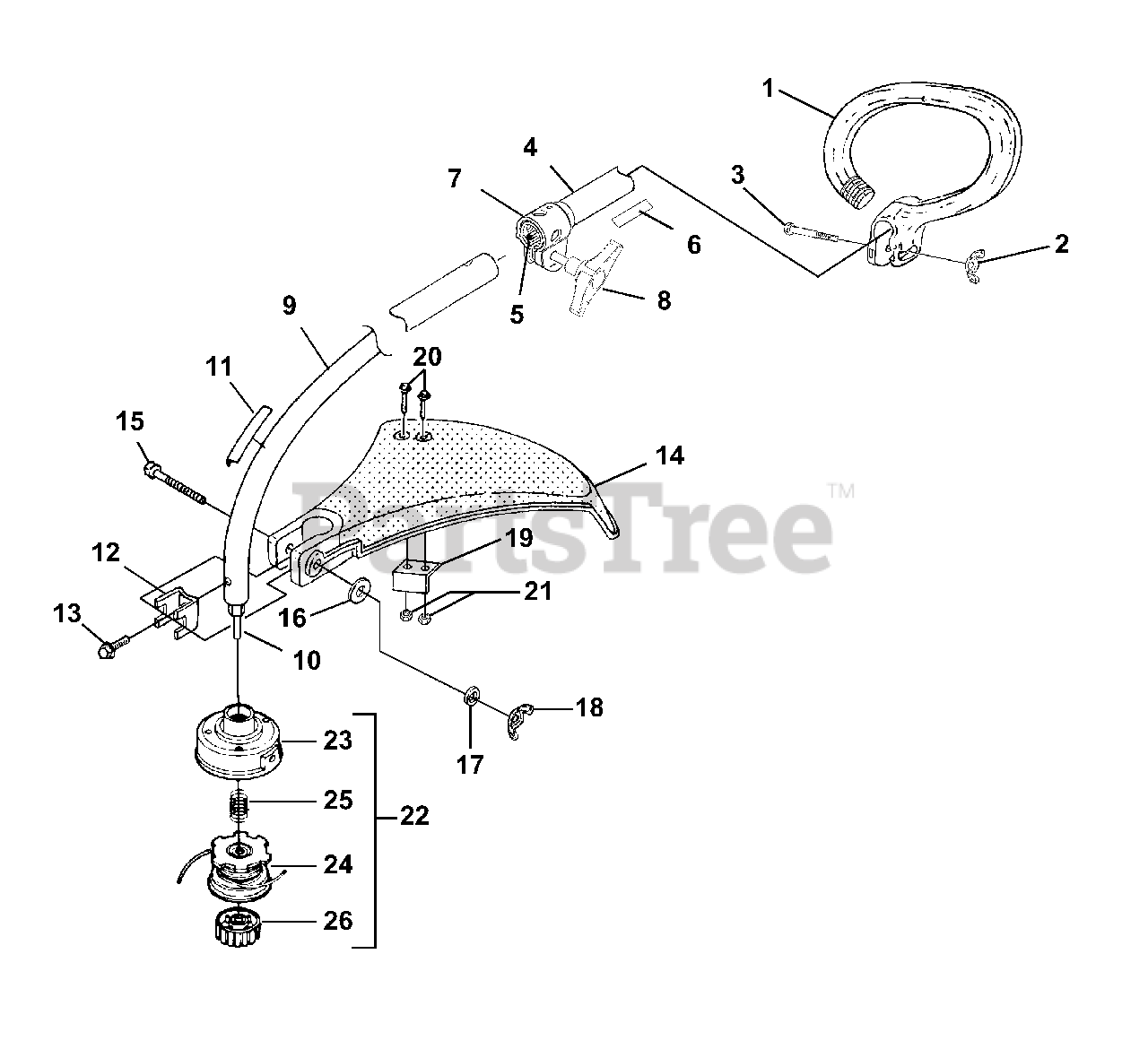

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite A07136

HANDLE-Anti-Vibe
(Superseded to UP06959A)

Note: Includes items 2-3

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

Note: Torque Specs 5-25 In/Lbs; 6-2.8 Nm

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 x 2")

$2.99

$

Usually ships in 3-7 days

0

4

Homelite UP05136

DRIVESHAFT ASSY. (Upper)
(Superseded to UP05136A)

Note: Includes items 5-6

$46.99

$

Usually ships in 3-7 days

0

5

Homelite A07667

FLEXSHAFT w/Collar & Liner
(Superseded to A07667A)

$

$

Not available

6

Homelite 02985

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

7

Homelite UP03839

COUPLER ASSEMBLY
(Superseded to UP03839A)

Note: Includes item 8

$

$

Not available

8

Homelite UP05137

KNOB
(Superseded to PS02071)

$

$

Not available

9

Homelite UP03851

DRIVESHAFT HOUSING (Lower)
(Superseded to UP03851A)

Note: Includes items 10-13

$19.99

$

Usually ships in 3-7 days

0

10

Homelite A07673

SHAFT-Flex

$35.99

$

Usually ships in 3-7 days

0

11

Homelite PS00038

DECAL-Warning
(Superseded to UP04352)

$

$

Not available

12

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

13

Homelite 88077

SCREW-Sems Hex (10-24 X 3/8")
(Superseded to PS05243)

Note: Torque Specs 15-25 In/Lbs; 1.7-2.8 Nm

$

$

Not available

14

Homelite A04705

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to UP06710A)

Note: Includes items 15-21

$

$

Not available

15

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 X 2")

$2.99

$

Usually ships in 3-7 days

0

16

Homelite UP03415

WASHER-Flat (1/4")
(Superseded to 84006)

$

$

Not available

17

Homelite UP03409

WASHER-Lock (1/4")
(Superseded to 83009)

$4.99

$

Usually ships in 3-7 days

0

18

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

Note: Torque Specs 5-25 In/Lbs; 6-2.8 Nm

$

$

Not available

19

Homelite UP04119

BLADE-Cut-Off

Note: Includes items 20-21

$

$

Not available

20

Homelite 82531

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 660616001)

$

$

Not available

21

Homelite UP03885

NUT-Hex (10-24)
(Superseded to 81208)

Note: Torque Specs 30-40 In/Lbs; 3.4-4.5 Nm

$

$

Not available

22

Homelite DA04591A

STRINGHEAD-Complete (.095")
(Superseded to DA04591AA)

Note: Includes items 23-26

$60.99

$

In Stock, only 1 left!

0

23

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

24

Homelite UP00147

SPOOL & STRING (.095")
(Superseded to UP04661A)

Note: Includes item 25

$60.99

$

In Stock, only 1 left!

0

25

Homelite 06713

SPRING-Compression

$1.49

$

In Stock, only 3 left!

0

26

Homelite DA98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

$

$

Not available
