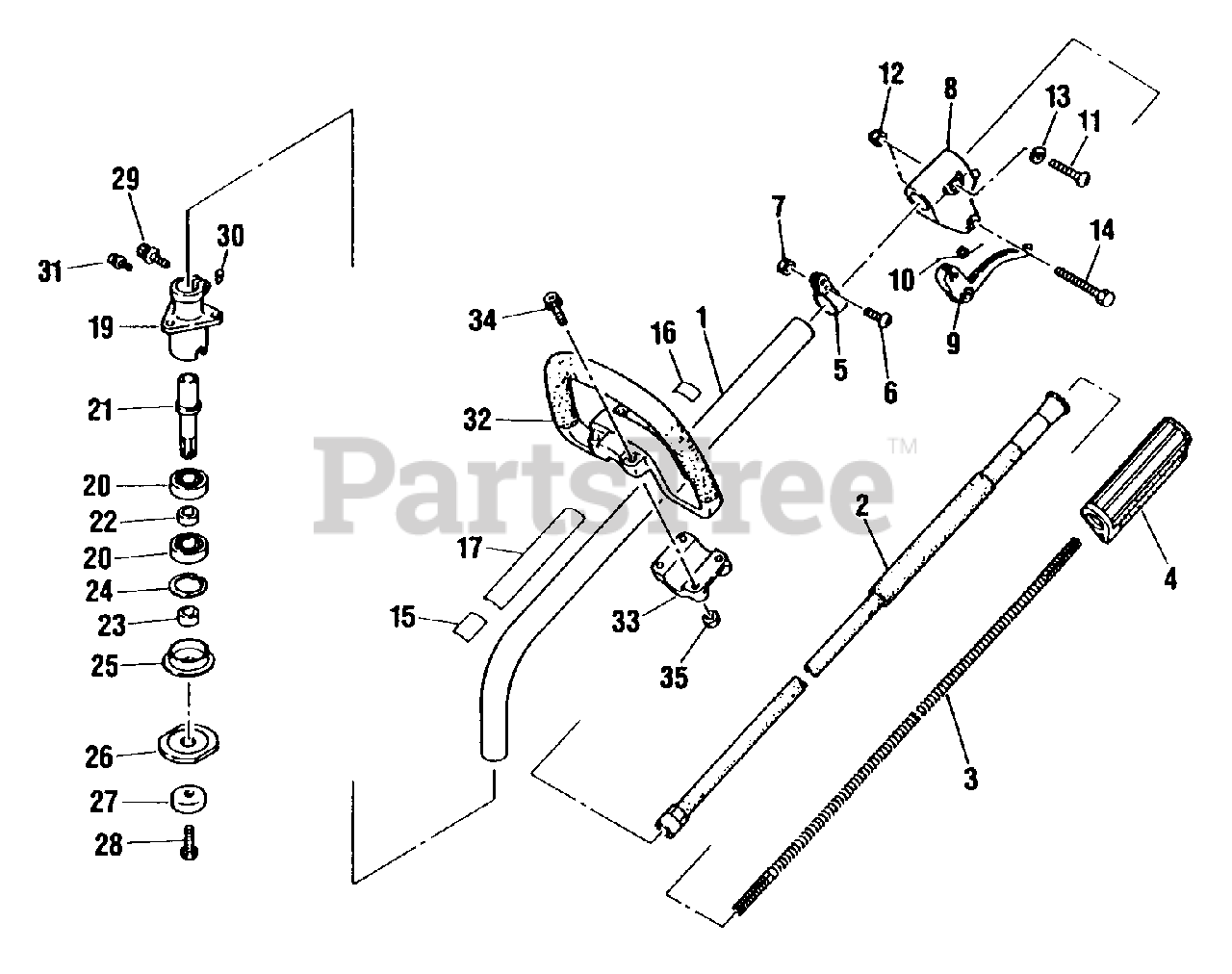

F 21 - Shindaiwa String Trimmer Outer Tube Parts Diagram

String Trimmer

Outer Tube Parts Diagram

  • Title

Echo 72097-12191

MAIN PIPE ASSY
(Superseded to Discontinued)

$

$

Not available

1

PIPE - OUTER

Note: Order 72907-12191; Part unnecessary for replacement except for breakage and missing. Example: Crankcase

$

$

Not available

2

Echo 72097-12121

LINER - FLEXIBLE
(Superseded to Discontinued)

$

$

Not available

3

Echo 72097-12410

DRIVESHAFT - FLEXIBLE
(Superseded to Discontinued)

$

$

Not available

4

Echo 72097-12130

GRIP
(Superseded to Discontinued)

$

$

Not available

5

Echo 72097-12250

HANGER
(Superseded to Discontinued)

$

$

Not available

6

Echo 11206-05120

SCREW - 5X12
(Superseded to 9157405012)

$0.99

$

In Stock, Qty 11

0

7

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

Echo 72097-12310

THROTTLE LEVER ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo 72030-12330

BODY
(Superseded to Discontinued)

$

$

Not available

9

Echo 72030-12340

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

10

Echo 11203-05250

SCREW - 5X20
(Superseded to 9157805025)

$0.99

$

In Stock, Qty 10

0

11

Echo 11203-05250

SCREW - 5X20
(Superseded to 9157805025)

$0.99

$

In Stock, Qty 10

0

12

Echo 11525-05000

NUT - 5

$1.49

$

In Stock, only 1 left!

0

13

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo 01014-05250

BOLT - 5X25
(Superseded to 9103005025)

$0.99

$

Usually ships in 2-4 days

0

15

Echo 19402-00024

LABEL - CAUTION
(Superseded to X505003200)

$0.99

$

In Stock, only 1 left!

0

16

Echo 72017-12150

LABEL - ALIGNMENT
(Superseded to X524002380)

$0.99

$

Usually ships in 2-4 days

0

17

Echo 72005-12510

LABEL - MODEL
(Superseded to 19420-00028)

$

$

Not available

Echo 72097-13100

SHAFT CASE ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo 72097-13110

CASE, GEAR
(Superseded to C530000040)

$18.99

$

Usually ships in 2-4 days

0

20

Echo 02006-06001

BEARING, BALL - 6001DDU
(Superseded to 90080206001)

$9.99

$

In Stock, only 2 left!

0

21

Echo 72097-13120

SHAFT
(Superseded to Discontinued)

$

$

Not available

22

Echo 72030-13130

SPACER - UPPER
(Superseded to V357000170)

$1.99

$

Usually ships in 2-4 days

0

23

Echo 72030-13140

SPACER - LOWER
(Superseded to V357000180)

$1.99

$

In Stock, Qty 15

0

24

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.49

$

In Stock, Qty 17

0

25

Echo 72048-13151

HOLDER (A)
(Superseded to Discontinued)

$

$

Not available

26

Echo 22000-13251

HOLDER (B)

$

$

Currently unavailable

27

Echo 22000-13290

GUARD
(Superseded to C535000860)

$2.99

$

In Stock, Qty 12

0

28

Echo 72097-13510

BOLT

$1.99

$

Usually ships in 2-4 days

0

29

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

30

Echo 22000-13420

SHIM
(Superseded to V340000300)

$0.99

$

In Stock, Qty 8

0

31

Echo 11022-05100

SCREW - 5X10
(Superseded to V203001710)

$0.99

$

Usually ships in 2-4 days

0

Echo 72097-14100

HANDLE ASSY
(Superseded to Discontinued)

$

$

Not available

32

Echo 72097-14110

HANDLE

$

$

Currently unavailable

33

Echo 72097-14120

CAP - LOWER
(Superseded to Discontinued)

$

$

Not available

34

Echo 72097-14150

BOLT
(Superseded to Discontinued)

$

$

Not available

35

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0
