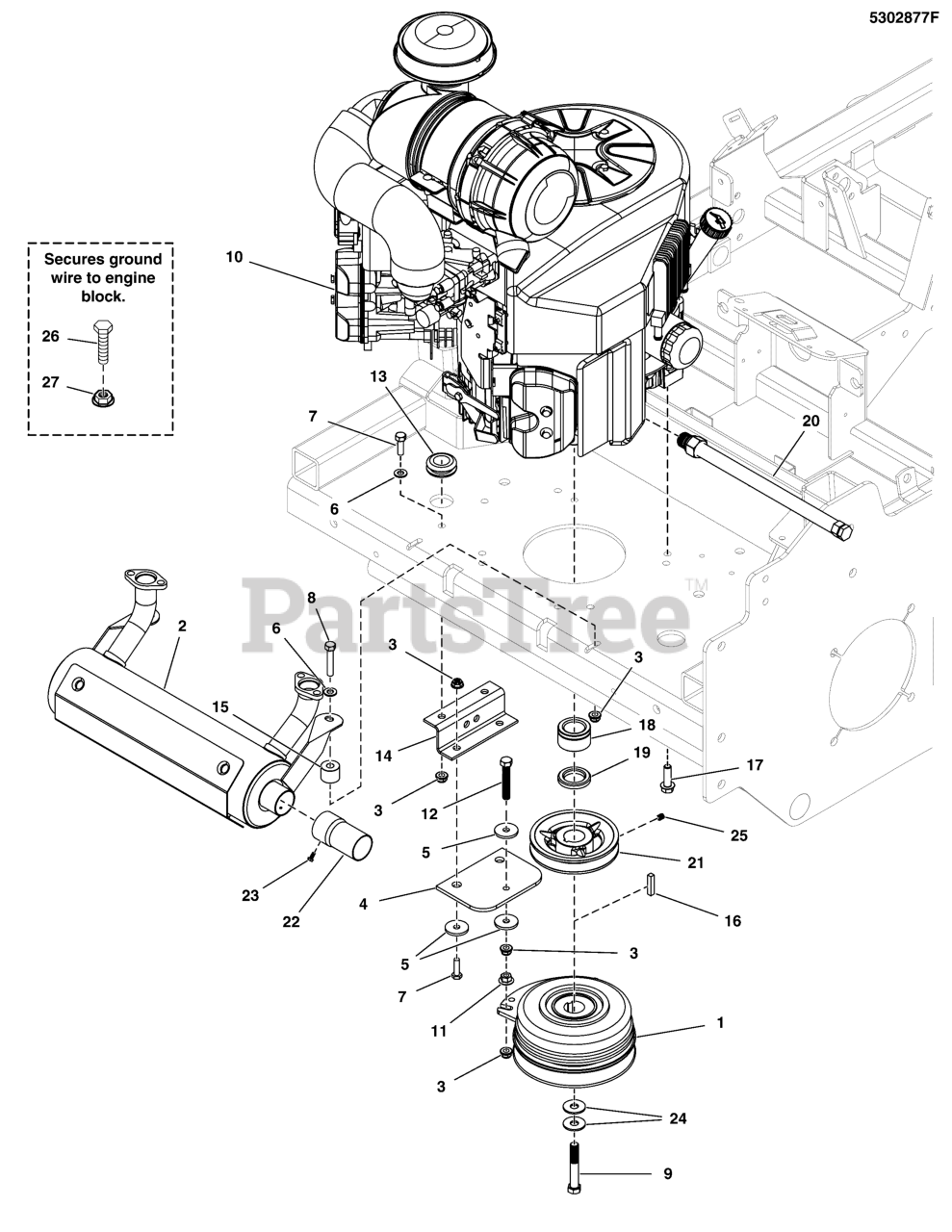

F 210Z (5901520) - Ferris F210Z Series 61" Zero-Turn Mower, 26hp Kawasaki Engine & PTO Group - Kawasaki Parts Diagram

F210Z Series 61" Zero-Turn Mower, 26hp Kawasaki

Engine & PTO Group - Kawasaki Parts Diagram

  • Title

1

Ferris 5105090

CLUTCH, WARNER, 200 ft lbs - 1.13"
(Superseded to 5105090YP)

$483.99

$

In Stock, only 1 left!

0

2

Ferris 5105069

MUFFLER, 27HP KAWASAKI, 5" CAN
(Superseded to 5105069YP)

Note: (Replacement Muffler does not require components to secure muffler to engine deck)

$294.99

$

Usually ships in 2-12 days

0

3

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 2 left!

0

5

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

6

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

8

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 CZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

9

Ferris 5102865

BOLT, CRANKSHAFT,7/16-20X2-3/4, GD8
(Superseded to 5102865YP)

Note: (Torque crankshaft bolt to 65 ft. lbs. (88 Nm))

$5.49

$

In Stock, Qty 9

0

10

Ferris FX801V-ES00-S

ENGINE, 26HP KAWA, FX801V

$

$

Currently unavailable

11

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 5

0

12

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$4.49

$

Usually ships in 2-12 days

0

13

Ferris 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

14

Ferris 5414825A

ANCHOR, CLUTCH - BLK

$

$

Not available

15

Ferris 5046446

SPACER, .39 X 1.00 X .80, CZ
(Superseded to 5046446SM)

$7.99

$

In Stock, only 1 left!

0

16

Ferris 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$4.49

$

In Stock, Qty 12

0

17

Ferris 5025532

BOLT, 3/8-16 X 1-1/4, SF, PLT W/PATCH
(Superseded to 84003591)

$3.49

$

In Stock, Qty 11

0

18

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$14.99

$

In Stock, only 1 left!

0

19

Ferris 5046904

SPACER, 1.13 X 1.75 X .25
(Superseded to 5046904YP)

$18.99

$

In Stock, only 1 left!

0

20

Ferris 5102629

HOSE, OIL DRAIN, M20 X 2.5
(Superseded to 5102629FS)

$55.99

$

Usually ships in 2-12 days

0

21

Ferris 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$51.99

$

In Stock, only 2 left!

0

22

Ferris 5100969

EXTENSION, TAILPIPE, 3"

$

$

Currently unavailable

23

Ferris 5025470

SCREW,SELF-TAP,#8-32 X 3/8,WASH HEX, CZ
(Superseded to 5025470YP)

$3.49

$

In Stock, only 1 left!

0

24

Ferris 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

$4.49

$

In Stock, Qty 8

0

25

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

Note: (SV)

$3.99

$

In Stock, Qty 10

0

26

Ferris 5025249

BOLT, M8-1.25 X 20 MM GD8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

27

Ferris 5025355

NUT, M8-1.25 SERR. FLANGE, CZ
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0
