F 210Z (5901521) - Ferris F210Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Electrical Group - Briggs & Stratton EFI S/N: 2017405977 & Below Parts Diagram

F210Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

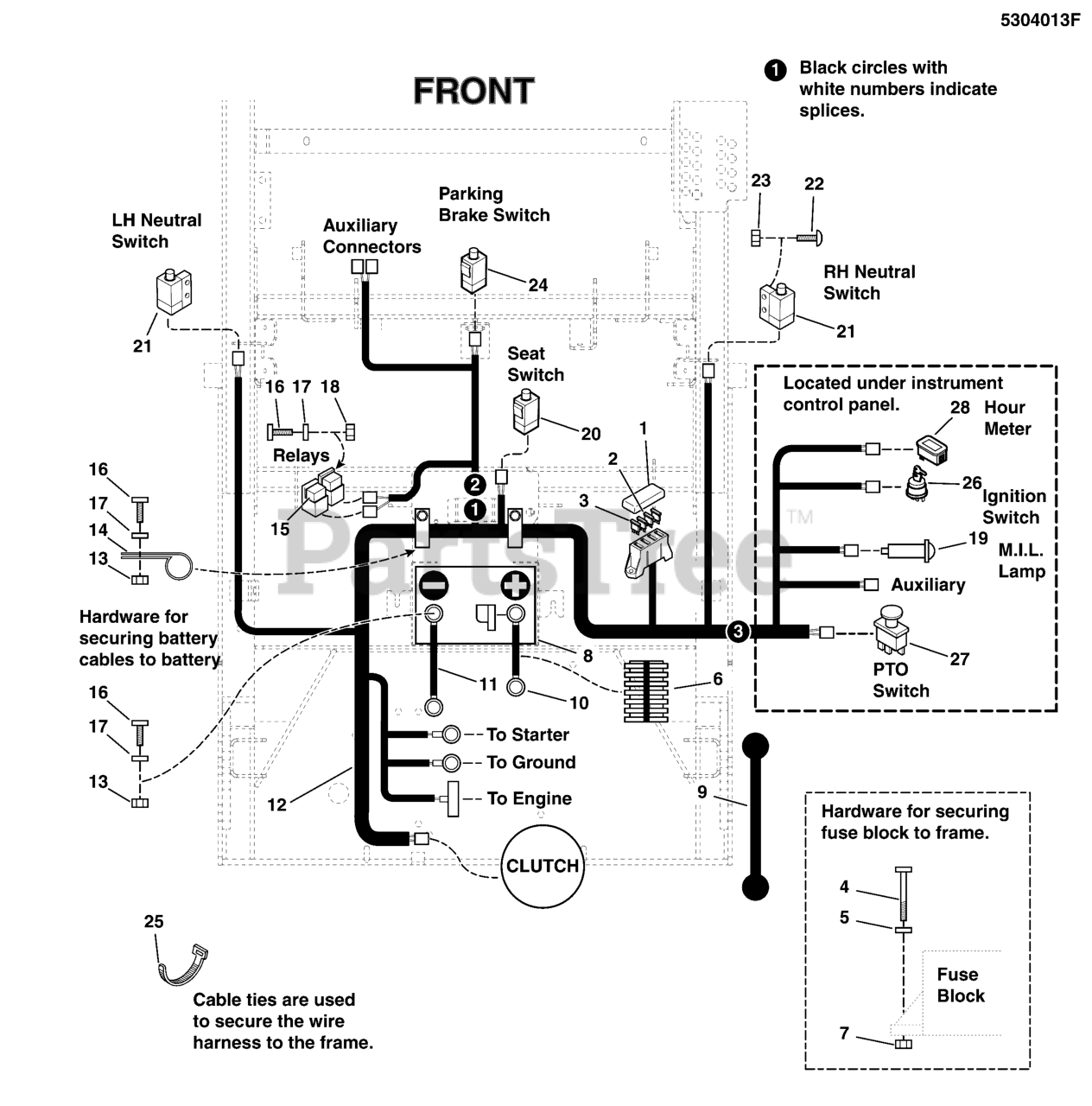

Electrical Group - Briggs & Stratton EFI S/N: 2017405977 & Below Parts Diagram

  • Title

1

Ferris 5022805

COVER, VINYL FUSEBLOCK
(Superseded to 5022805SM)

$6.99

$

In Stock, only 4 left!

0

2

Ferris 5101935

FUSE, ATO-15 (15 AMP)(SV)
(Superseded to 5101935YP)

$4.49

$

Usually ships in 2-12 days

0

3

Ferris 5021603

FUSE, ATO-20 (20 AMP)(SV)
(Superseded to 5021603SM)

$5.49

$

In Stock, only 2 left!

0

4

Ferris 5025270X16

SCREW, #10-24 X 2 ROUND PHILLIPS

$

$

Currently unavailable

5

Ferris 5023499

WASHER, #10 SAE
(Superseded to 5023499SM)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5050927X17

WIRE LOOM, 3/8 ID X 17 IN
(Superseded to 5050927X17FS)

$5.99

$

Usually ships in 2-12 days

0

7

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

8

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

9

Ferris 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

10

Ferris 5047690

BATTERY CABLE, NEG, 14, 5/16-13/32
(Superseded to 5047690SM)

$17.99

$

Usually ships in 2-12 days

0

11

Ferris 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$19.99

$

Usually ships in 2-12 days

0

12

Ferris 5413201

WIRE HARNESS, S200XT, B&S EFI

$586.99

$

Usually ships in 2-12 days

0

13

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

14

Ferris 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 5021766

RELAY, 12V, 40A
(Superseded to 5021766SM)

$25.99

$

Usually ships in 2-12 days

0

16

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

18

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

19

LAMP, MALFUNCTION INDICATOR LAMP (M.I.L.) (SEE INSTRUMENT CONTROL PANEL GROUP)

$

$

Not available

20

Ferris 5101589

SWITCH, PLUNGER, NO, SINGLE POLE, SNAP-IN
(Superseded to 84006599)

Note: (SEAT SWITCH)

$13.99

$

Usually ships in 2-12 days

0

21

Ferris 5021451

SWITCH, PLUNGER, N.O.
(Superseded to 5021451SM)

Note: (NEUTRAL SWITCH)

$11.99

$

In Stock, only 4 left!

0

22

Ferris 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$7.49

$

Usually ships in 2-12 days

0

23

Ferris 5025029

NUT, #10-24 HEX
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

Note: (PARKING BRAKE SWITCH)

$15.99

$

In Stock, Qty 20+

0

25

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

26

SWITCH, IGNITION, 6 POST (SEE INSTRUMENT CONTROL PANEL GROUP)

$

$

Not available

27

SWITCH, BLADE ENGAGEMENT (SEE INSTRUMENT CONTROL PANEL GROUP)

$

$

Not available

28

HOUR METER (SEE INSTRUMENT CONTROL PANEL GROUP)

$

$

Not available
