F 210Z (5901655) - Ferris F210Z Series 61" Zero-Turn Mower, 26hp Kawasaki 61" Mower Deck - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

F210Z Series 61" Zero-Turn Mower, 26hp Kawasaki

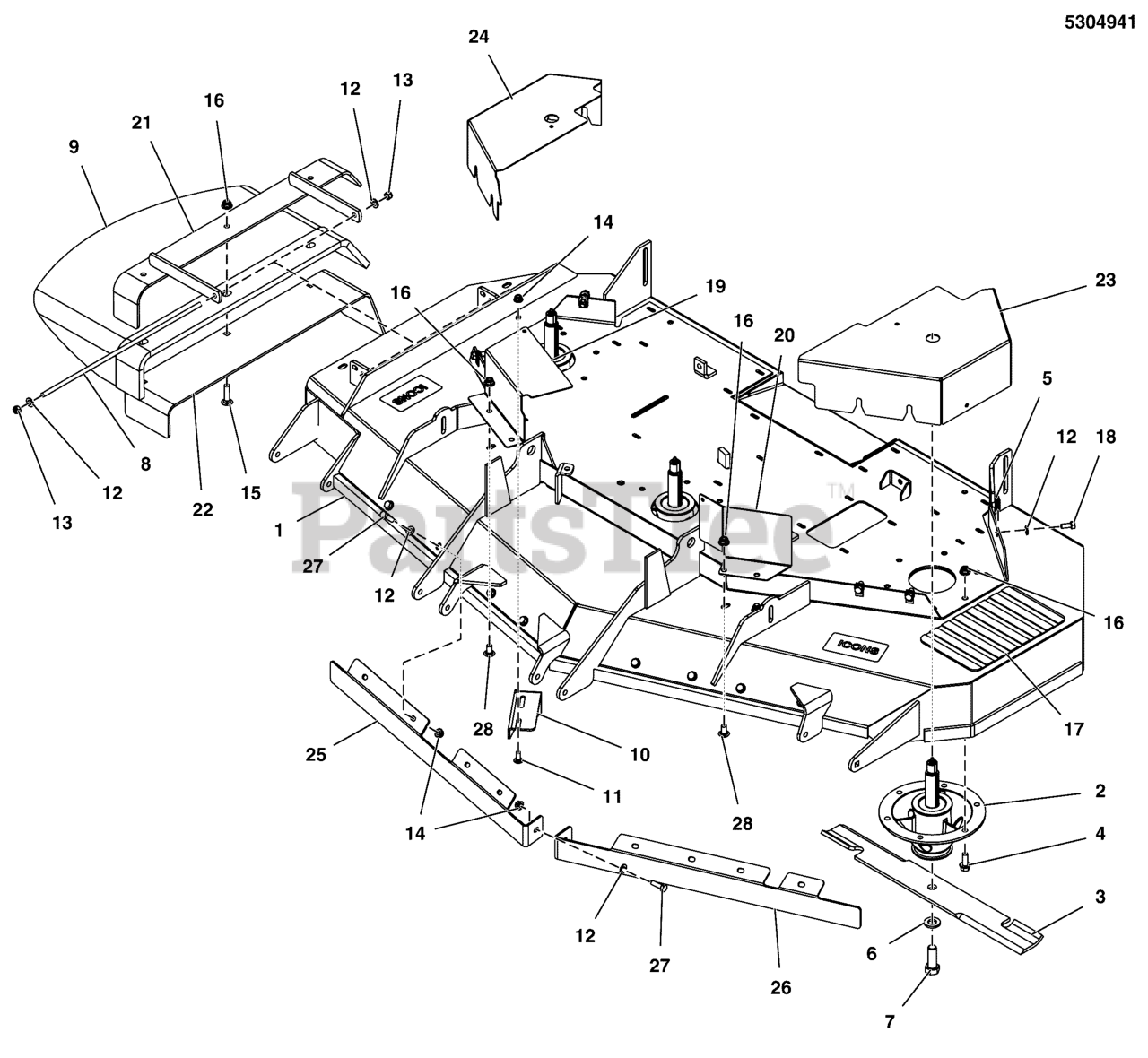

61" Mower Deck - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

  • Title

1

Ferris 5601050

DECK SHELL W/DECALS, F210Z-EXP (5416303B)

Note: (S/N: 2017954955 & Below)

$

$

Currently unavailable

1

Ferris 5601116

DECK SHELL W/DECALS, F210ZEXP (5417027B)

Note: (S/N: 2017954956 & Above)(Refer to Note: *)

$

$

Currently unavailable

2

Ferris 5104744

SPINDLE ASSM, CAST IRON 8.0-6 BOLT, LS
(Superseded to 5104744YP)

$198.99

$

Usually ships in 2-12 days

0

3

Ferris 5101755S

BLADE SET, 61 DECK (3)

Note: (Set of 3 Blades)

$

$

Not available

4

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

6

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 12

0

7

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

9

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

Note: (5104442)

$160.99

$

In Stock, only 1 left!

0

10

Ferris 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

11

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

13

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

14

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

In Stock, only 1 left!

0

16

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

17

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

18

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

19

Ferris 5416294B

GUARD, PULLEY, RH, 61 CE - RED

$

$

Currently unavailable

20

Ferris 5416293B

GUARD, PULLEY, LH, 61 CE - RED

$

$

Currently unavailable

21

Ferris 5416256A

WELD, CHUTE MOUNT, CE - BLK

$

$

Currently unavailable

22

Ferris 5416257A

SUPPORT, DISCHARGE CHUTE, CE - BLK

$

$

Currently unavailable

23

Ferris 5416260B

GUARD, CUTTER DECK.LH, 61CE - RED

$

$

Currently unavailable

24

Ferris 5416259B

GUARD, CUTTER DECK.RH, 61CE - RED

$

$

Currently unavailable

25

Ferris 5414758B

BAFFLE, BLOWOUT, 61 ICD, RH - RED
(Superseded to 5414758BFS)

$34.99

$

Usually ships in 2-12 days

0

26

Ferris 5414757B

BAFFLE, BLOWOUT, 61 ICD, LH - RED
(Superseded to 5414757BFS)

$33.99

$

Usually ships in 2-12 days

0

27

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 80003585

BOLT,3/8-16X.75,GR5,CARRIAGE,ZC/CL
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0
