F 210Z (5901709) - Ferris F210Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton Instrument Control Panel Group Parts Diagram

F210Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton

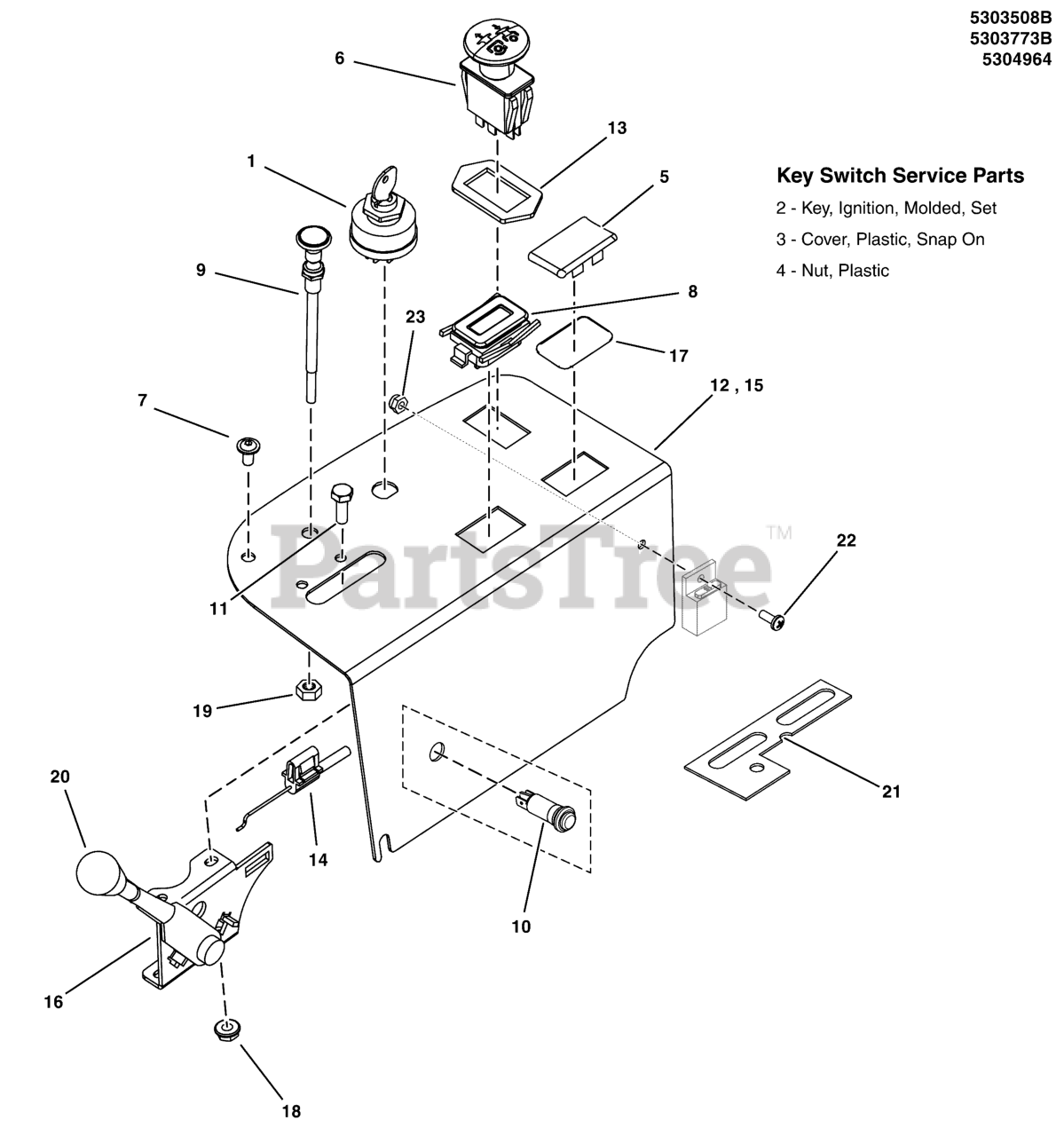

Instrument Control Panel Group Parts Diagram

  • Title

1

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$34.99

$

In Stock, Qty 11

0

2

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

3

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.99

$

In Stock, Qty 7

0

4

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 2 left!

0

5

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$5.49

$

In Stock, Qty 7

0

6

Ferris 1722887

SWITCH-PTO PUSH
(Superseded to 1722887SM)

$35.99

$

In Stock, Qty 20+

0

7

Ferris 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.99

$

In Stock, only 2 left!

0

8

HOUR METER, ASSEMBLE

Note: (Refer to Note: *)

$

$

Not available

9

Ferris 5046501

CABLE, Choke Control, 47"
(Superseded to 5046501SM)

Note: (Carbureted Models Only)

$59.99

$

In Stock, only 2 left!

0

10

Ferris 5103809

LIGHT, INDICATOR, PANEL, LED, RED
(Superseded to 5103809YP)

Note: (Briggs & Stratton EFI Engines Only)

$30.99

$

Usually ships in 2-12 days

0

11

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$7.49

$

Usually ships in 2-12 days

0

12

Ferris 5411933A

PANEL, Control - Black
(Superseded to 5411933AAFS)

Note: (Carbureted Models Only)

$34.99

$

Usually ships in 2-12 days

0

13

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

14

Ferris 5101073

CABLE, THROTTLE, 42"
(Superseded to 5101073SM)

$34.99

$

In Stock, Qty 9

0

15

Ferris 5412044A

PANEL, CONTROL, IS2100/3200 - BLK

Note: (Briggs & Stratton EFI Engines Only)

$

$

Not available

16

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

$50.99

$

In Stock, only 4 left!

0

17

Ferris 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025035

NUT, 3/8-24 HEX (SV)
(Superseded to 5025035SM)

Note: (Carbureted Models Only)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$11.99

$

In Stock, only 2 left!

0

21

PLATE, THROTTLE STOP, SW35

Note: (Export Models Only)

$

$

Not available

22

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

23

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0
