F 222 - Shindaiwa String Trimmer Fan Cover Ending S/N 7115090 Parts Diagram

String Trimmer

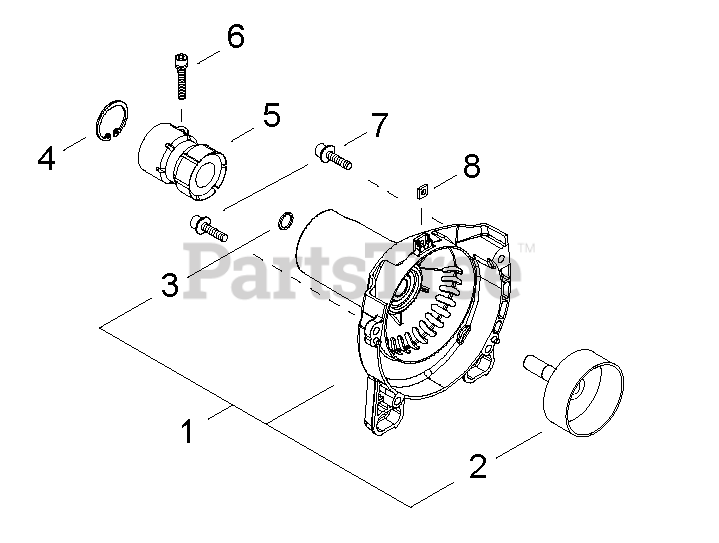

Fan Cover Ending S/N 7115090 Parts Diagram

  • Title

1

Echo 62123-31013

COVER ASSY, FAN
(Superseded to P021028120)

$

$

Not available

2

Echo 62123-31211

DRUM, CLUTCH
(Superseded to A556000620)

$

$

Not available

3

Echo 20000-31140

RING, SNAP Ø12
(Superseded to V583000170)

$1.49

$

In Stock, Qty 20+

0

4

Echo 02432-40170

RING, SNAP Ø40
(Superseded to 9242440000)

$1.99

$

In Stock, only 4 left!

0

5

Echo 20087-31411

CUSHION, AV
(Superseded to A575000190)

$19.99

$

In Stock, only 2 left!

0

6

Echo 11020-05220

BOLT M5×22
(Superseded to V203000620)

$0.99

$

Usually ships in 2-4 days

0

7

Echo 11024-05180

BOLT M5×18
(Superseded to V203000510)

$1.49

$

In Stock, Qty 5

0

8

Echo 11500-04000

NUT M4
(Superseded to Discontinued)

$

$

Not available
