F 320Z (5901522) - Ferris F320Z Series 72" Zero-Turn Mower, 35hp Kawasaki 72" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

F320Z Series 72" Zero-Turn Mower, 35hp Kawasaki

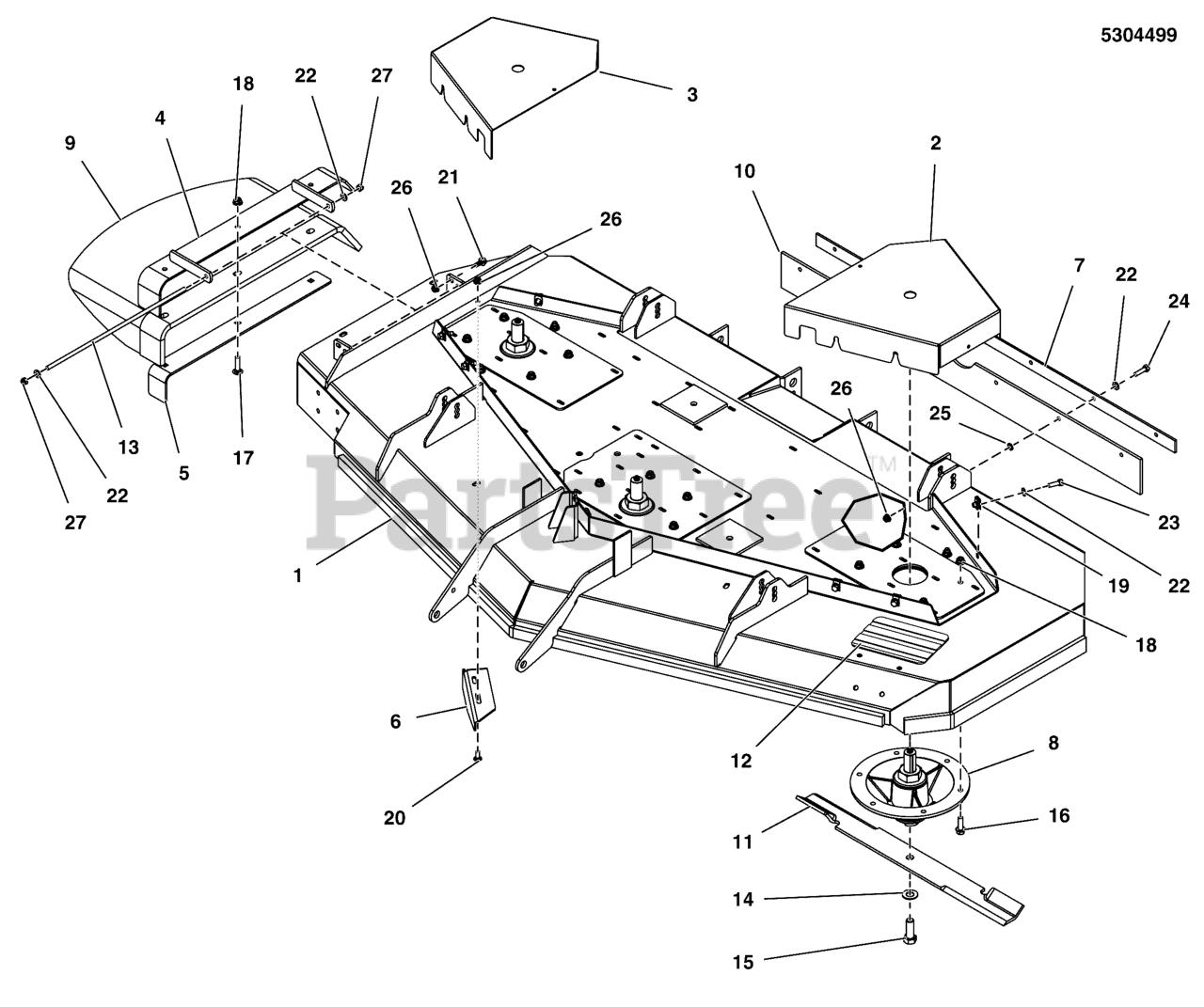

72" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Ferris 5600934

DECK SHELL W/DECALS,72,F320Z,5414880B

$

$

Currently unavailable

2

Ferris 5414887B

GUARD, LH, 72 - RED
(Superseded to 5414887BFS)

$53.99

$

Usually ships in 2-12 days

0

3

Ferris 5414886B

GUARD, RH, 72 - RED
(Superseded to 5414886BFS)

$48.99

$

Usually ships in 2-12 days

0

4

Ferris 84008171

MOUNT

$92.99

$

Usually ships in 2-12 days

0

5

Ferris 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

$29.99

$

In Stock, Qty 5

0

6

Ferris 5407876A

PLATE, DEFLECTOR, 72 - BLK
(Superseded to 5407876AA)

$22.99

$

Usually ships in 2-12 days

0

7

Ferris 5406164A

PLATE, SUPPORT, 72" - BLK

$34.99

$

Usually ships in 2-12 days

0

8

Ferris 84007984

SPINDLE ASSEMBLY

Note: (S/N: 2017458254 and below)

$314.99

$

In Stock, only 1 left!

0

8

Ferris 84003242

SPINDLE ASSEMBLY

Note: (S/N: 2017458255 and above)

$372.99

$

In Stock, only 1 left!

0

9

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

10

Ferris 5102621

FLAP, STRIPER, 72 DECK
(Superseded to 5102621YP)

$113.99

$

In Stock, only 1 left!

0

11

Ferris 5102227S

BLADE SET, 72 DECK

Note: (SET OF THREE BLADES)

$113.99

$

Usually ships in 2-12 days

0

12

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$16.99

$

In Stock, only 2 left!

0

13

Ferris 5061300

ROD, MOUNT, CHUTE 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

14

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$4.49

$

In Stock, Qty 20+

0

15

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

17

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$4.49

$

In Stock, only 1 left!

0

18

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

19

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

20

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

21

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

22

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 13

0

24

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 CZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0

25

Ferris 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

26

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 15

0
