F 320Z (5901522) - Ferris F320Z Series 72" Zero-Turn Mower, 35hp Kawasaki Decal Group - Safety & Operation Parts Diagram

F320Z Series 72" Zero-Turn Mower, 35hp Kawasaki

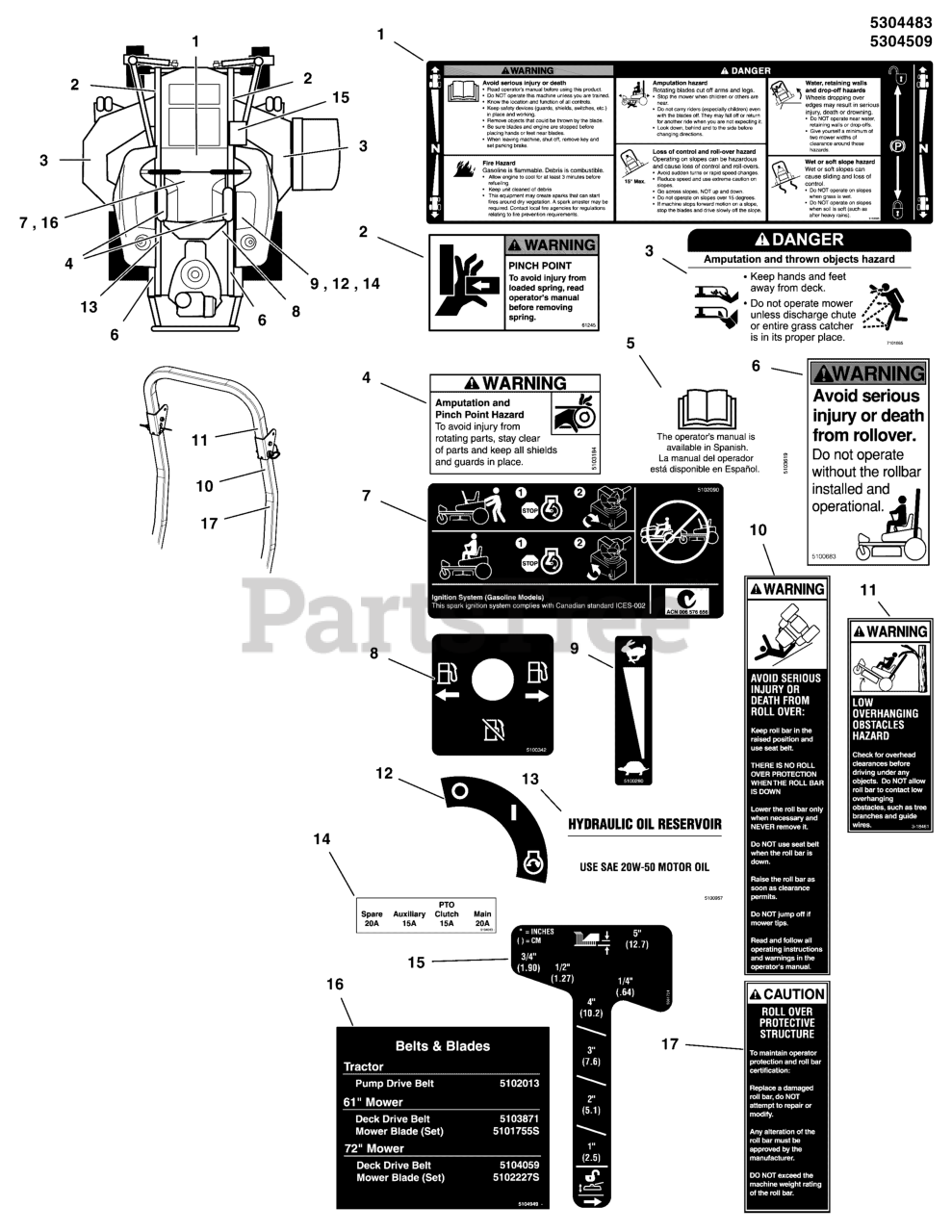

Decal Group - Safety & Operation Parts Diagram

  • Title

1

Ferris 5103595

DECAL, MAIN SAFETY
(Superseded to 5103595YP)

$24.99

$

In Stock, only 3 left!

0

2

Ferris 5061245

DECAL, Pinch Point
(Superseded to 5061245SM)

$12.99

$

In Stock, only 1 left!

0

3

Ferris 7101665

DECAL, DANGER DO NOT OPERATE W/O DEFLECT
(Superseded to 7101665YP)

$14.99

$

In Stock, only 2 left!

0

4

Ferris 5103184

DECAL, WARNING, HAND IN BELT, ENG ONLY
(Superseded to 5103184YP)

$13.99

$

Usually ships in 2-12 days

0

5

Ferris 5103619

DECAL, MANUAL AVAILABLE IN SPANISH
(Superseded to 5103619YP)

$7.99

$

Usually ships in 2-12 days

0

6

Ferris 5100683

DECAL, Warning, ROLL BAR
(Superseded to 5100683SM)

$8.49

$

In Stock, only 1 left!

0

7

Ferris 5102090

DECAL, TRANSAXLE RELEASE, S200XT
(Superseded to 5102090YP)

$12.99

$

Usually ships in 2-12 days

0

8

Ferris 5100342

DECAL, FUEL VALVE
(Superseded to 5100342SM)

$14.99

$

In Stock, only 3 left!

0

9

Ferris 5100280

DECAL, Throttle Control
(Superseded to 5100280SM)

$9.99

$

In Stock, only 2 left!

0

10

Ferris 5104082

DECAL, WARNING, FOLDING ROLL BAR
(Superseded to 5104082YP)

Note: (SV)

$12.99

$

Usually ships in 2-12 days

0

11

Ferris 5100405

DECAL, WARNING OVERHANG, ROPS (SV)
(Superseded to 5100405YP)

Note: (SV)

$9.99

$

Usually ships in 2-12 days

0

12

Ferris 5048970

DECAL, IGNITION CONTROL
(Superseded to 5048970SM)

$12.99

$

In Stock, only 2 left!

0

13

Ferris 5100957

DECAL, HYDRAULIC OIL, SAE 20W50
(Superseded to 84002270)

$6.99

$

Usually ships in 2-12 days

0

14

Ferris 5104043

DECAL, FUSE LOCATION, 20-15-15-20
(Superseded to 5104043YP)

$6.99

$

Usually ships in 2-12 days

0

15

Ferris 5061724

DECAL, DECK HEIGHT, IS1500ZX
(Superseded to 5108114)

$

$

Not available

16

Ferris 5104949

DECAL, BELT AND BLADE, F320, 61 & 72
(Superseded to 5104949YP)

Note: (Production 61 use 5104832)

$12.99

$

Usually ships in 2-12 days

0

17

Ferris 5104083

DECAL, CAUTION, FOLDING ROLL BAR
(Superseded to 5104083YP)

Note: (SV)

$10.99

$

Usually ships in 2-12 days

0
