F 320Z (5901645) - Ferris F320Z Series 72" Zero-Turn Mower, 35hp Kawasaki Hydraulic Group - Two Tank Mounts Parts Diagram

F320Z Series 72" Zero-Turn Mower, 35hp Kawasaki

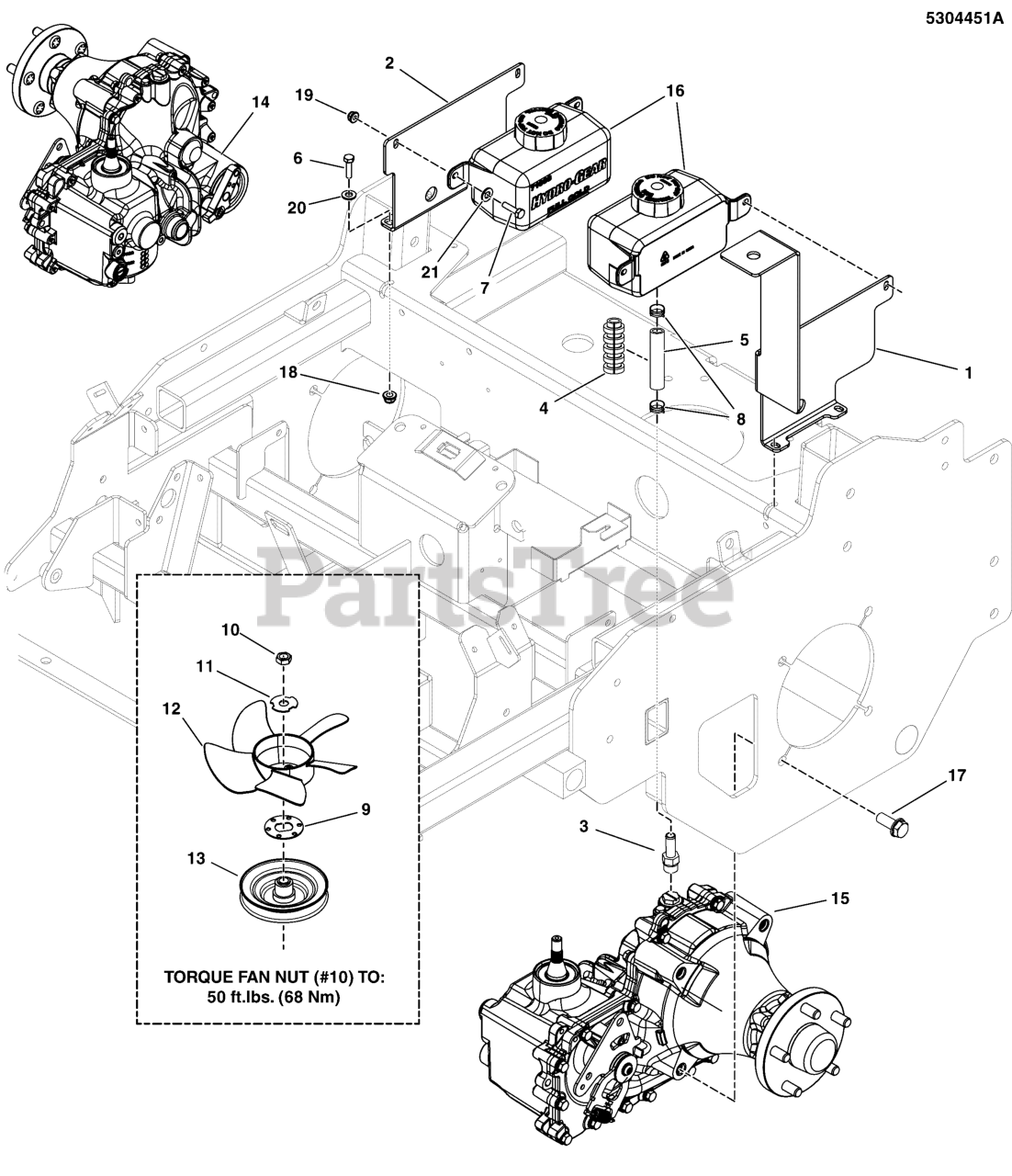

Hydraulic Group - Two Tank Mounts Parts Diagram

  • Title

1

Ferris 5412888A

PLATE, HYD BOT FUEL MNT LH, S200XT - BLK

$36.99

$

Usually ships in 2-12 days

0

2

Ferris 5415361A

PLATE, HYD BOT MOUNT, RH, 200, 320 - RED

$18.99

$

Usually ships in 2-12 days

0

3

Ferris 5101987X1

FITTING, BREATHER, ZT5400
(Superseded to 5101987X1YP)

$27.99

$

Usually ships in 2-12 days

0

4

Ferris 5100384X7

LOOM, CONVOLUTED SPLIT, 1 ID - 7.00 LONG

$

$

Not available

5

Ferris 5050933X9

HOSE, 5/8 PUSH LOCK, 9.00
(Superseded to 5050933X9FS)

$13.99

$

Usually ships in 2-12 days

0

6

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

7

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

8

Ferris 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$4.49

$

In Stock, only 2 left!

0

9

Ferris 5102917

SPACER, ANTI ROTATE, ZT5400
(Superseded to 5102917YP)

$6.49

$

In Stock, only 1 left!

0

10

Ferris 5102916

NUT, ZT5400
(Superseded to 5102916YP)

$3.49

$

In Stock, only 2 left!

0

11

Ferris 5102914

WASHER, ZT5400, SLOTTED
(Superseded to 5102914YP)

$4.49

$

In Stock, only 1 left!

0

12

Ferris 5102874

FAN, ZT5400
(Superseded to 5102874YP)

$28.99

$

Usually ships in 2-12 days

0

13

Ferris 5102872

PULLEY, ZT5400 (53177)
(Superseded to 5102872YP)

$75.99

$

In Stock, only 3 left!

0

14

Ferris 5103963

TRANSAXLE, ZT5400, RH, 1015-1057R L AXLE
(Superseded to 84008008)

$2477.99

$

Usually ships in 2-12 days

0

15

Ferris 5103964

TRANSAXLE, ZT5400, LH, 1015-1057L L AXLE
(Superseded to 5103964YP)

$2356.99

$

Usually ships in 2-12 days

0

16

Ferris 5101998

HYDRO TANK, HYDRO-GEAR 71938, 1 LITER
(Superseded to 5101998YP)

$69.99

$

In Stock, only 2 left!

0

17

Ferris 5025535

BOLT, 1/2-13 X 1-1/4, SF, PLT W/PATCH
(Superseded to 5025535YP)

$7.99

$

Usually ships in 2-12 days

0

18

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

20

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0
