F 320Z (5901711) - Ferris F320Z Series 61" Zero-Turn Mower, 30hp Kawasaki Rear Bumper & ROPS Group Parts Diagram

F320Z Series 61" Zero-Turn Mower, 30hp Kawasaki

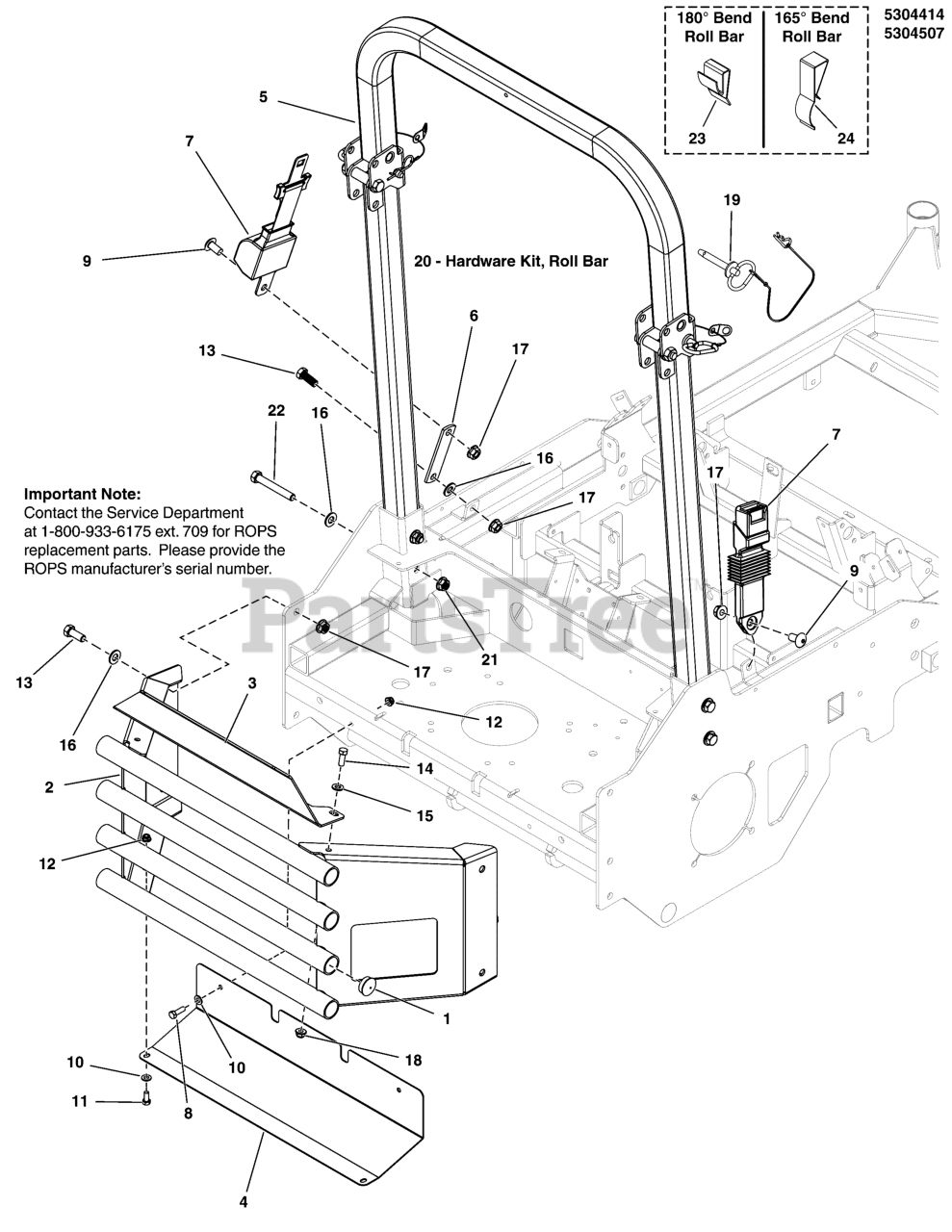

Rear Bumper & ROPS Group Parts Diagram

  • Title

1

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

Usually ships in 2-12 days

0

2

Ferris 5414682B

WELD, BUMPER, F320Z - RED
(Superseded to 5414682BFS)

$326.99

$

Usually ships in 2-12 days

0

3

Ferris 5414797B

PLATE, CARB PROTECTOR, F320Z - RED
(Superseded to 5414797BFS)

$40.99

$

Usually ships in 2-12 days

0

4

Ferris 5408526A

PLATE, HEAT SHIELD - BLK
(Superseded to 5408526AAFS)

$79.99

$

Usually ships in 2-12 days

0

5

Ferris 5105138

ROPS, S200XT & F320
(Superseded to 5105138FS)

Note: (Refer to Note: *)

$723.99

$

Usually ships in 2-12 days

0

6

Ferris 5401044A

EXTENSION, SEAT BELT - BLK
(Superseded to 5401044AYP)

Note: (S/N: 4000051453 and below)

$6.99

$

Usually ships in 2-12 days

0

7

Ferris 5105137

SEAT BELT ASSM, RETRACTOR + SUP SLEEVE
(Superseded to 5105137YP)

Note: (S/N: 4000051453 and below)

$130.99

$

Usually ships in 2-12 days

0

8

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5100267

SCREW, 1/2-13 X 1.00, SHCS
(Superseded to 5100267SM)

Note: (S/N: 4000051453 and below)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

12

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

14

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (Qty: 5 - S/N: 4000051453 and below)

$3.99

$

In Stock, only 4 left!

0

17

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

Note: (Qty: 6 - S/N: 4000051453 and below)

$3.49

$

In Stock, only 4 left!

0

18

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 5

0

19

Ferris 5100013

PIN, HITCH, .50 X 3.25 W/ LAY
(Superseded to 5100013SM)

Note: (SV)

$35.99

$

Usually ships in 2-12 days

0

20

Ferris 5103921X1

HARDWARE KIT, ROLL BAR

Note: (SV)

$124.99

$

Usually ships in 2-12 days

0

21

Ferris 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

Note: (SV)

$3.49

$

In Stock, only 2 left!

0

22

Ferris 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

Note: (SV)

$5.49

$

In Stock, only 2 left!

0

23

Ferris 5103403X1

ANTI-RATTLE SPRING, FEMCO #230328972 (SV)

Note: (180 Degree Bend Roll Bar)

$4.49

$

Usually ships in 2-12 days

0

24

Ferris 5105140X1

ANTI-RATTLE SPRING, ROPS, 165 DEGREE (SV)

Note: (165 Degree Bend Roll Bar)

$5.99

$

Usually ships in 2-12 days

0
