F 60Z (5901688) - Ferris F60Z Series 36" Zero-Turn Mower, 19hp Kawasaki, CARB Instrument Control Panel Group Parts Diagram

F60Z Series 36" Zero-Turn Mower, 19hp Kawasaki, CARB

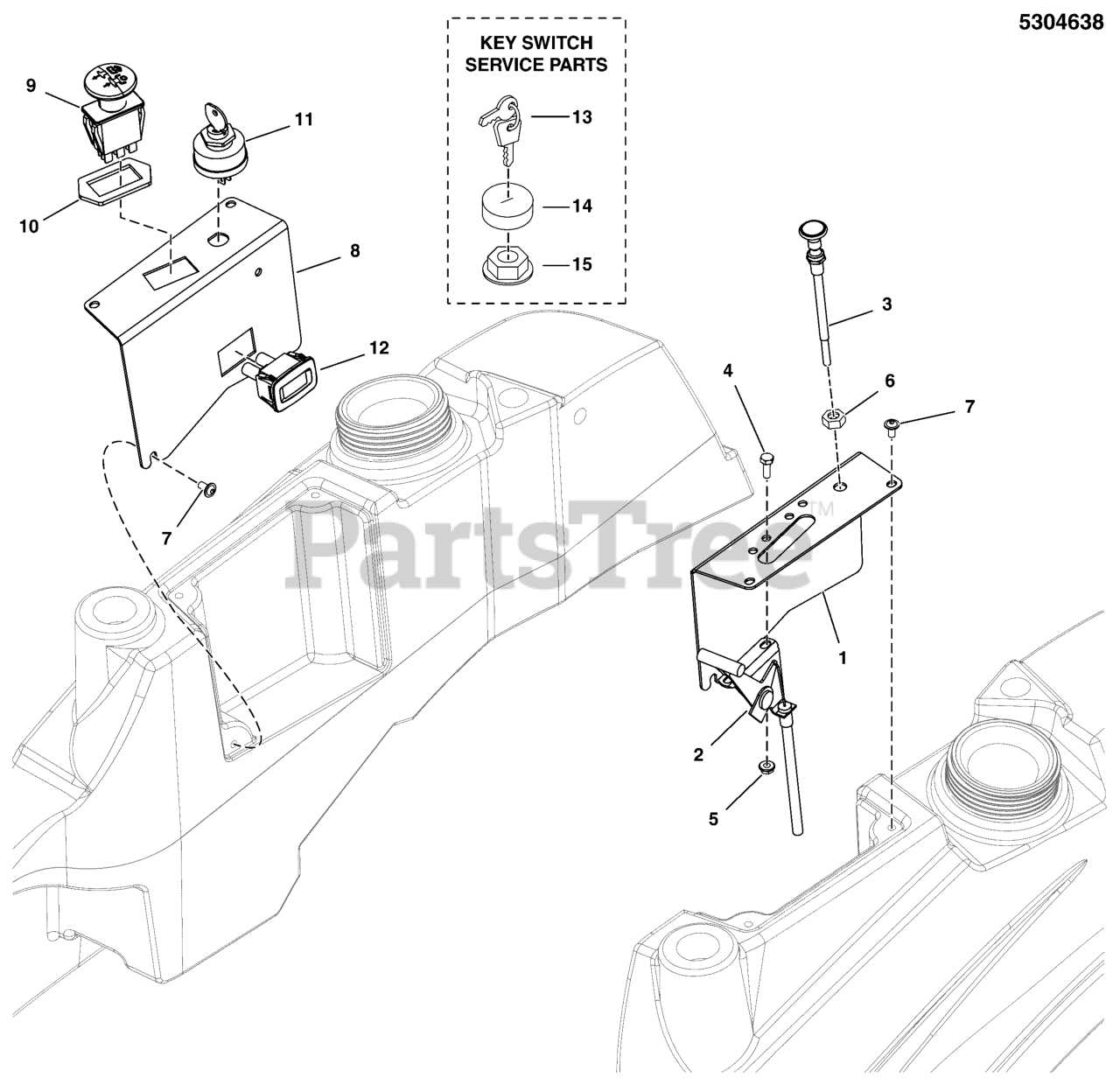

Instrument Control Panel Group Parts Diagram

  • Title

1

Ferris 5415256A

PLATE, CONTROL PANEL, LH, F60Z - BLK

$15.99

$

Usually ships in 2-12 days

0

2

Ferris 5105187

CABLE, THROTTLE CONTROL, 51"
(Superseded to 5105187FS)

$24.99

$

In Stock, only 1 left!

0

3

Ferris 5047779

CABLE, CHOKE CONTROL, 51" (Z)
(Superseded to 5047779SM)

$52.99

$

In Stock, only 1 left!

0

4

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

5

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025309

NUT, 3/8-24 Hex Jam
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

7

Ferris 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, only 3 left!

0

8

Ferris 5415736A

CONTROL PANEL, RH, F60Z - BLK

$45.99

$

Usually ships in 2-12 days

0

9

Ferris 1722887

SWITCH-PTO PUSH
(Superseded to 1722887SM)

$33.99

$

In Stock, only 3 left!

0

10

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

11

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref # 13 - 15)

$33.99

$

In Stock, only 1 left!

0

12

HOUR METER, ASSEMBLE

Note: (*See Footnote)

$

$

Not available

13

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

14

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

Usually ships in 2-12 days

0
