F 60Z (5901688) - Ferris F60Z Series 36" Zero-Turn Mower, 19hp Kawasaki, CARB Wheel & Tire Group Parts Diagram

F60Z Series 36" Zero-Turn Mower, 19hp Kawasaki, CARB

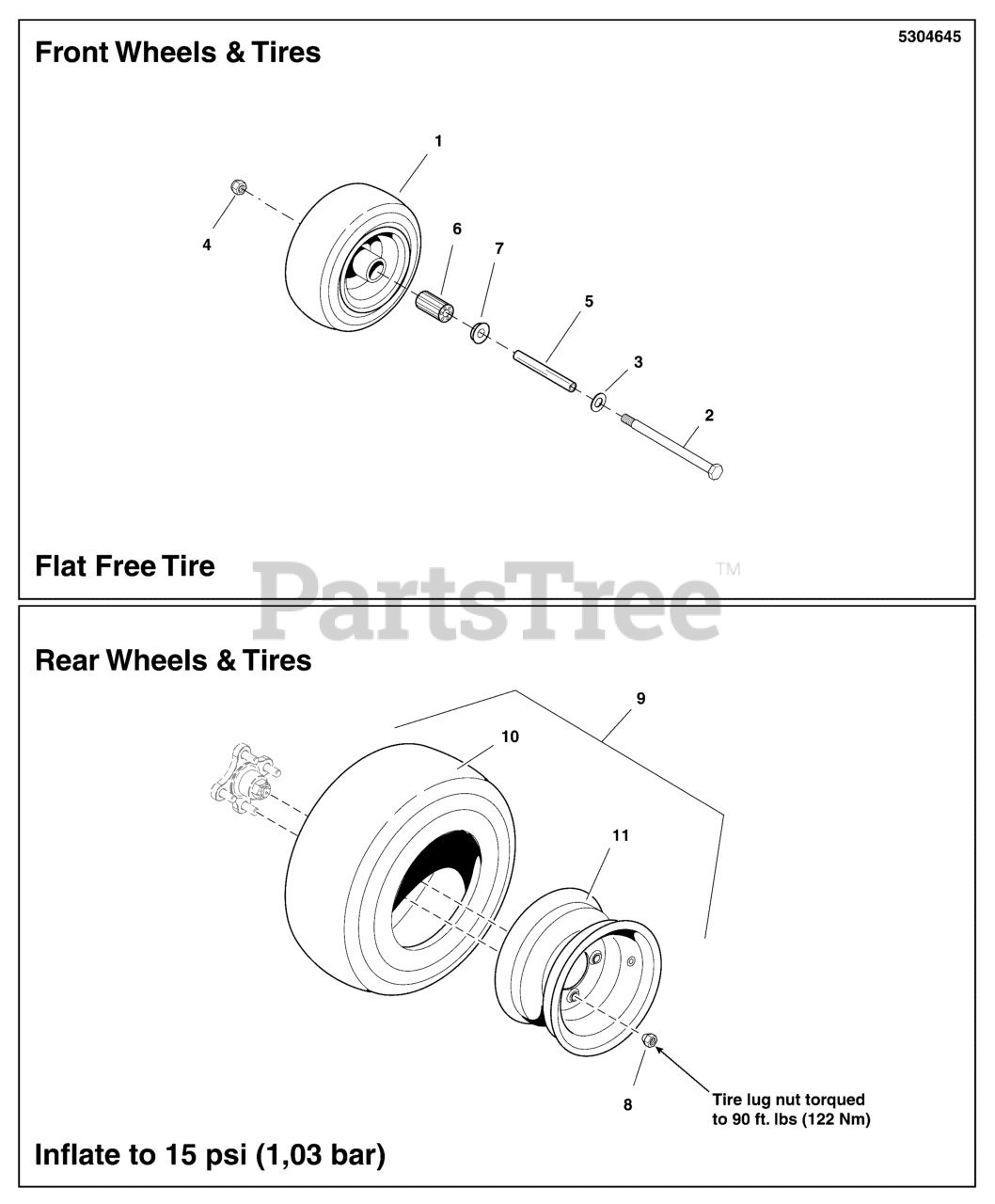

Wheel & Tire Group Parts Diagram

  • Title

1

Ferris 5100715

TIRE ASSM, 11 X 4 - 5, FF / CB
(Superseded to 5100715YP)

$154.99

$

In Stock, only 1 left!

0

2

Ferris 5025017X56

BOLT, 1/2-13 X 7 GD5 CZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, only 1 left!

0

3

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 5

0

4

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, only 4 left!

0

5

Ferris 5045996

CASTER AXLE DDSH
(Superseded to 5045996SM)

$15.99

$

Usually ships in 2-12 days

0

6

Ferris 5101418X1

BEARING, ROLLER

Note: (SV)

$27.99

$

Usually ships in 2-12 days

0

7

Ferris 5021043

BEARING, RETAINER

Note: (SV)

$6.99

$

Usually ships in 2-12 days

0

8

Ferris 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 9

0

9

Ferris 5101068

TIRE ASSM, 20 X 7 - 10, TURF, 4 BOLT
(Superseded to 5101068FS)

$284.99

$

Usually ships in 2-12 days

0

10

Ferris 5101068X1

TIRE, 20 X 7 -10 NHS, TURF MASTER

$225.99

$

Usually ships in 2-12 days

0

11

Ferris 5101068X2

WHEEL, 10 X 6.00 4/4 SOLID, F237

$228.99

$

Usually ships in 2-12 days

0
