F 800X (5901235) - Ferris F800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar Electrical Components Group Parts Diagram

F800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar

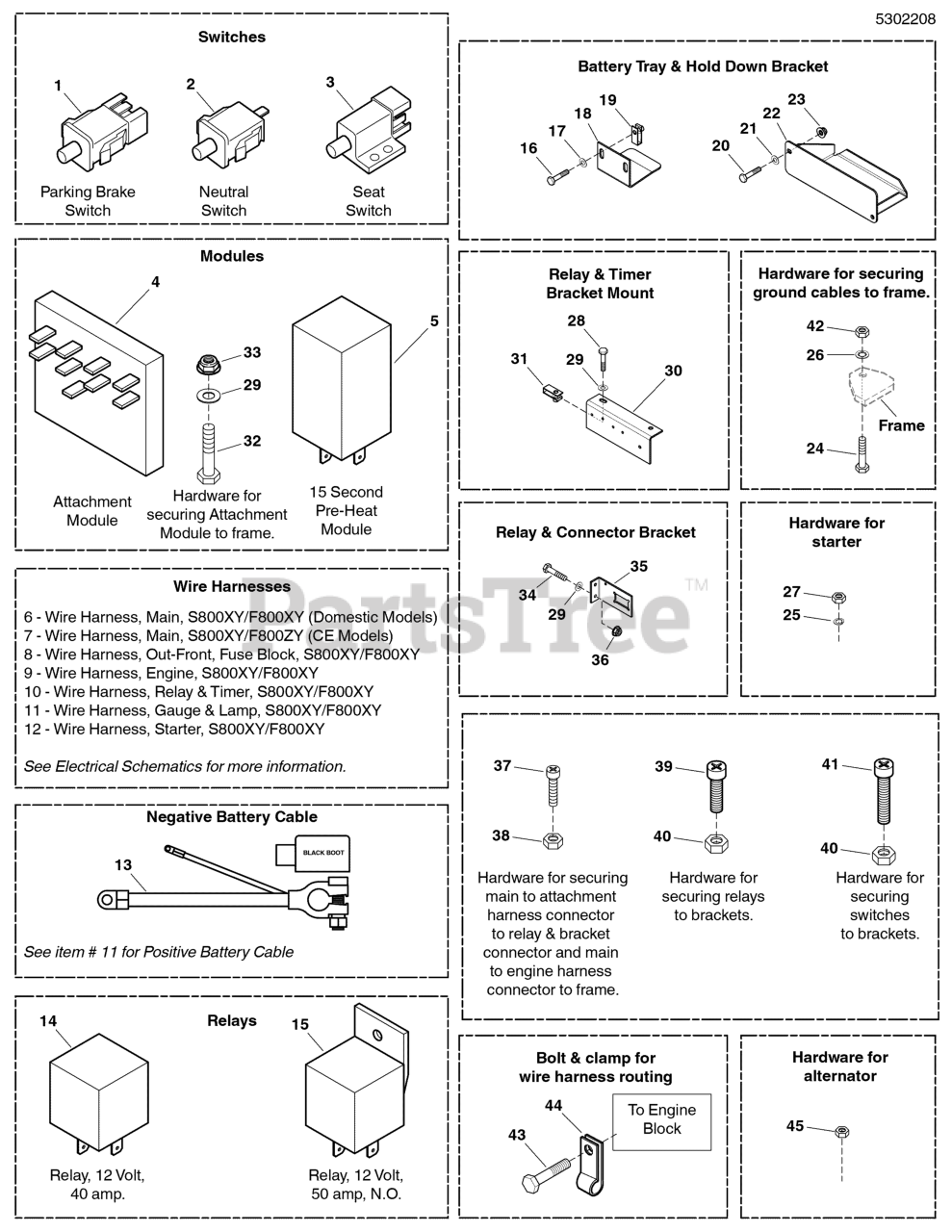

Electrical Components Group Parts Diagram

  • Title

1

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$15.99

$

In Stock, Qty 20+

0

2

Ferris 5101589

SWITCH, PLUNGER, NO, SINGLE POLE SNAP-IN
(Superseded to 84006599)

$13.99

$

In Stock, only 2 left!

0

3

Ferris 5022094

SWITCH, PLUNGER, N.C./N.C.
(Superseded to 5022094SM)

$15.99

$

In Stock, only 2 left!

0

4

Ferris 5103847

MODULE, ATTACHMENT, S800/F800, 1 SEC DEL
(Superseded to 5103847YP)

$263.99

$

Usually ships in 2-12 days

0

5

Ferris 5102590

MODULE, PRE-HEAT, 15 SECOND
(Superseded to 5102590YP)

$74.99

$

Usually ships in 2-12 days

0

6

Ferris 5406772

WIRE HARNESS, MAIN, S800XY/F800XY
(Superseded to 5406772YP)

$754.99

$

Usually ships in 2-12 days

0

7

Ferris 5406815

WIRE HARNESS, MAIN, S800XY/F800XY

Note: (CE MODELS - S/N: 2014671676 & BELOW ONLY)

$

$

Currently unavailable

8

Ferris 5404004

WIRE HARNESS, OUT-FRONT, FUSE BLOCK, S800XY/F800XY
(Superseded to 5404004YP)

$128.99

$

Usually ships in 2-12 days

0

9

Ferris 5406773

WIRE HARNESS, ENGINE, S800XY/F800XY
(Superseded to 5406773YP)

$432.99

$

Usually ships in 2-12 days

0

10

Ferris 5406774

WIRE HARNESS,RELAY & TIMER, S800XY/F800XY
(Superseded to 5406774YP)

$287.99

$

Usually ships in 2-12 days

0

11

Ferris 5406775

WIRE HARNESS, GAUGE & LAMP, S800XY/F800XY
(Superseded to 5406775YP)

$71.99

$

Usually ships in 2-12 days

0

12

Ferris 5406887

WIRE HARNESS, STARTER, S800XY/F800XY

$

$

Currently unavailable

13

Ferris 5102156

BATTERY CABLE, NEGATIVE
(Superseded to 5102156YP)

$61.99

$

Usually ships in 2-12 days

0

14

Ferris 5021766

RELAY, 12 VOLT, 40 AMP
(Superseded to 5021766SM)

$25.99

$

In Stock, Qty 5

0

15

Ferris 5100980

RELAY, 12 VOLT, 50 AMP, N.O.
(Superseded to 5100980YP)

$47.99

$

Usually ships in 2-12 days

0

16

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5025155

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

18

Ferris 5405840B

BRACKET, BATTERY, HOLD-DOWN - RED

$

$

Currently unavailable

19

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 20+

0

20

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 16

0

21

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5405814B

WELD, BATTERY TRAY - RED

$

$

Currently unavailable

23

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

24

Ferris 1931202

SCREW-HEX WSHR HD TAPTT5/16-18X1.250BLK
(Superseded to 703167)

$3.99

$

In Stock, Qty 20+

0

25

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 20+

0

26

Ferris 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$4.49

$

Usually ships in 2-12 days

0

27

Ferris 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

29

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

30

Ferris 5406776B

BRACKET, RELAY & TIMER MOUNT - RED

$

$

Currently unavailable

31

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2, GD5
(Superseded to 5025010X12SM)

$3.49

$

In Stock, Qty 12

0

33

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 20+

0

34

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, Qty 20+

0

35

Ferris 5406124B

BRACKET, RELAY AND CONNECTOR MOUNT -RED

$

$

Currently unavailable

36

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 20+

0

37

Ferris 5025338X5

SCREW,#8-32 X 5/8 PHILLIPS, PAN HEAD, ZP
(Superseded to 5025338X5YP)

$3.49

$

Usually ships in 2-12 days

0

38

Ferris 5025339

NUT, #8-32 HEX NYLON LOCK
(Superseded to 5025339YP)

$2.99

$

Usually ships in 2-12 days

0

39

Ferris 5025179X4

SCREW- #10-24 X 1/2 ROUND PHILLIPS

$

$

Currently unavailable

40

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

41

Ferris 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$7.49

$

Usually ships in 2-12 days

0

42

Ferris 80018785

NUT-HEX KEPS 5/16-18 CL/ZC

$

$

Currently unavailable

43

Ferris 80005611

SCREW, Hex Head, M8 X 20

$

$

Currently unavailable

44

Ferris 5025558

CLAMP, TUBE & WIRING, 1.062 ID
(Superseded to 5025558YP)

$4.99

$

Usually ships in 2-12 days

0

45

Ferris 5025420

NUT, M6-1.0

$

$

Currently unavailable
