F 800X (5901236) - Ferris F800X Series Front Mount Zero-Turn Riding Mower, 31hp Briggs & Stratton Fuel Tank & Hood Group (Gas Models) Parts Diagram

F800X Series Front Mount Zero-Turn Riding Mower, 31hp Briggs & Stratton

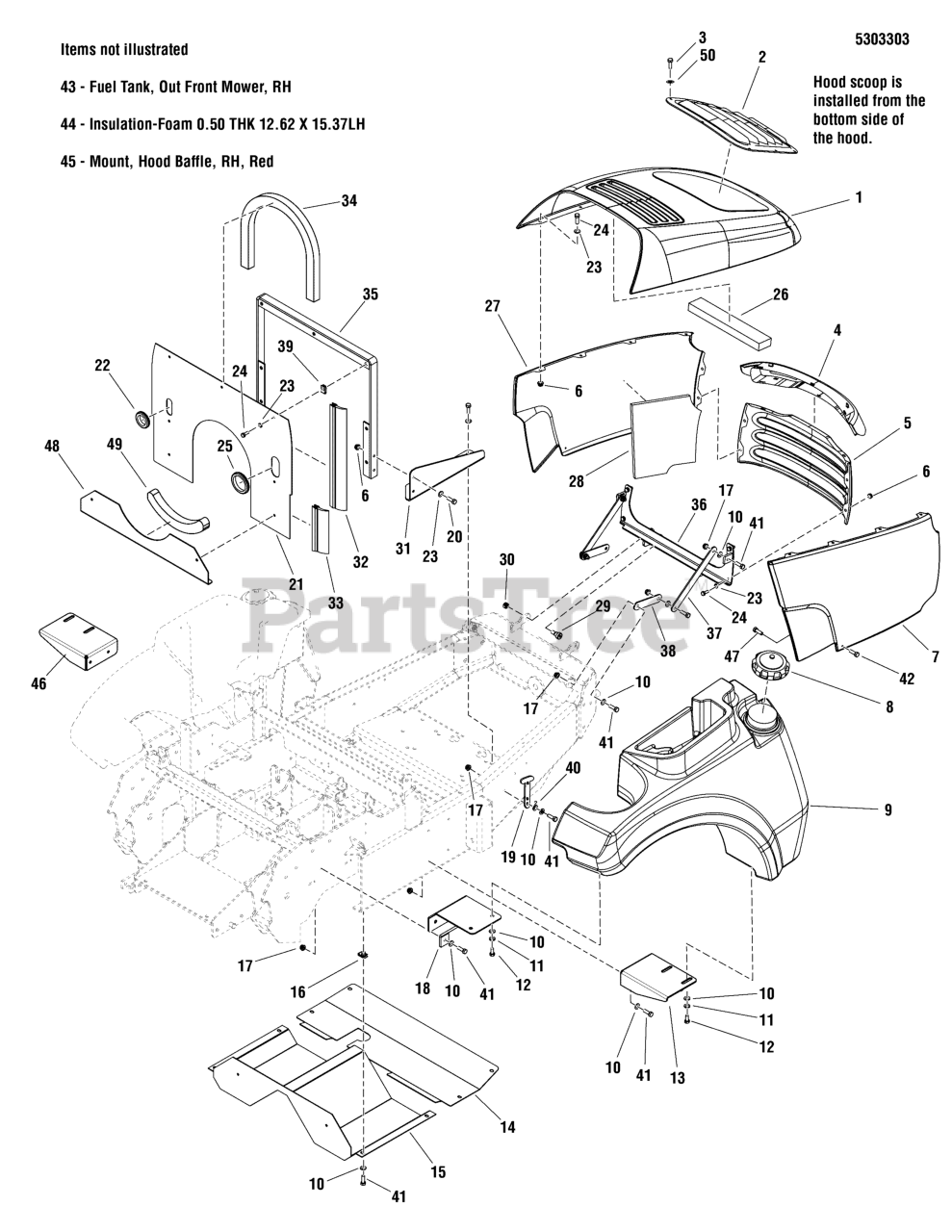

Fuel Tank & Hood Group (Gas Models) Parts Diagram

  • Title

1

Ferris 5600713

HOOD, BOXED, F800X - FER RED

Note: (5404654B)

$652.99

$

Usually ships in 2-12 days

0

2

Ferris 5101768

SCOOP, HOOD, OUTFRONT MOWER
(Superseded to 5101768YP)

$142.99

$

Usually ships in 2-12 days

0

3

Ferris 1675044

RIVET-POP.188 .429L AL,AL STEM.37HD DIA
(Superseded to 1675044SM)

Note: (S/N: 2017288787 & Below)

$3.99

$

In Stock, only 2 left!

0

3

Ferris 5025622

POP RIVET, 3/16" X .575"(.251-.375GP)BLK
(Superseded to 5025622YP)

Note: (S/N: 2017288787 & Above)(1/4 washer not required with this pop rivet)

$2.49

$

Usually ships in 2-12 days

0

4

Ferris 5101777

MACHINED BLACK LENS, OUT FRONT MOWER
(Superseded to 5101777YP)

$127.99

$

Usually ships in 2-12 days

0

5

Ferris 5101782B

GRILLE, PERF METAL, OUT FRONT MOWER - RED
(Superseded to 5101782BFS)

$195.99

$

Usually ships in 2-12 days

0

6

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 1725822B

PANEL-SIDE, 18GA LEGACY - PLAIN
(Superseded to 1725822BFS)

$139.99

$

Usually ships in 2-12 days

0

8

Ferris 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

9

Ferris 5103175

FUEL TANK, OUT FRONT MOWER, LH
(Superseded to 5103175YP)

$711.99

$

Usually ships in 2-12 days

0

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

13

Ferris 5404882B

WELD, TANK MOUNT, LH - RED

$

$

Currently unavailable

14

Ferris 5405250B

PLATE, GUARD, PERFORATED - RED

$

$

Currently unavailable

15

Ferris 5404561B

DEBRIS GUARD, PUMP - RED
(Superseded to 5404561BFS)

$136.99

$

Usually ships in 2-12 days

0

16

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

17

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5404225B

MOUNT, FUEL TANK WELDMENT - FRONT - RED

$

$

Currently unavailable

19

Ferris 2171600

STRAP,HOOD,BLACK RUBBERCLAMP, HOSE, 1.000 DIA.
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

20

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5404539B

PLATE, HOOD BAFFLE, LOWER - RED

$

$

Currently unavailable

22

Ferris 5021397

GROMMET, 1-1/4"
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

23

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

Note: (Qty: 24 - S/N: 2017288787 & Below)

$4.49

$

Usually ships in 2-12 days

0

24

Ferris 1960295

SCREW-HEX WZ LOCK FLNG 1/4-20X0.625 BLK
(Superseded to 1960295SM)

$4.49

$

Usually ships in 2-12 days

0

25

Ferris 5100716

GROMMET, 2" ID
(Superseded to 5100716YP)

$5.49

$

Usually ships in 2-12 days

0

26

Ferris 5101774

FOAM HOOD SEAL, OUT FRONT MOWER
(Superseded to 5101774FS)

$40.99

$

Usually ships in 2-12 days

0

27

Ferris 1725821B

PANEL-SIDE, 18GA LEGACY - PLAIN
(Superseded to 1725821BFS)

$139.99

$

Usually ships in 2-12 days

0

28

Ferris 1727054

INSULATION-FOAM 0.50 THK 12.62 X 15.37RH
(Superseded to 1727054SM)

$45.99

$

Usually ships in 2-12 days

0

29

Ferris 5025356

BOLT, 3/8-16 X 3/8", 1/2" SHOULDER
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

30

Ferris 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

Usually ships in 2-12 days

0

31

Ferris 5404537B

MOUNT, HOOD BAFFLE, LH - RED

$

$

Currently unavailable

32

Ferris 5050923X14P75

SEAL, WIPER, CLIP ON, 14.75

$6.49

$

Usually ships in 2-12 days

0

33

Ferris 5050926X6

SEAL, WIPER, CLIP ON, 6
(Superseded to 5050926X6YP)

$11.99

$

Usually ships in 2-12 days

0

34

Ferris 5101773

SEAL, FLYWHEEL SCREEN, FOAM

$

$

Currently unavailable

35

Ferris 5404544B

WELD., HOOD BAFFLE FRAME - RED

$

$

Currently unavailable

36

Ferris 5404242B

WELD, HOOD MOUNT - RED
(Superseded to 5404242BFS)

$61.99

$

Usually ships in 2-12 days

0

37

Ferris 5404236B

LINK, HINGE, LONG - RED

$

$

Currently unavailable

38

Ferris 5404235B

LINK, HINGE, SHORT - RED

$

$

Currently unavailable

39

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

40

Ferris 1723168

HOOK-.125DIA WIRE GR CAT STRAP YELLOW
(Superseded to 1723168SM)

$9.99

$

Usually ships in 2-12 days

0

41

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

42

Ferris 1726044

BINDING POST #8-32X.500 INT THR BLK
(Superseded to 1726044SM)

$3.99

$

Usually ships in 2-12 days

0

43

Ferris 5103174

FUEL TANK, OUT FRONT MOWER, RH

Note: (Not Shown)

$

$

Currently unavailable

44

Ferris 1727053

INSULATION-FOAM 0.50 THK 12.62 X 15.37LH
(Superseded to 1727053SM)

Note: (Not Shown)

$36.99

$

Usually ships in 2-12 days

0

45

Ferris 5404538B

MOUNT, HOOD BAFFLE, RH - RED
(Superseded to 5404538BFS)

Note: (Not Shown)

$26.99

$

Usually ships in 2-12 days

0

46

Ferris 5404883B

WELD, TANK MOUNT, RH - RED

$

$

Currently unavailable

47

Ferris 2860707

SCREW-HEX SERR FLNG LK # 8-32X0.375 YEL
(Superseded to 2860707SM)

$3.49

$

In Stock, only 2 left!

0

48

Ferris 5405016B

PLATE HOOD BAFFLE, BOTTOM - RED

$

$

Currently unavailable

49

Ferris 5101974

FOAM, ENGINE FAN SEAL, OUTFRONT, BOTTOM

$5.49

$

Usually ships in 2-12 days

0

50

Ferris 5023499

WASHER, #10 SAE
(Superseded to 5023499SM)

$3.49

$

Usually ships in 2-12 days

0
