F2-12K501 (212-5 SB) - Toro Garden Tractor (1988) KAWASAKI FB460V TYPE AS-13 ENGINE Parts Diagram

Garden Tractor

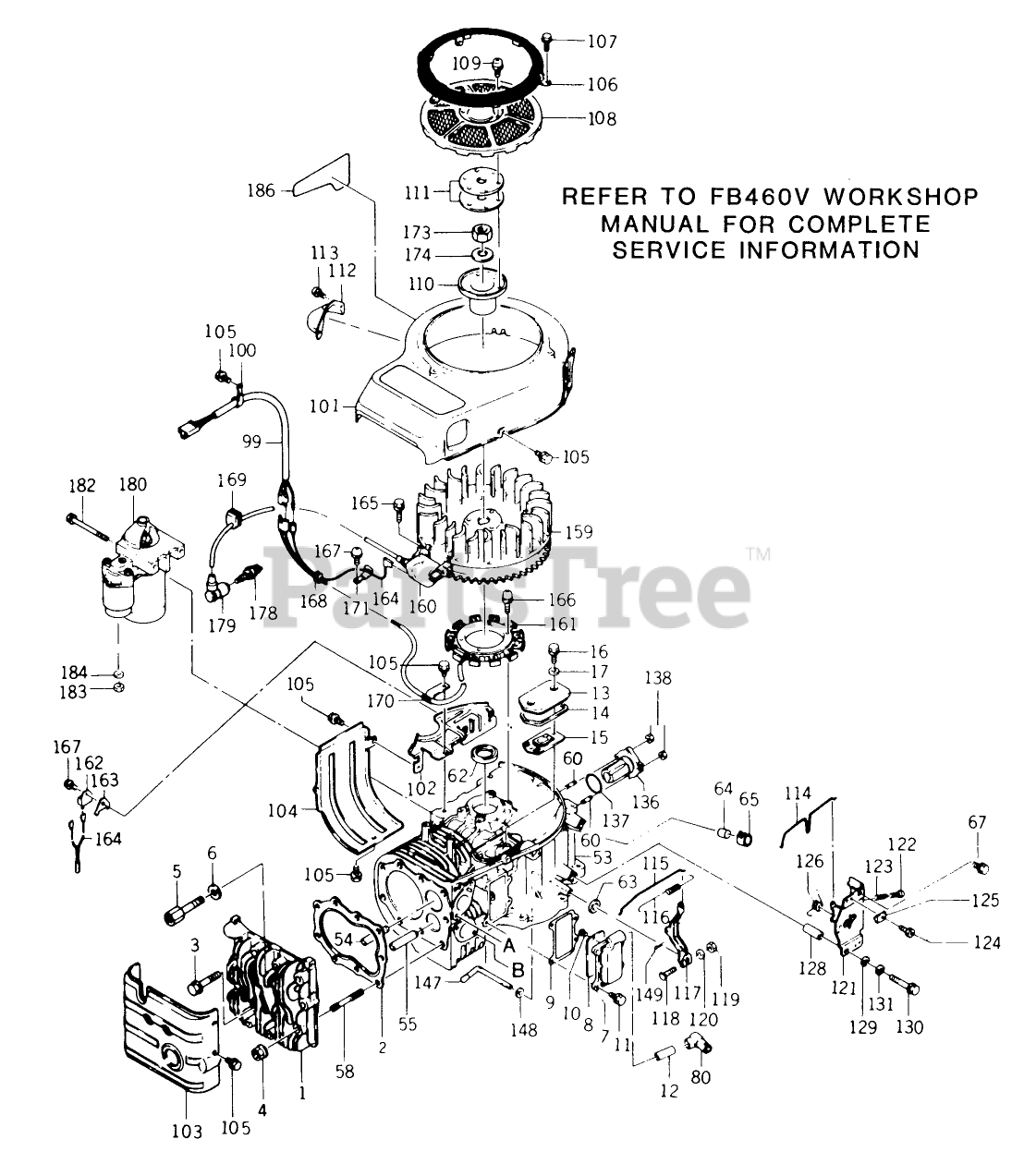

KAWASAKI FB460V TYPE AS-13 ENGINE Parts Diagram

  • Title

1

Toro 11001-2076

Head-Cylinder

$

$

Currently unavailable

2

Toro 11004-2079

Gasket

$

$

Currently unavailable

3

Toro 130G1055

Bolt

$

$

Currently unavailable

4

Toro 92015-2115

Nut

$

$

Currently unavailable

5

Toro 92002-2258

Bolt

$

$

Currently unavailable

6

Toro 410B1000

Washer

$

$

Currently unavailable

7

Toro 49108-2011

Cover-Valve Chamber

$

$

Currently unavailable

8

Toro 14025-2143

Cover

$

$

Currently unavailable

9

Toro 11009-2502

Gasket

$

$

Currently unavailable

10

Toro 314405-3092A

Screw

$

$

Currently unavailable

11

Toro 130G0616

Bolt-Flanged (6X16)

$

$

Currently unavailable

12

Toro 92059-2142

Tube

$

$

Currently unavailable

13

Toro 14025-2040

Cover

$

$

Currently unavailable

14

Toro 11009-2339

Gasket

$

$

Currently unavailable

15

Toro 14069-2062

Breather

$

$

Currently unavailable

16

Toro 315501-5381A

Bolt

$

$

Currently unavailable

17

Toro 312200-7415-02

Gasket

$

$

Currently unavailable

53

Toro 49120-6024

Crankcase Complete (includes items 54 55).

$

$

Currently unavailable

54

Toro 49002-2070

Guide-Intake Valve

$

$

Currently unavailable

55

Toro 49002-2071

Guide-Exhaust Valve

$

$

Currently unavailable

58

Toro 92004-2082

Stud

$

$

Currently unavailable

60

Toro 92004-2083

Stud

$

$

Currently unavailable

62

Toro 92049-2096

Oil Seal

$

$

Currently unavailable

63

Toro 92049-2097

SEAL-OIL (VC6X10X2.6)

$

$

Currently unavailable

64

Toro 92066-2096

Plug

$

$

Currently unavailable

65

Toro 317196-6812-00

Clip

$

$

Currently unavailable

67

Toro 130B0610

BOLT-FLANGED (6X10)

$

$

Currently unavailable

80

Toro 59071-2062

Joint

$

$

Currently unavailable

99

Toro 26001-2113

Harness

$

$

Currently unavailable

100

Toro 313646-8161-00

Clamp

$

$

Currently unavailable

101

Toro 59066-2361-9H

Fan Housing

$

$

Currently unavailable

102

Toro 59066-2295-9H

Fan Housing

$

$

Currently unavailable

103

Toro 49089-2181-9H

Shroud

$

$

Currently unavailable

104

Toro 49089-2199-9H

Shroud

$

$

Currently unavailable

105

Toro 130B0610

BOLT-FLANGED (6X10)

$

$

Currently unavailable

106

Toro 55020-2071-9H

Guard

$

$

Currently unavailable

107

Toro 130BO508

Bolt 5x8

$

$

Currently unavailable

108

Toro 14037-2104-9H

Screen

$

$

Currently unavailable

109

Toro 224BO616

Screw 6x16

$

$

Currently unavailable

110

Toro 11043-2163

Bracket

$

$

Currently unavailable

111

Toro 92025-2003

Shim T-1.20

$

$

Currently unavailable

112

Toro 14024-2028-9H

Cover

$

$

Currently unavailable

113

Toro 234BO408

Screw 4x8

$

$

Currently unavailable

114

Toro 16169-2074

LINK-Choke

$

$

Currently unavailable

115

Toro 16171-2001

Link

$

$

Currently unavailable

116

Toro 92081-2213

Spring

$

$

Currently unavailable

117

Toro 21187-2052

Arm ASM

$

$

Currently unavailable

118

Toro 92002-2269

Bolt (6X28)

$

$

Currently unavailable

119

Toro 311BO600

Nut 6 mm

$

$

Currently unavailable

120

Toro 411BO600

Washer

$

$

Currently unavailable

121

Toro 49113-2065

Control Panel Assy (includes items 122, 123, 124, 125 126)

$

$

Currently unavailable

122

Toro 220BO425

Screw 4x25

$

$

Currently unavailable

123

Toro 314401-5321B

Spring

$

$

Currently unavailable

124

Toro 310701-1225A

Bolt

$

$

Currently unavailable

125

Toro 92037-2020

Clamp

$

$

Currently unavailable

126

Toro 92081-2316

Spring

$

$

Currently unavailable

128

Toro 92027-2071

Collar

$

$

Currently unavailable

129

Toro 311509-3595-00

Washer

$

$

Currently unavailable

130

Toro 112BO650

Bolt 6x50

$

$

Currently unavailable

131

Toro 461FO600A

Spring Washer

$

$

Currently unavailable

136

Toro 13107-2091

Shaft

$

$

Currently unavailable

137

Toro 92055-2072

O-Ring

$

$

Currently unavailable

138

Toro 92015-1193

Nut

$

$

Currently unavailable

147

Toro 39003-2062

Arm-Pivot

$

$

Currently unavailable

148

Toro 410BO600

Washer

$

$

Currently unavailable

149

Toro 554A0600

Pin-Snap (1.2 X 21.2)

$

$

Currently unavailable

159

Toro 21193-2001

Flywheel Complete

$

$

Currently unavailable

160

Toro 21121-2008

Coil

$

$

Currently unavailable

161

Toro 59031-2003

Charging Coil

$

$

Currently unavailable

162

Toro 21119-2095

Igniter

$

$

Currently unavailable

163

Toro 310702-8137A

Bracket

$

$

Currently unavailable

164

Toro 26011-2119

Lead Wire

$

$

Currently unavailable

165

Toro 130BO525

Bolt 5x25

$

$

Currently unavailable

166

Toro 224BO620

Screw 6x20

$

$

Currently unavailable

167

Toro 234BO408

Screw 4x8

$

$

Currently unavailable

168

Toro 92071-2099

Grommet

$

$

Currently unavailable

169

Toro 92071-2100

Grommet

$

$

Currently unavailable

170

Toro 92037-2158

Clamp

$

$

Currently unavailable

171

Toro 311901-8161A

Clamp

$

$

Currently unavailable

173

Toro 314G1800

Nut

$

$

Currently unavailable

174

Toro 92022-2178

Washer

$

$

Currently unavailable

178

Toro 92070-2072

Spark Plug

$

$

Currently unavailable

180

Toro 21163-2070

Electric Starter Assy-see section 9-7 for parts breakdown

$

$

Currently unavailable

182

Toro 92002-2278

Bolt

$

$

Currently unavailable

183

Toro 317BO600

Nut 8 mm

$

$

Currently unavailable

184

Toro 920008

WASHER 5/16 SAE

$0.99

$
