F200 A (F200) - Honda Tiller, Made in Japan (SN: F200-2000003 - F200-9999999) CYLINDER + CYLINDER HEAD Parts Diagram

Tiller, Made in Japan

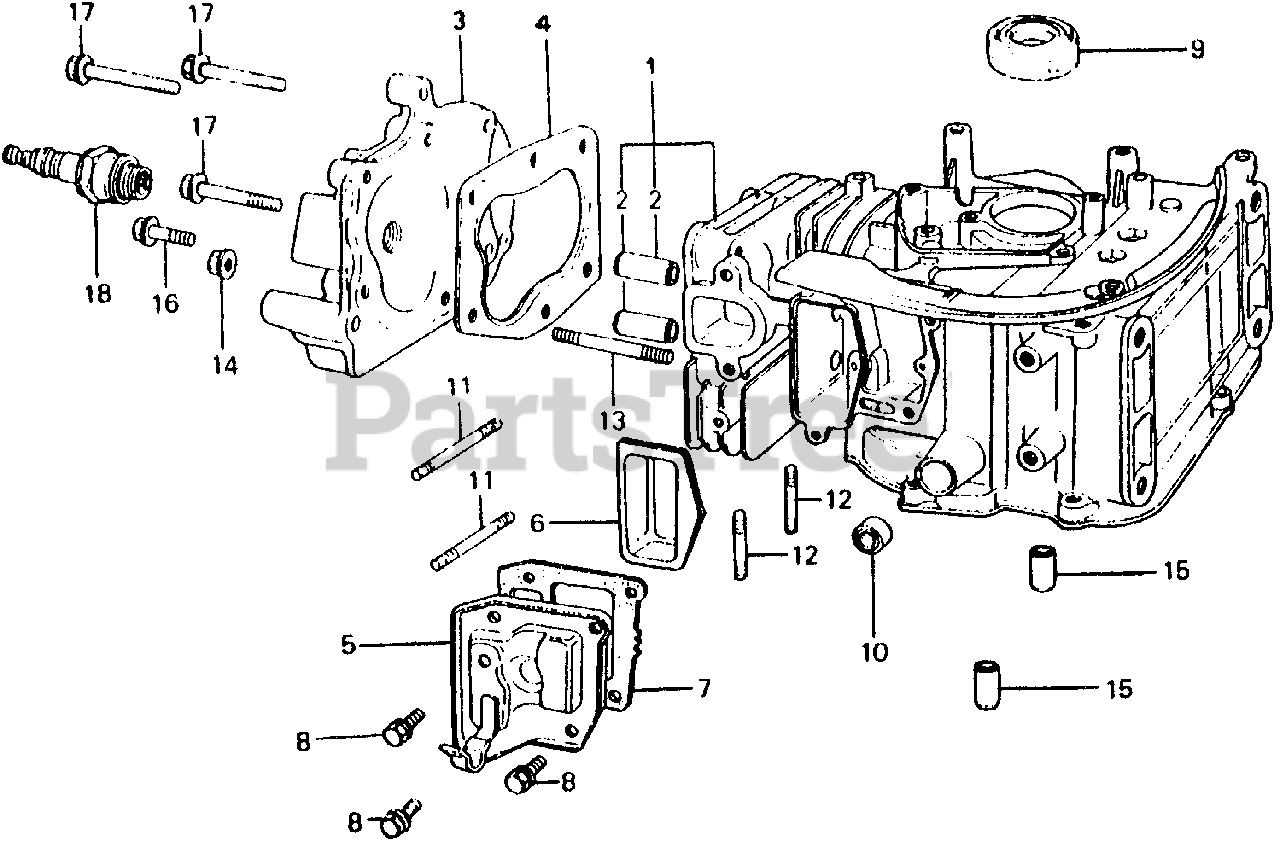

CYLINDER + CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12100-896-315

CYLINDER

$

$

Currently unavailable

2

Honda 12133-896-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$12.99

$

Usually ships in 3-6 days

0

2

Honda 12134-896-305

SEE PART DETAILS - SUP; GUIDE, VALVE

$

$

Currently unavailable

3

Honda 12221-896-700

CYLINDER HEAD (NOT AVAILABLE)

$46.99

$

Usually ships in 3-6 days

0

4

Honda 12281-896-306

GASKET, CYLINDER HEAD

$

$

Not available

5

Honda 12361-896-750

COVER, TAPPET (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 12365-896-000

SEPARATOR (INNER)

Note: Use up to Engine SN 1014735.

$

$

Currently unavailable

6

Honda 12370-896-000

SEPARATOR (INNER) (NOT AVAILABLE)

Note: Use from Engine SN 1014736.

$

$

Currently unavailable

7

Honda 12375-896-700

GASKET, TAPPET COVER (NOT AVAILABLE)

$

$

Not available

8

Honda 90002-892-000

BOLT, FLANGE (5X10)

$2.49

$

In Stock, only 4 left!

0

9

Honda 91202-892-004

OIL SEAL (17X30X6) (NOK)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 91231-816-000

OIL SEAL

$

$

Not available

11

Honda 92700-05040-0B

BOLT, STUD (5X40) (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 92700-06028-0B

SEE PART DETAILS - SUP; BOLT, STUD (6X28)
(Superseded to 92900-06016-0B)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 92900-06028-3B

BOLT, STUD (6X45) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

14

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 9

0

15

Honda 94301-08140

PIN A, DOWEL (8X14)

$3.49

$

In Stock, Qty 5

0

16

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)
(Superseded to 95701-06012-00)

$2.49

$

In Stock, Qty 20+

0

16

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

17

Honda 95700-06035-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X35)
(Superseded to 95701-06035-08)

Note: Use up to Engine SN 1001095.

$2.49

$

In Stock, Qty 5

0

17

Honda 95701-06035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35)

$2.49

$

In Stock, Qty 5

0

18

Honda 98073-54744

SPARK PLUG (BMR4A) (NGK)

$3.99

$

In Stock, Qty 12

0

18

Honda 98073-54754

SPARK PLUG (W14MR-U) (DENSO)

$3.99

$

Usually ships in 3-6 days

0
