F200 A (F200) - Honda Tiller, Made in Japan (SN: F200-2000003 - F200-9999999) RECOIL STARTER Parts Diagram

Tiller, Made in Japan

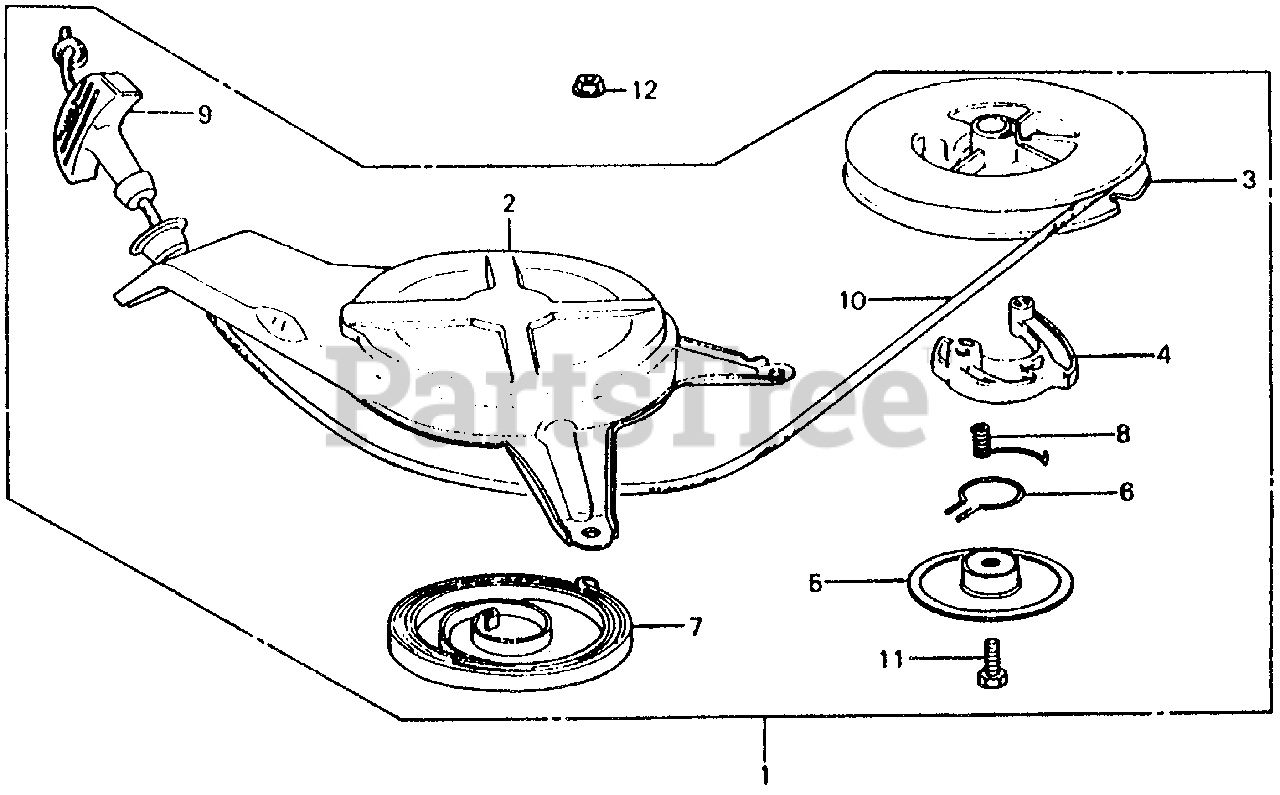

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-896-752

STARTER ASSY., RECOIL (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 28410-896-750

CASE, RECOIL STARTER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 28420-896-010

PULLEY, RECOIL STARTER

$

$

Not available

4

Honda 28422-896-010

RATCHET, STARTER

$7.49

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION

$5.99

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION

$7.99

$

Usually ships in 3-6 days

0

7

Honda 28442-896-000

SPRING, RETURN

$

$

Not available

8

Honda 28443-896-000

SPRING, RETURN

$4.49

$

In Stock, only 1 left!

0

9

Honda 28461-896-000

KNOB, STARTER (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 28462-ZA7-003

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#4X55")
(Superseded to 28462-ZE6-T02)

$5.99

$

In Stock, only 1 left!

0

10

Honda 28462-ZE6-T02

SEE PART DETAILS - PRI; ROPE (#4X55")

$5.99

$

In Stock, only 1 left!

0

11

Honda 92101-06012-0H

BOLT, HEX. (6X20)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94050-05080

NUT, FLANGE (5MM)

$0.99

$

In Stock, Qty 10

0
