F200 A (F200) - Honda Tiller, Made in Japan (SN: F200-2000003 - F200-9999999) REDUCTION CASE + TINE SHAFT Parts Diagram

Tiller, Made in Japan

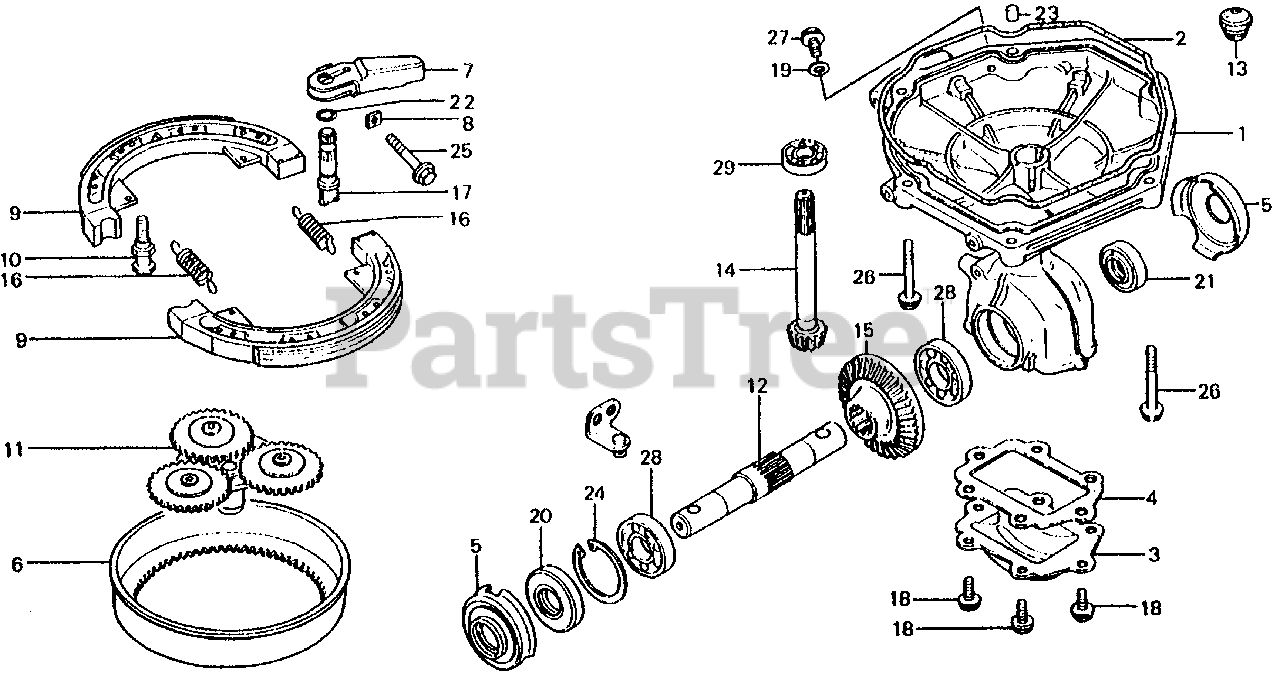

REDUCTION CASE + TINE SHAFT Parts Diagram

  • Title

1

Honda 211A1-729-721

CASE, REDUCTION

Note: Use from Frame SN 2012179.

$

$

Not available

1

Honda 21111-729-305

CASE, REDUCTION

Note: Use up to Frame SN 2012178.

$

$

Not available

2

Honda 21271-729-000

O-RING (208MM)

$13.99

$

Usually ships in 3-6 days

0

3

Honda 21282-729-000

COVER (LOWER)

$25.99

$

Usually ships in 3-6 days

0

4

Honda 21289-729-921

GASKET, COVER

$

$

Not available

5

Honda 21911-729-000

GUARD, GRASS

$13.99

$

In Stock, only 3 left!

0

6

Honda 22101-729-720

CLUTCH (OUTER)

$79.99

$

Usually ships in 3-6 days

0

7

Honda 22520-729-000

ARM, CLUTCH

$

$

Not available

8

Honda 22524-729-000

PLATE, ARM LOCK

$

$

Not available

9

Honda 225A0-729-003

SEE PART DETAILS - SUP; SHOE SET, CLUTCH

$

$

Currently unavailable

10

Honda 22533-729-000

PIN, ANCHOR

$13.99

$

In Stock, only 1 left!

0

11

Honda 22610-729-000

SEE PART DETAILS - SUP; PLATE, DRIVE

$

$

Currently unavailable

12

Honda 23371-729-000

SHAFT, TINE

$

$

Not available

13

Honda 25611-729-000

CAP, TRANSMISSION OIL
(Superseded to 25611-729-010)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 41131-729-000

PINION, BEVEL

$97.99

$

Usually ships in 3-6 days

0

15

Honda 41141-729-000

GEAR, BEVEL

$101.99

$

Usually ships in 3-6 days

0

16

Honda 45133-329-000

SPRING, FR. BRAKE SHOE

$3.49

$

In Stock, only 2 left!

0

17

Honda 45141-729-003

SEE PART DETAILS - SUP; CAM, CLUTCH

$

$

Currently unavailable

18

Honda 90011-729-000

BOLT, SPECIAL (6X14)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90481-705-000

WASHER (10.5MM)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 91253-729-003

OIL SEAL (20X47X7)

$10.99

$

In Stock, only 2 left!

0

21

Honda 91257-729-003

DUST SEAL (20X40X11)

$14.99

$

In Stock, only 2 left!

0

22

Honda 91302-GE0-000

O-RING (8.8X1.9)

$4.99

$

In Stock, only 4 left!

0

23

Honda 94301-08120

PIN A, DOWEL (8X12)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 94520-47000

CIRCLIP (INNER) (47MM)

$2.99

$

In Stock, only 2 left!

0

25

Honda 95701-06032-00

BOLT, FLANGE (6X32)

$2.49

$

In Stock, Qty 5

0

26

Honda 95701-06045-07

BOLT, FLANGE (6X45)

$2.99

$

In Stock, only 1 left!

0

27

Honda 95701-10016-08

BOLT, FLANGE (10X16)

$2.99

$

In Stock, only 1 left!

0

28

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$15.99

$

In Stock, only 2 left!

0

29

Honda 96100-63020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6302)

$10.99

$

Usually ships in 3-6 days

0
