F220 A/A (FAAJ) - Honda 21" Tiller, Made in Japan (SN: FAAJ-1011998 - FAAJ-1049999) CARBURETOR Parts Diagram

21" Tiller, Made in Japan

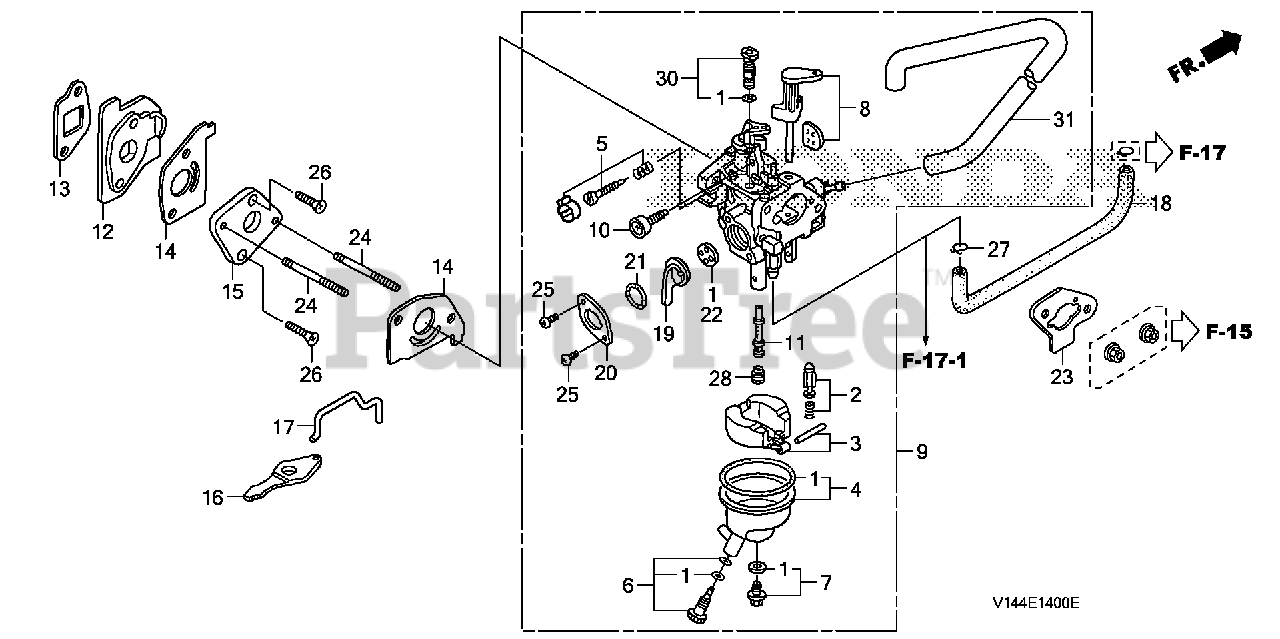

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZG1-D20

GASKET SET

$19.99

$

In Stock, only 2 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$32.99

$

In Stock, Qty 6

0

3

Honda 16013-ZG0-811

FLOAT SET

$6.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZG1-D20

CHAMBER SET, FLOAT

$45.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH8-W01

SCREW SET

$13.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZH7-A20

SCREW SET, DRAIN

$12.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZW6-611

SEE PART DETAILS - PRI; SCREW SET

$16.99

$

In Stock, only 1 left!

0

8

Honda 16044-Z0G-003

CHOKE SET

$34.99

$

Usually ships in 3-6 days

0

9

Honda 16100-Z0G-013

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BF24A B)
(Superseded to 16100-Z0G-023)

$60.99

$

In Stock, only 2 left!

0

9

Honda 16100-Z0G-023

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BF24A B)

$60.99

$

In Stock, only 2 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$20.99

$

In Stock, only 2 left!

0

11

Honda 16166-Z0G-003

NOZZLE, MAIN

$27.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZN4-000

INSULATOR, CARBURETOR

$10.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZM7-000

GASKET, INSULATOR

$2.99

$

In Stock, only 3 left!

0

14

Honda 16221-ZG0-801

GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

15

Honda 16225-ZN4-000

PLATE, CARBURETOR JOINT

$19.99

$

In Stock, only 2 left!

0

18

Honda 16851-Z0G-000

TUBE A, FUEL

$6.99

$

Usually ships in 3-6 days

0

19

Honda 16953-ZG1-015

LEVER, PETCOCK

$12.99

$

Usually ships in 3-6 days

0

20

Honda 16954-ZG1-005

PLATE, LEVER SETTING

$5.99

$

Usually ships in 3-6 days

0

21

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.99

$

In Stock, only 2 left!

0

22

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.99

$

In Stock, only 3 left!

0

23

Honda 17228-Z0G-000

GASKET, AIR CLEANER

$6.49

$

In Stock, only 4 left!

0

24

Honda 90002-Z0G-000

BOLT, STUD (5X81)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 93500-03005-1H

SCREW, PAN (3X5)

$0.99

$

In Stock, Qty 5

0

26

Honda 93600-05020-0A

SCREW, FLAT (5X20)

$1.49

$

In Stock, Qty 10

0

27

Honda 95002-02080

CLIP, TUBE (B8)

$2.99

$

In Stock, Qty 20+

0

28

Honda 99101-ZG0-0450

JET, MAIN (#45)

Note: (Optional).

$10.99

$

In Stock, only 1 left!

0

28

Honda 99101-ZG0-0480

JET, MAIN (#48)

Note: (Optional).

$9.49

$

In Stock, only 1 left!

0

28

Honda 99101-ZG0-0500

JET, MAIN (#50)

$11.99

$

In Stock, only 1 left!

0

30

Honda 99204-ZE2-0350

JET SET, PILOT (#35)

$15.99

$

Usually ships in 3-6 days

0

31

Honda 95003-03001-60M

BULK HOSE, VINYL (3X6X1000) (3X6X120)

$4.49

$

Usually ships in 3-6 days

0
