F220 A/A (FAAJ) - Honda 21" Tiller, Made in Japan (SN: FAAJ-1011998 - FAAJ-1049999) SIDE DISK KIT + ROTOR KIT Parts Diagram

21" Tiller, Made in Japan

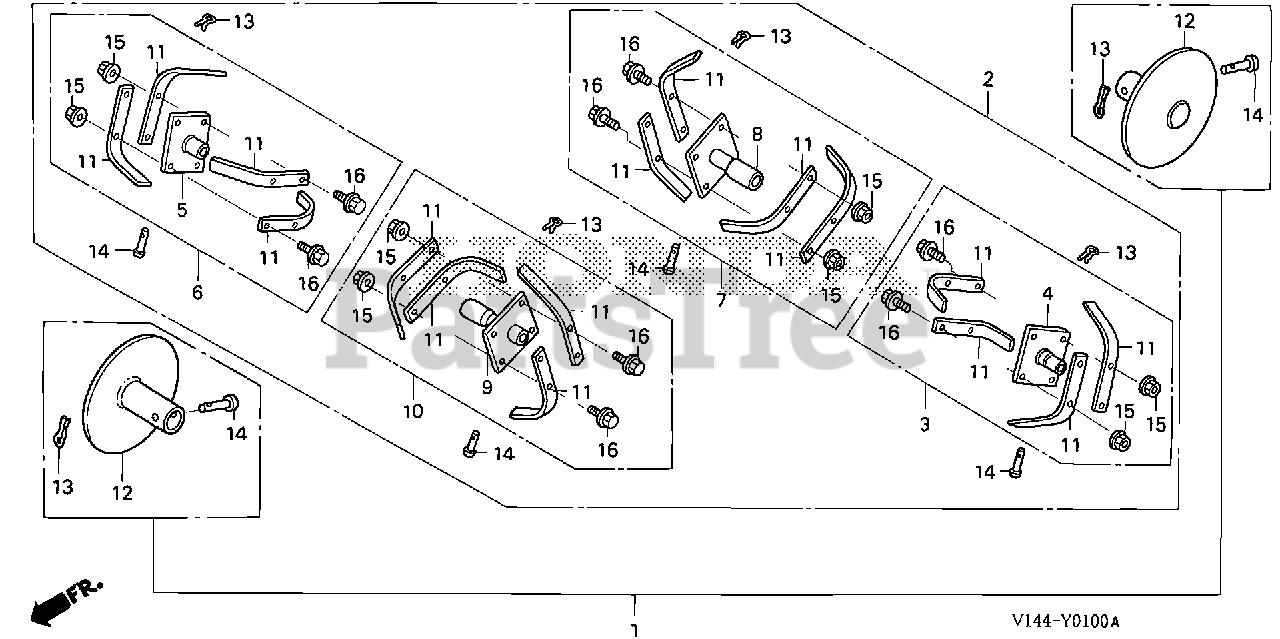

SIDE DISK KIT + ROTOR KIT Parts Diagram

  • Title

1

Honda 06720-V14-620

DISK KIT, SIDE

Note: (Optional).

$37.99

$

In Stock, only 1 left!

0

2

Honda 06721-729-305ZA

ROTOR KIT *NH1* (BLACK)

Note: (Optional).

$309.99

$

In Stock, only 1 left!

0

3

Honda 72110-729-670ZA

PIPE, L. MAIN *NH1* (BLACK)

Note: (Optional).

$123.99

$

Usually ships in 3-6 days

0

4

Honda 72111-729-305

PIPE, L. ROTOR MAIN

Note: (Optional).

$65.99

$

Usually ships in 3-6 days

0

5

Honda 72112-729-305

PIPE, R. ROTOR MAIN

Note: (Optional).

$65.99

$

Usually ships in 3-6 days

0

6

Honda 72120-729-670ZA

PIPE, R. MAIN *NH1* (BLACK)

Note: (Optional).

$123.99

$

Usually ships in 3-6 days

0

7

Honda 72210-729-670ZA

PIPE, L. EXTENSION *NH1* (BLACK)

Note: (Optional).

$86.99

$

Usually ships in 3-6 days

0

8

Honda 72211-729-305

PIPE, L. ROTOR EXTENSION

Note: (Optional).

$52.99

$

Usually ships in 3-6 days

0

9

Honda 72212-729-305

PIPE, R. ROTOR EXTENSION

Note: (Optional).

$52.99

$

Usually ships in 3-6 days

0

10

Honda 72220-729-670ZA

PIPE, R. EXTENSION *NH1* (BLACK)

Note: (Optional).

$86.99

$

Usually ships in 3-6 days

0

11

Honda 72461-729-315

TINE A, ROTOR

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

12

Honda 72510-737-003

DISK, SIDE

Note: (Optional).

$77.99

$

Usually ships in 3-6 days

0

13

Honda 90651-703-000

PIN, SNAP (7MM)

Note: (Optional).

$1.99

$

In Stock, Qty 11

0

14

Honda 90757-729-000

PIN, WHEEL (8X35)

Note: (Optional).

$7.99

$

In Stock, only 4 left!

0

15

Honda 94050-08000

NUT, FLANGE (8MM)

Note: (Optional).

$1.49

$

In Stock, Qty 20+

0

16

Honda 95701-08018-00

BOLT, FLANGE (8X18)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0
