F220 A/B (FAAJ) - Honda 21" Tiller, Made in Japan (SN: FAAJ-1050001 - FAAJ-1199999) ROTOR TINE Parts Diagram

21" Tiller, Made in Japan

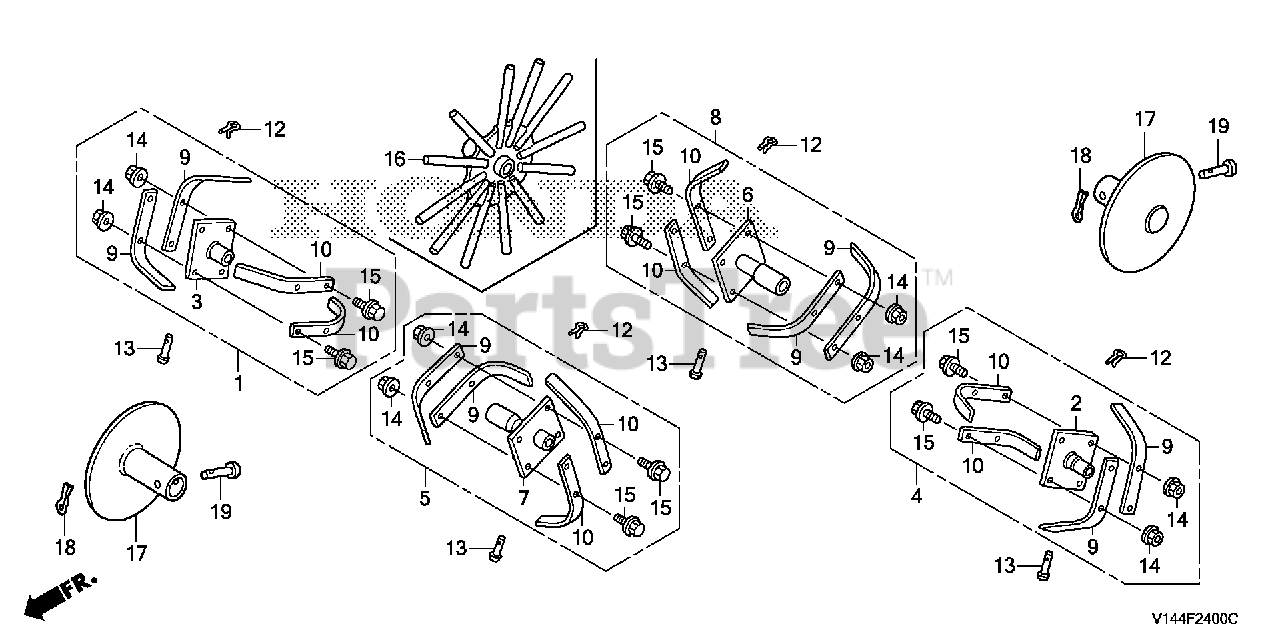

ROTOR TINE Parts Diagram

  • Title

1

Honda 72110-737-E80ZA

PIPE, R. MAIN *NH1* (BLACK)

Note: (Optional).

$123.99

$

Usually ships in 3-6 days

0

1

Honda 72120-729-670ZA

PIPE, R. MAIN *NH1* (BLACK)

$123.99

$

Usually ships in 3-6 days

0

2

Honda 72111-729-305

PIPE, L. ROTOR MAIN

Note: (Optional).

$65.99

$

Usually ships in 3-6 days

0

3

Honda 72112-729-305

PIPE, R. ROTOR MAIN

Note: (Optional).

$65.99

$

Usually ships in 3-6 days

0

4

Honda 72110-729-670ZA

PIPE, L. MAIN *NH1* (BLACK)

$123.99

$

Usually ships in 3-6 days

0

4

Honda 72120-737-E80ZA

PIPE, L. MAIN *NH1* (BLACK)

Note: (Optional).

$123.99

$

Usually ships in 3-6 days

0

5

Honda 72210-737-E80ZA

PIPE, R. EXTENSION *NH1* (BLACK) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

5

Honda 72220-729-670ZA

PIPE, R. EXTENSION *NH1* (BLACK)

$86.99

$

Usually ships in 3-6 days

0

6

Honda 72211-729-305

PIPE, L. ROTOR EXTENSION

Note: (Optional).

$52.99

$

Usually ships in 3-6 days

0

7

Honda 72212-729-305

PIPE, R. ROTOR EXTENSION

Note: (Optional).

$52.99

$

Usually ships in 3-6 days

0

8

Honda 72210-729-670ZA

PIPE, L. EXTENSION *NH1* (BLACK)

$86.99

$

Usually ships in 3-6 days

0

8

Honda 72220-737-E80ZA

PIPE, L. EXTENSION *NH1* (BLACK) (N/A: SEE COMPONENTS)

Note: (Optional).

$

$

Not available

9

Honda 72461-729-315

TINE A, ROTOR

$17.99

$

Usually ships in 3-6 days

0

9

Honda 72461-737-A00

TINE, ROTOR (C)

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

10

Honda 72461-729-315

TINE A, ROTOR

$17.99

$

Usually ships in 3-6 days

0

10

Honda 72465-737-A00

TINE, ROTOR (D)

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

12

Honda 90651-703-000

PIN, SNAP (7MM)

$1.99

$

In Stock, Qty 11

0

13

Honda 90757-729-000

PIN, WHEEL (8X35)

$7.99

$

In Stock, only 4 left!

0

14

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

15

Honda 95701-08018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X18) Use from Frame SN 1256673.

$2.99

$

Usually ships in 3-6 days

0

16

Honda 72610-729-810

ROTOR, PICK-UP

Note: (Optional).

$44.99

$

Usually ships in 3-6 days

0
