F220 K1 ANT (FAAJ) - Honda 21" Tiller, Made in Japan HANDLEBAR Parts Diagram

21" Tiller, Made in Japan

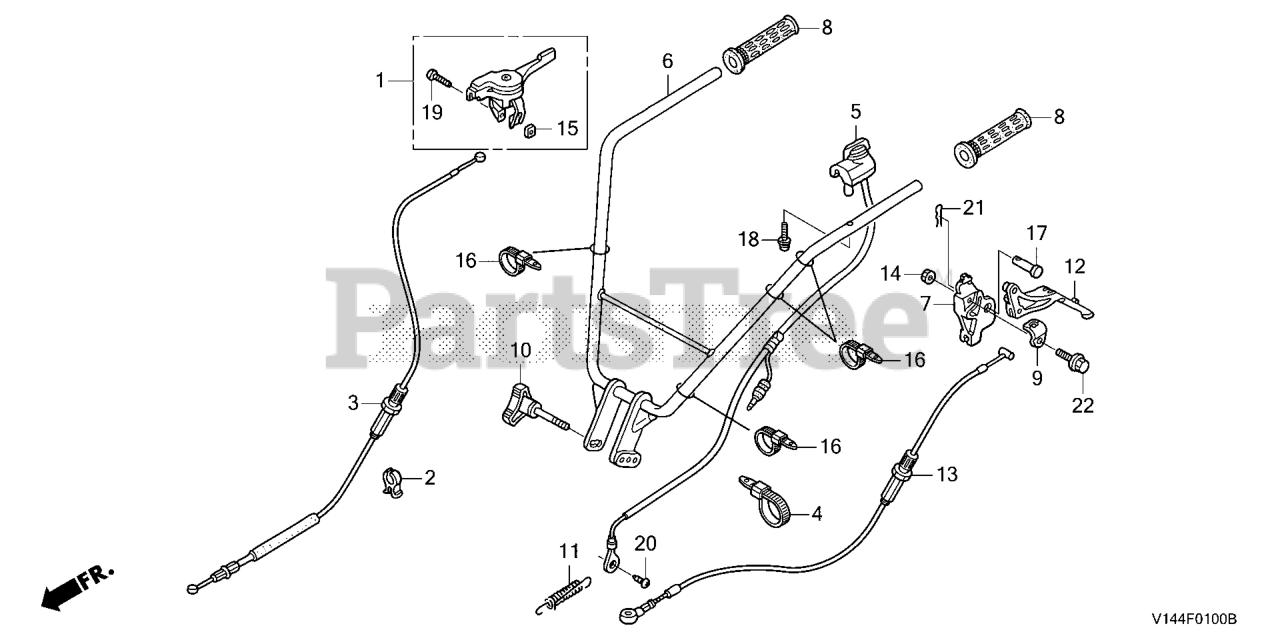

HANDLEBAR Parts Diagram

  • Title

1

Honda 17850-721-013

LEVER ASSY., THROTTLE

$38.99

$

In Stock, only 1 left!

0

2

Honda 17851-777-003

CLIP, THROTTLE (RESIN MOLDED CLIP)

$2.99

$

In Stock, only 2 left!

0

3

Honda 17910-V14-003

CABLE, THROTTLE

$24.99

$

In Stock, only 2 left!

0

4

Honda 32161-404-610

BAND B1, CABLE Use up to Frame SN 1001879.

$3.49

$

Usually ships in 3-6 days

0

5

Honda 35120-V14-H31

SWITCH ASSY., ENGINE STOP

$30.99

$

Usually ships in 3-6 days

0

6

Honda 53110-V14-000

PIPE, HANDLE

$240.99

$

Usually ships in 3-6 days

0

7

Honda 53131-V14-000

BRACKET, HANDLE

$17.99

$

In Stock, only 2 left!

0

8

Honda 53166-397-940

GRIP, L. HANDLE

$18.99

$

Usually ships in 3-6 days

0

9

Honda 53173-GS7-003

BAND, HANDLE BRACKET

$7.49

$

In Stock, only 2 left!

0

10

Honda 53175-737-000

GRIP, HANDLE JOINT

$32.99

$

In Stock, only 2 left!

0

11

Honda 54411-V14-000

SPRING, CLUTCH

$8.49

$

Usually ships in 3-6 days

0

12

Honda 54415-V14-000

LEVER, CLUTCH

$26.99

$

In Stock, only 2 left!

0

13

Honda 54510-V14-003

SEE PART DETAILS - PRI; CABLE, CLUTCH

$25.99

$

In Stock, only 2 left!

0

14

Honda 90302-KBP-900

NUT, SPECIAL (6MM)

$2.99

$

In Stock, only 2 left!

0

15

Honda 90374-777-000

NUT, SQUARE (5MM)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90674-WA8-003

BAND, CABLE (120MM) (BLACK)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90755-740-000

PIN, SIDE CLUTCH LEVER

$6.49

$

Usually ships in 3-6 days

0

18

Honda 93892-03012-00

SCREW-WASHER (3X12)

$1.49

$

In Stock, Qty 6

0

19

Honda 93500-05020-0G

SEE PART DETAILS - PRI; SCREW, PAN (5X20)

$1.49

$

In Stock, Qty 5

0

20

Honda 93901-35220

SCREW, TAPPING (5X12) (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

22

Honda 95701-06025-07

BOLT, FLANGE (6X25)

$2.99

$

In Stock, only 2 left!

0
