F28 A (715) - Honda Tiller, Made in Japan (SN: 715-150005 - 715-275829) F28 SNOWBLOWER Parts Diagram

Tiller, Made in Japan

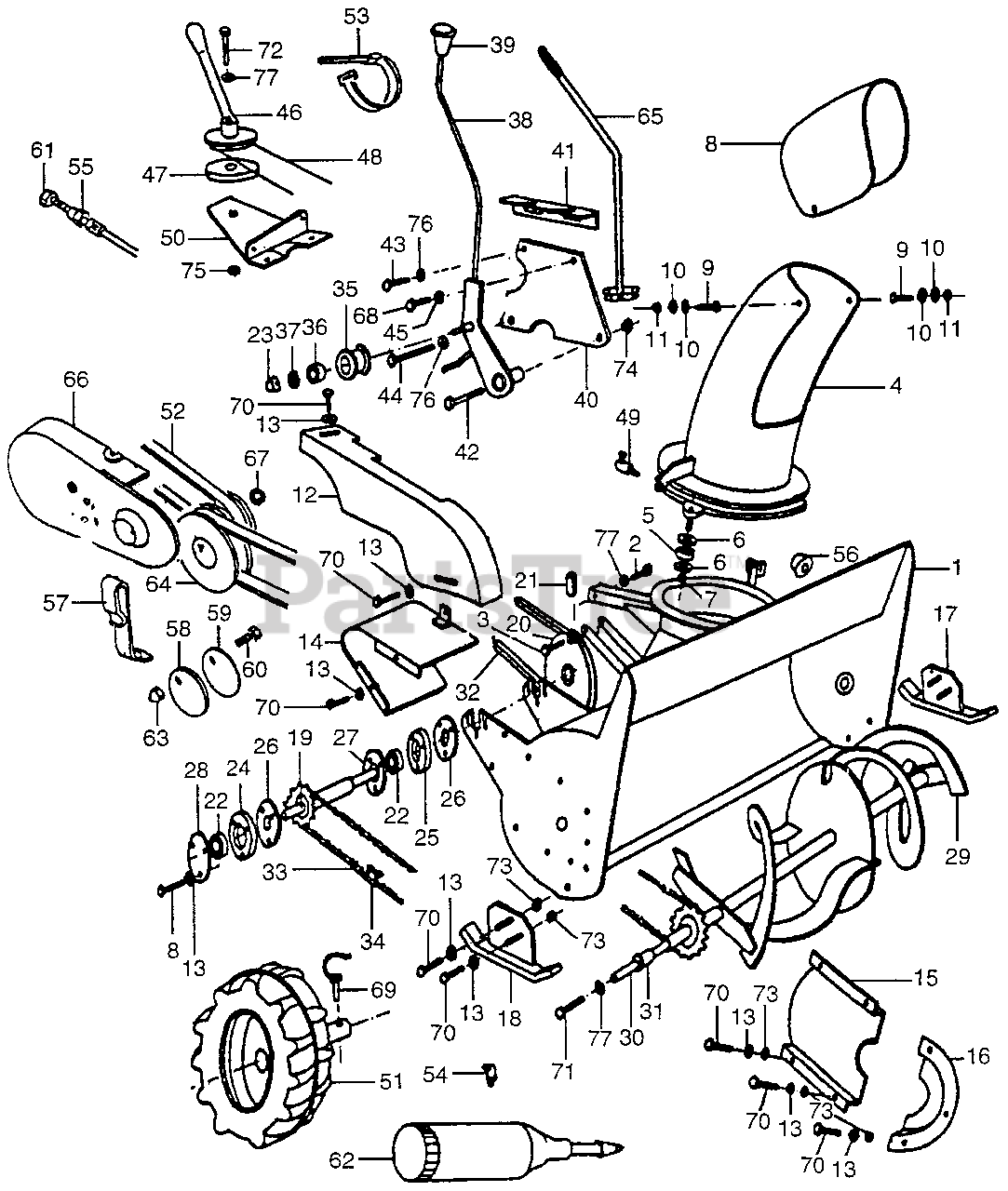

F28 SNOWBLOWER Parts Diagram

  • Title

1

Honda 09101-715-000

HOUSING, BLOWER Use up to Frame SN 0000290.

$

$

Currently unavailable

1

Honda 09101-715-010

HOUSING, BLOWER

$

$

Currently unavailable

1

Honda 09101-715-020

HOUSING, BLOWER Use from Frame SN 0000942.

$

$

Currently unavailable

2

Honda 09102-715-000

BOLT, TOP FRAME Use up to Frame SN 0000290.

$

$

Currently unavailable

2

Honda 09102-715-010

BOLT, TOP FRAME Use from Frame SN 0000291.

$

$

Currently unavailable

3

Honda 09103-715-000

BOLT, FRAME (LOWER)

$

$

Currently unavailable

4

Honda 09104-715-010

CHUTE (LOWER)

$

$

Currently unavailable

5

Honda 09105-715-000

SPACER, RUBBER

$

$

Currently unavailable

6

Honda 09106-715-000

WASHER, CHUTE

$

$

Currently unavailable

7

Honda 09107-715-000

LOCKNUT (6MM)

$

$

Currently unavailable

8

Honda 09108-715-010

ROTATING CHUTE TOP Use up to Frame SN 0000941.

$

$

Currently unavailable

8

Honda 09108-715-020

ROTATING CHUTE TOP

$

$

Currently unavailable

9

Honda 09109-715-000

BOLT, PIVOT

$

$

Currently unavailable

10

Honda 09110-715-000

WASHER, PIVOT

$

$

Currently unavailable

11

Honda 09111-715-000

LOCKNUT (8MM)

$

$

Currently unavailable

12

Honda 09112-715-010

BELT, GUARD

$

$

Currently unavailable

13

Honda 09113-715-000

WASHER, EXT. LK (NOT AVAILABLE)

Note: Use up to Frame SN 0000290.

$

$

Currently unavailable

14

Honda 09114-715-000

GUARD, CHAIN (OUT)

$

$

Currently unavailable

15

Honda 09115-715-000

GUARD, CHAIN

$

$

Currently unavailable

16

Honda 09116-715-000

GUARD, SPROCKET

$

$

Currently unavailable

17

Honda 09117-715-010

PLATE, L. SKID Use up to Frame SN 0000941.

$

$

Currently unavailable

17

Honda 09117-715-020

PLATE, L. SKID Use from Frame SN 0000942.

$

$

Currently unavailable

18

Honda 09118-715-010

PLATE, R. SKID Use up to Frame SN 0000941.

$

$

Currently unavailable

18

Honda 09118-715-020

PLATE, R. SKID Use from Frame SN 0000942.

$

$

Currently unavailable

19

Honda 09119-715-000

SHAFT, SPROCKET

$

$

Currently unavailable

20

Honda 09120-715-000

DRIVEN PULLEY

$

$

Currently unavailable

21

Honda 09121-715-000

ROLLER PIN (6X30)

$

$

Currently unavailable

22

Honda 09122-715-000

BEARING (6003)

$

$

Currently unavailable

23

Honda 09123-715-000

RETAINER, PUSH ON

$

$

Currently unavailable

24

Honda 09133-715-000

HOUSING (OUTER)

$

$

Currently unavailable

25

Honda 09134-715-000

HOUSING (INNER)

$

$

Currently unavailable

26

Honda 09135-715-000

RETAINER, BEARING

$

$

Currently unavailable

27

Honda 09136-715-000

BEARING CAP, IN.

$

$

Currently unavailable

28

Honda 09137-715-000

BEARING CAP (OUTER)

$

$

Currently unavailable

29

Honda 09138-715-010

BLADE, WELDMENT

$

$

Currently unavailable

30

Honda 09139-715-000

BLADE, SPIRAL

$

$

Currently unavailable

31

Honda 09140-715-000

BUSHING, FLANGE

$

$

Currently unavailable

32

Honda 09141-715-010

V-BELT (945MM)

$

$

Currently unavailable

33

Honda 09142-715-000

CHAIN, DRIVE

$

$

Currently unavailable

34

Honda 09134-715-000

HOUSING (INNER)

$

$

Currently unavailable

35

Honda 09144-715-000

TENSIONER, IDLER Use up to Frame SN 0000290.

$

$

Currently unavailable

35

Honda 09144-715-010

TENSIONER, IDLER Use from Frame SN 0000291.

$

$

Currently unavailable

36

Honda 09145-715-000

BEARING (608/2Z)

$

$

Currently unavailable

37

Honda 09146-715-000

CIRCLIP (22MM)

$

$

Currently unavailable

38

Honda 09147-715-000

SHAFT, TENSIONER Use up to Frame SN 0000941.

$

$

Currently unavailable

38

Honda 09147-715-010

SHAFT, TENSIONER Use from Frame SN 0000942.

$

$

Currently unavailable

39

Honda 09148-715-000

KNOB

$

$

Currently unavailable

40

Honda 09149-715-000

PLATE, BASE

$

$

Currently unavailable

41

Honda 09150-715-000

LEVER, LOCK Use up to Frame SN 0000290.

$

$

Currently unavailable

41

Honda 09150-715-010

LEVER, LOCK Use from Frame SN 0000291.

$

$

Currently unavailable

42

Honda 09151-715-000

BOLT, PIVOT

$

$

Currently unavailable

43

Honda 09152-715-000

BOLT, HEX. (6X15MM)

$

$

Currently unavailable

44

Honda 09153-715-000

SPACER, BOLT

$

$

Currently unavailable

45

Honda 09154-715-000

PLATE, SPACER

$

$

Currently unavailable

46

Honda 09155-715-000

HANDLE, CONTROL

$

$

Currently unavailable

47

Honda 09156-715-000

WASHER, NYLON

$

$

Currently unavailable

48

Honda 09157-715-000

CABLE, CHUTE

$

$

Currently unavailable

49

Honda 09158-715-000

LOCK, CABLE

$

$

Currently unavailable

50

Honda 09159-715-000

BASE, CONTROL

$

$

Currently unavailable

51

Honda 09160-715-010

WHEEL ASSY.

$

$

Currently unavailable

52

Honda 09161-715-000

V-BELT (663MM)

$

$

Currently unavailable

53

Honda 09162-715-000

COLLAR, CABLE

$

$

Currently unavailable

54

Honda 09163-715-000

FITTING, GREASE

$

$

Currently unavailable

55

Honda 09165-715-000

CUP, CABLE HOUSING

$

$

Currently unavailable

56

Honda 09166-715-000

CUP, CABLE HOUSING

$

$

Currently unavailable

57

Honda 09167-715-000

HOOK, WIRE

$

$

Currently unavailable

58

Honda 09169-715-000

ADJUSTER, CAM CHAIN

$

$

Currently unavailable

59

Honda 09170-715-000

ADJUSTER, CHAIN

$

$

Currently unavailable

60

Honda 09171-715-000

BOLT (8MM)

$

$

Currently unavailable

61

Honda 09173-715-000

NUT, CABLE ADJUSTING

$

$

Currently unavailable

62

Honda 09174-715-000

GREASE GUN

$

$

Currently unavailable

63

Honda 09175-715-000

NUT, ADJUSTER

$

$

Currently unavailable

64

Honda 22510-715-750

PULLEY, DRIVE

$

$

Not available

65

Honda 24291-715-620

LEVER, CHANGE

$

$

Not available

66

Honda 63610-715-305N

COVER, BELT *PB1*

$

$

Not available

67

Honda 90402-715-750

WASHER, DISTANCE

$

$

Not available

68

Honda 92101-05020-0A

BOLT, HEX. (5X20)

$1.49

$

Usually ships in 3-6 days

0

69

Honda 90650-715-000

CLIP, PIN (31MM)

$

$

Currently unavailable

70

Honda 92101-06010-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X10)

Note: Use up to Frame SN 0000290.

$1.99

$

Usually ships in 3-6 days

0

70

Honda 92101-06010-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X10)

Note: Use from Frame SN 0000291.

$1.99

$

Usually ships in 3-6 days

0

71

Honda 92000-10025-0A

SEE PART DETAILS - SUP; BOLT, HEX. (10X25) Use up to Frame SN 0000290.

$

$

Currently unavailable

71

Honda 92101-10025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (10X25) Use up to Frame SN 0000290.

$2.99

$

Usually ships in 3-6 days

0

72

Honda 92101-10050-0A

BOLT, HEX. (10X50)

$3.99

$

Usually ships in 3-6 days

0

73

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

73

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

74

Honda 94001-08000-0S

NUT, HEX. (8MM) Use up to Frame SN 0000290.

$1.99

$

In Stock, Qty 20+

0

74

Honda 94001-08000-0S

NUT, HEX. (8MM) Use from Frame SN 0000291.

$1.99

$

In Stock, Qty 20+

0

75

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

76

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

77

Honda 94111-10000

WASHER, SPRING (8MM) Use up to Frame SN 0000290.

$1.99

$

Usually ships in 3-6 days

0

77

Honda 94111-10000

WASHER, SPRING (8MM) Use from Frame SN 0000291.

$1.99

$

Usually ships in 3-6 days

0
