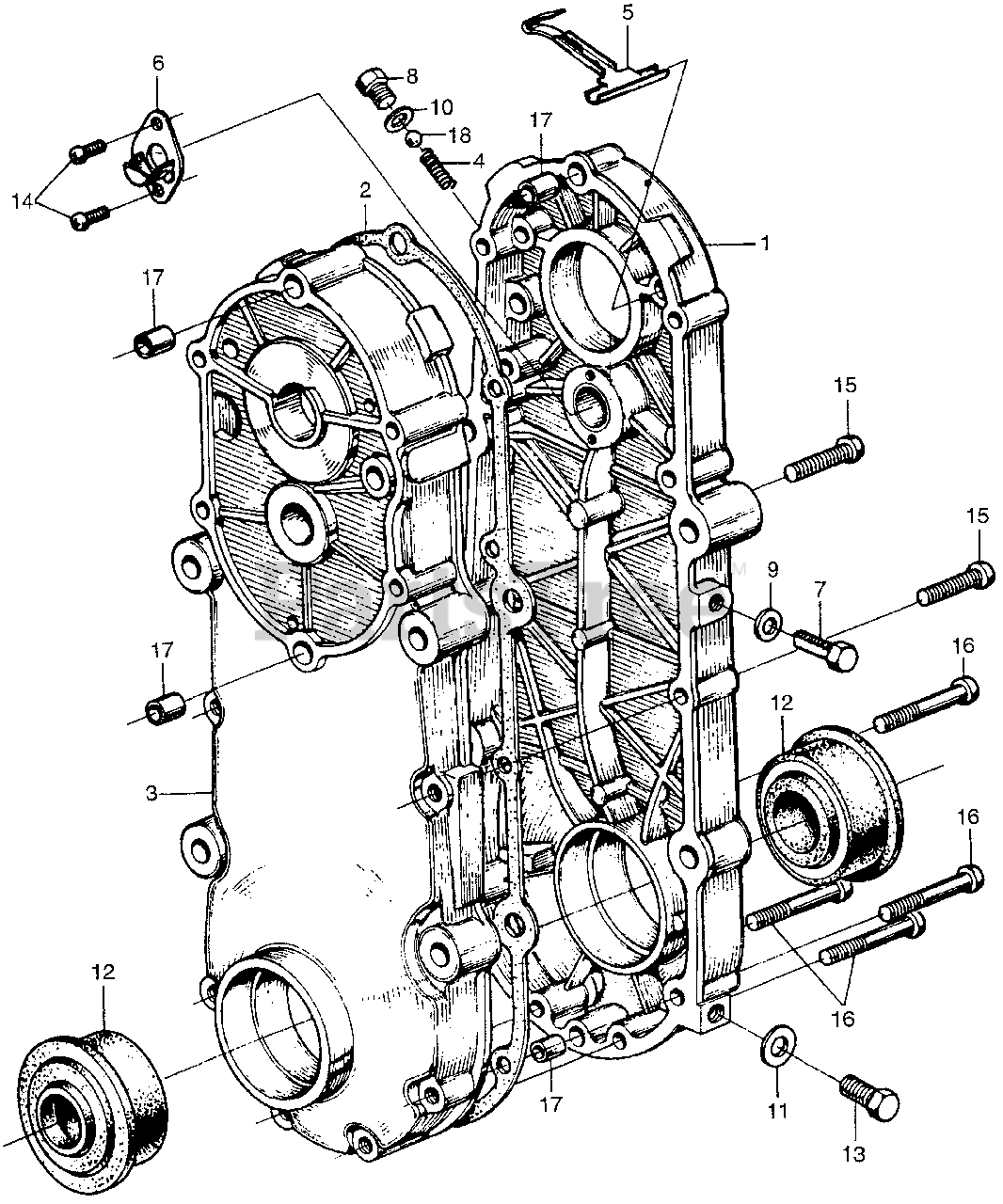

F28 K1 A (715) - Honda Tiller, Made in Japan (SN: 715-279001 - 715-349801) CASE Parts Diagram

Tiller, Made in Japan

CASE Parts Diagram

  • Title

1

Honda 21110-708-040

SEE PART DETAILS - PRI; CASE, R. (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 21191-708-010

GASKET, CASE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 21210-708-040

CASE, L. (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 24271-700-000

SPRING, BALL SETTING

$

$

Not available

5

Honda 25431-715-010

GUIDE, OIL (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 25441-708-020

RECEIVER, OIL (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 25911-700-000

BOLT, OIL CHECK

$

$

Currently unavailable

8

Honda 90086-700-000

BOLT, HEX. (8X8)

$

$

Not available

9

Honda 90478-700-000

WASHER A (6MM)

$0.99

$

Usually ships in 3-6 days

0

10

Honda 90488-700-000

WASHER A (8MM)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 90501-500-000

GASKET, DRAIN PLUG

$

$

Currently unavailable

12

Honda 91205-708-000

SEAL, WATER (25X46X18)

$

$

Not available

13

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$4.99

$

In Stock, only 3 left!

0

14

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 10

0

15

Honda 93500-06025

SEE PART DETAILS - SUP; SCREW, PAN (6X25)

$

$

Currently unavailable

16

Honda 93500-06032-0A

SCREW, PAN (6X32)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94301-08100

SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 96211-08000

BALL, STEEL (#8) (1/4)

$1.99

$

Usually ships in 3-6 days

0
