F28 K1 A (715) - Honda Tiller, Made in Japan (SN: 715-279001 - 715-349801) FUEL TANK Parts Diagram

Tiller, Made in Japan

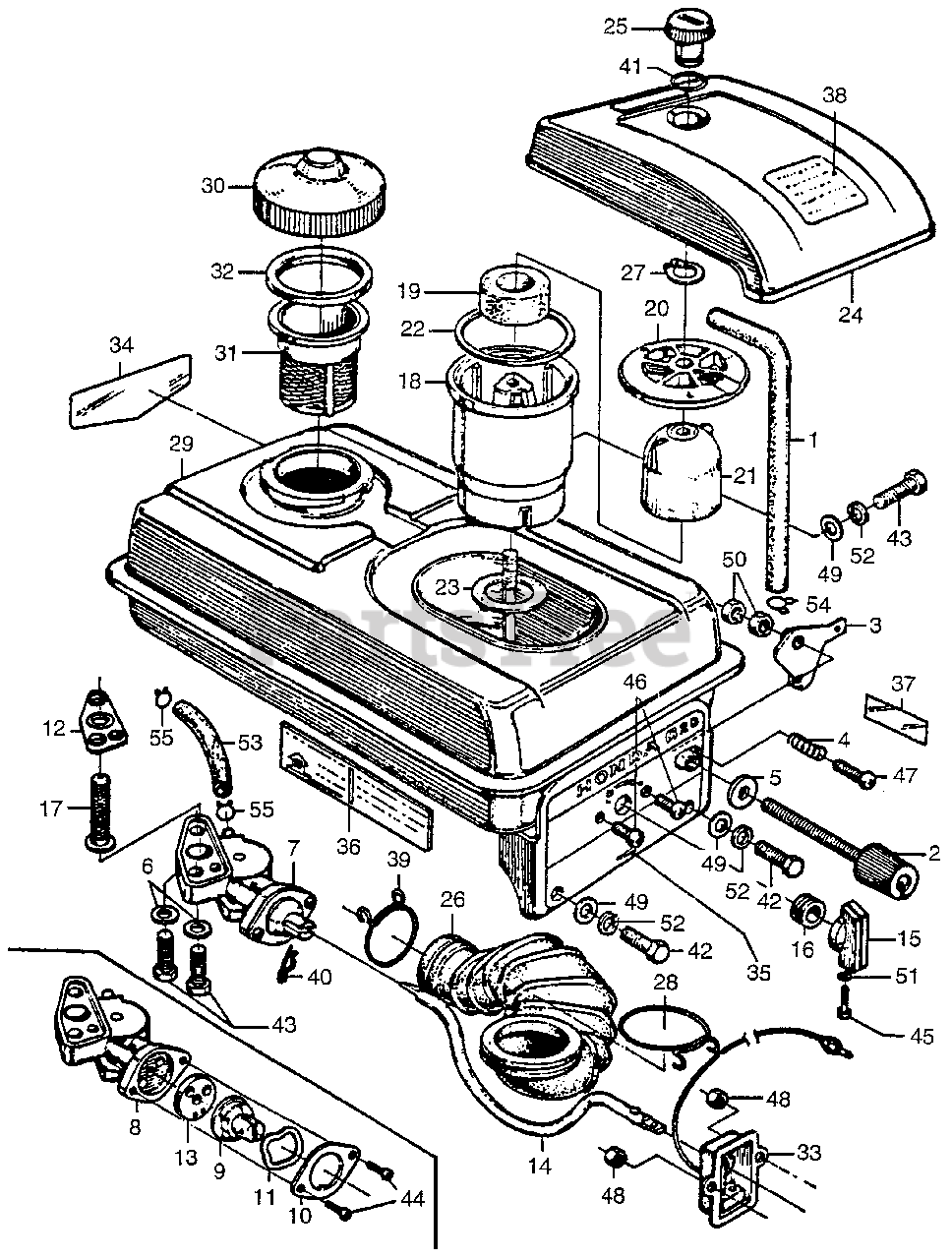

FUEL TANK Parts Diagram

  • Title

1

Honda 11205-844-010

PIPE, BREATHER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16570-844-000

SHAFT, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16572-844-300

GUIDE, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 16575-844-000

SPRING, STOPPER (NOT AVAILABLE)

$

$

Not available

5

Honda 16576-844-000

RUBBER, FRICTION

$

$

Currently unavailable

6

Honda 16913-703-000

GASKET, STRAINER SETTING (NOT AVAILABLE)

Note: Use up to Engine SN 2025998.

$

$

Currently unavailable

6

Honda 90445-700-000

GASKET, FIBER (6MM)

Note: Use from Engine SN 2025999.

$1.49

$

In Stock, only 2 left!

0

7

Honda 16950-844-005

PETCOCK ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16951-816-004

BODY, PETCOCK (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16952-844-004

LEVER, VALVE (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 16954-816-004

HOLDER, LEVER

$

$

Currently unavailable

11

Honda 16955-816-004

SPRING, PETCOCK LEVER

$

$

Not available

12

Honda 16957-816-004

GASKET, FLANGE (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 16960-812-004

GASKET, VALVE

$5.99

$

Usually ships in 3-6 days

0

14

Honda 16961-844-010

SHAFT, PETCOCK

$

$

Not available

15

Honda 16962-816-020

KNOB, PETCOCK (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 16963-844-000

GROMMET, PETCOCK SHAFT

$

$

Currently unavailable

17

Honda 16981-836-700

FILTER, CHECK (NOT AVAILABLE)

$

$

Not available

18

Honda 17210-844-000

PAN, AIR CLEANER OIL

$

$

Not available

19

Honda 17211-844-000

ELEMENT, AIR CLEANER

$

$

Not available

20

Honda 17212-844-000

SEPARATOR A (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 17213-844-000

SEPARATOR B

$35.99

$

In Stock, only 1 left!

0

22

Honda 17215-844-000

GASKET A, CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 17216-844-000

GASKET B, CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 17230-844-000XC

SEE PART DETAILS - PRI; COVER, AIR CLEANER *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 17235-844-000

NUT, CLEANER CAP

$

$

Currently unavailable

25

Honda 17235-844-650

NUT, CLEANER CAP (NOT AVAILABLE)

$

$

Currently unavailable

26

Honda 17240-844-000

TUBE, CONNECTING (NOT AVAILABLE)

$

$

Currently unavailable

27

Honda 17248-844-000

CLIP, CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 17246-844-000

CIRCLIP (42MM) (NOT AVAILABLE)

$

$

Currently unavailable

29

Honda 17500-844-660XC

TANK, FUEL *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

30

Honda 17650-808-000

CAP, FUEL TANK (NOT AVAILABLE)

$

$

Currently unavailable

31

Honda 17672-703-020

SEE PART DETAILS - PRI; FILTER, FUEL

$

$

Not available

32

Honda 17673-703-030

GASKET, FUEL FILTER (NOT AVAILABLE)

$

$

Not available

33

Honda 36100-844-035

SWITCH ASSY., ENGINE

$

$

Currently unavailable

33

Honda 36100-844-650

SWITCH ASSY., ENGINE (NOT AVAILABLE)

$

$

Currently unavailable

34

Honda 87101-805-000

EMBLEM

$

$

Currently unavailable

35

Honda 87111-844-671

PLATE, CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

36

Honda 87522-836-670

MARK A, CAUTION

$

$

Not available

38

Honda 87535-844-660

PLATE, CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

39

Honda 90653-689-000

CIRCLIP (34MM)

$

$

Not available

41

Honda 91304-216-000

O-RING (11.5X2)

$2.49

$

Usually ships in 3-6 days

0

42

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

43

Honda 92101-06020-0A

BOLT, HEX. (6X20)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 93500-03006-0A

SCREW, PAN (3X6)

$1.49

$

Usually ships in 3-6 days

0

45

Honda 93500-03019-0A

SCREW, PAN (3X19) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

46

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

47

Honda 93500-04012-0A

SCREW, PAN (4X12)

$0.99

$

Usually ships in 3-6 days

0

48

Honda 94001-04000-0S

NUT, HEX. (4MM)

$1.49

$

In Stock, only 1 left!

0

49

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

50

Honda 94002-06000-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

51

Honda 94111-03000

WASHER, SPRING (3MM)

$1.49

$

In Stock, only 1 left!

0

52

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

53

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X60)

Note: Use from Engine SN 1122001.

$51.99

$

In Stock, Qty 7

0

54

Honda 95002-02120

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$2.49

$

In Stock, only 2 left!

0

55

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use from Engine SN 1122001.

$2.49

$

In Stock, Qty 20+

0
