F28 K1 A (715) - Honda Tiller, Made in Japan (SN: 715-279001 - 715-349801) MUFFLER + TOOLS Parts Diagram

Tiller, Made in Japan

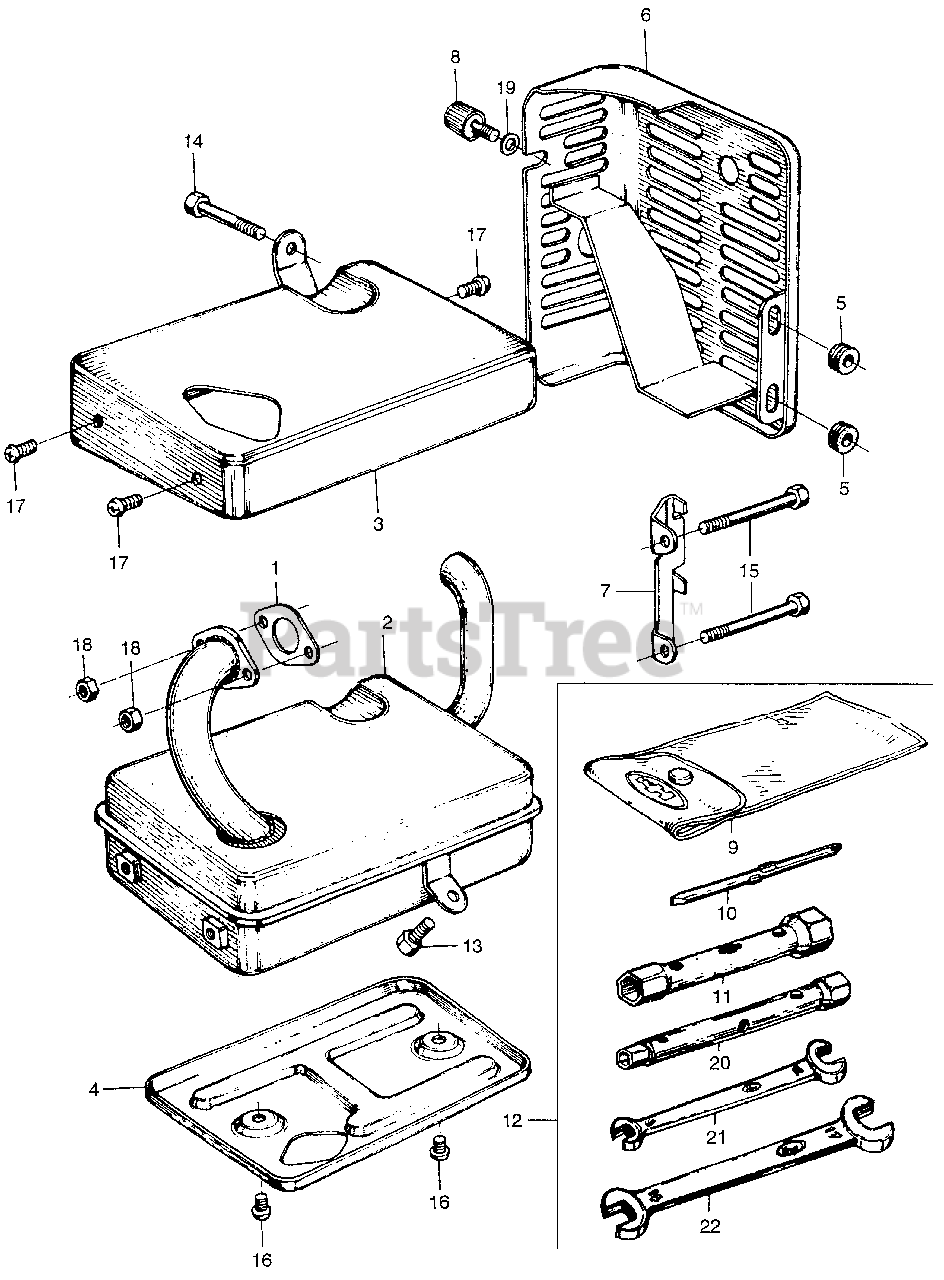

MUFFLER + TOOLS Parts Diagram

  • Title

1

Honda 18232-816-020

GASKET, EX. PIPE (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 18300-844-000

MUFFLER

$

$

Currently unavailable

3

Honda 18330-816-010

PROTECTOR A

$

$

Not available

4

Honda 18340-816-010

PROTECTOR B (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 36151-805-641

GROMMET A, SIDE COVER (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 63501-844-740H

COVER, R. SIDE *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 63502-844-000

STAY, SIDE COVER

$

$

Not available

8

Honda 63505-844-000

LATCH, SIDE COVER

$

$

Currently unavailable

9

Honda 89101-ME5-670

BAG, TOOL

$8.99

$

In Stock, only 1 left!

0

10

Honda 83513-044-000

DRIVER

$4.99

$

Usually ships in 3-6 days

0

11

Honda 83517-044-000

WRENCH, SPARK PLUG (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 89000-715-010

TOOL ASSY. (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

13

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 92101-06045-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X45)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 92101-06025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X25)

$1.99

$

In Stock, Qty 10

0

16

Honda 93500-05006-0B

SCREW, PAN (5X6)

$

$

Not available

17

Honda 93500-05006-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X6)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

18

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

19

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

20

Honda 99001-08120

WRENCH (8X12) (OPEN END)

$4.49

$

Usually ships in 3-6 days

0

21

Honda 99001-10120

WRENCH (10X12) (OPEN END)

$6.99

$

Usually ships in 3-6 days

0

22

Honda 99001-14170

WRENCH (14X17) (OPEN END)

$10.99

$

Usually ships in 3-6 days
