F28 K1 A (715) - Honda Tiller, Made in Japan (SN: 715-279001 - 715-349801) WHEEL SHAFT Parts Diagram

Tiller, Made in Japan

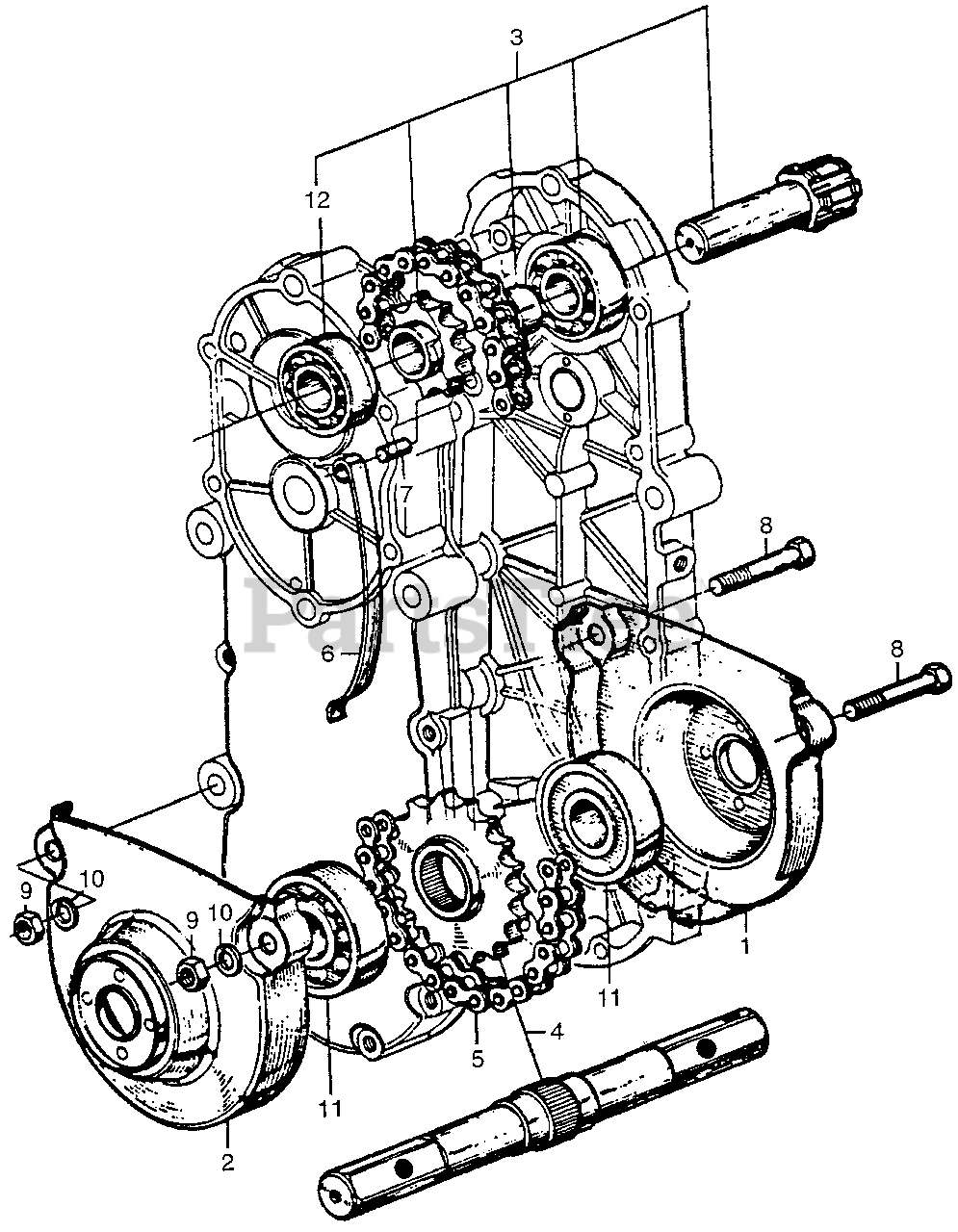

WHEEL SHAFT Parts Diagram

  • Title

1

Honda 21950-708-010

PROTECTOR, R. CASE (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 21960-708-010

PROTECTOR, L. CASE (NOT AVAILABLE)

$

$

Not available

3

Honda 23230-708-030

SHAFT, FINAL (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 23370-708-020

SHAFT, WHEEL (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 23651-715-000

CHAIN, DRIVE (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 23661-708-000

TENSIONER, CHAIN (NOT AVAILABLE)

$

$

Not available

7

Honda 23662-708-000

SHAFT, TENSIONER (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 92101-10050-0A

BOLT, HEX. (10X50)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 94030-10000

NUT, HEX. (10MM)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 94111-10000

WASHER, SPRING (8MM)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 96100-62050-10

BEARING, RADIAL BALL (6205)

$24.99

$

Usually ships in 3-6 days

0

12

Honda 96140-62020

BEARING, RADIAL BALL (6202U)

$18.99

$

Usually ships in 3-6 days

0
