F400 A1 (F400) - Honda Tiller, Made in Japan (SN: F400-2000001 - F400-2031403) F400 FAN COVER + SIDE PLATE Parts Diagram

Tiller, Made in Japan

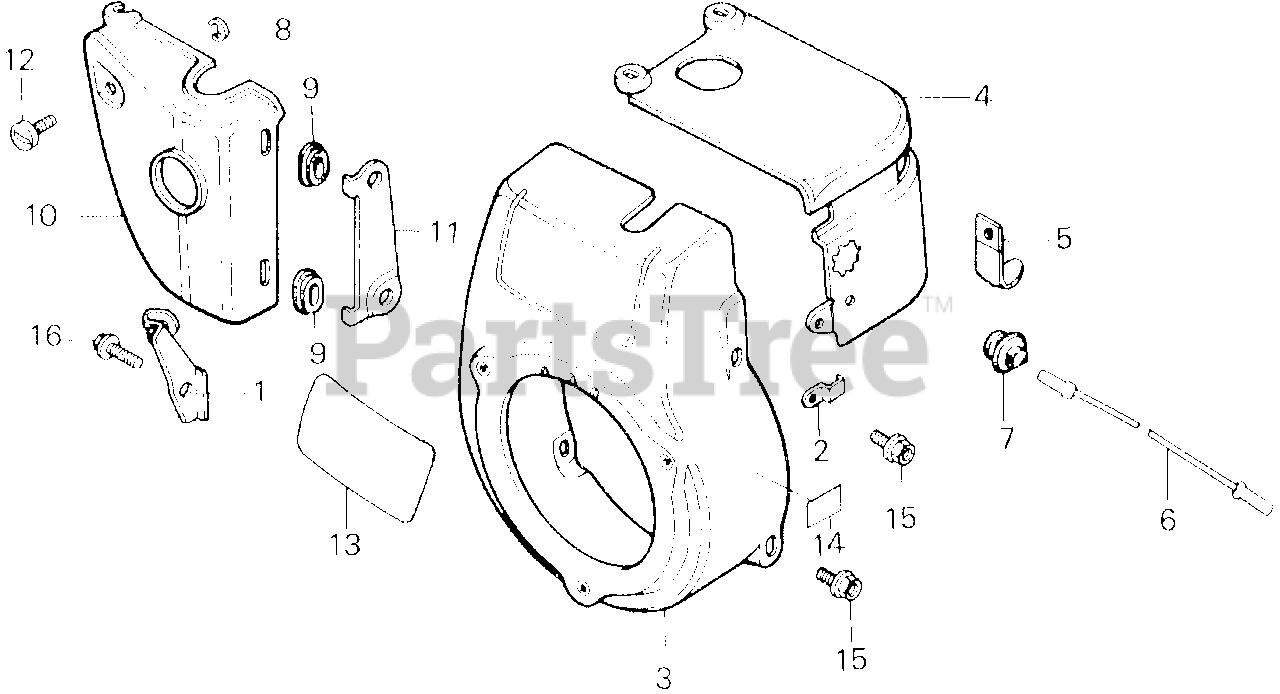

F400 FAN COVER + SIDE PLATE Parts Diagram

  • Title

1

Honda 16591-723-790

HOLDER, THROTTLE

$

$

Not available

2

Honda 16731-921-000

CLAMP, FUEL TUBE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 19610-878-000H

COVER, FAN *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 19621-878-000H

COVER, SIDE *R8* (BRIGHT RED)

$

$

Not available

5

Honda 30564-848-000

CLAMP, WIRE

$

$

Not available

6

Honda 35310-723-790

WIRE A, ENGINE SWITCH

$

$

Not available

7

Honda 36151-873-740

GROMMET, COVER (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 39271-636-000

E-CLIP (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 40513-310-000

RUBBER, CHAIN CASE SETTING

$2.99

$

In Stock, only 2 left!

0

10

Honda 63501-723-790H

COVER, ENGINE SIDE *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 63502-723-790

STAY, SIDE COVER

$

$

Not available

12

Honda 63505-723-790

SCREW, SIDE COVER

$

$

Not available

13

Honda 87102-723-780

MARK, FAN COVER

$

$

Not available

14

Honda 87513-873-710

LABEL, COMPLIANCE

Note: Use from Engine SN 1064616.

$

$

Not available

15

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

15

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0
