F400 A1 (F400) - Honda Tiller, Made in Japan (SN: F400-2000001 - F400-2031403) F400 PISTON + CONNECTING ROD Parts Diagram

Tiller, Made in Japan

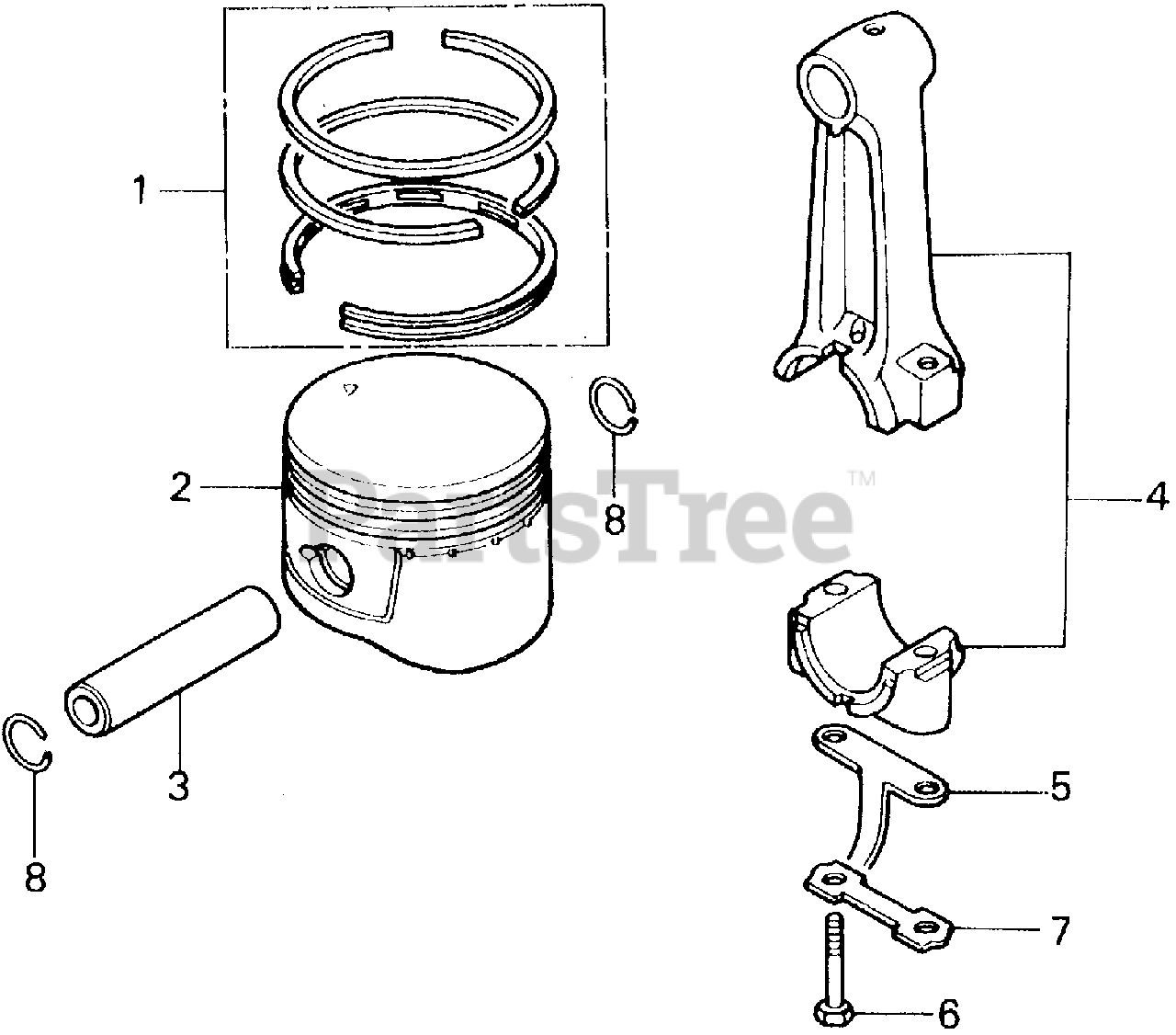

F400 PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-878-000

SEE PART DETAILS - SUP; RING SET, PISTON (STD)

$32.99

$

Usually ships in 3-6 days

0

1

Honda 13010-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$32.99

$

In Stock, only 1 left!

0

1

Honda 13011-878-000

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25)

$30.99

$

Usually ships in 3-6 days

0

1

Honda 13011-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$

$

Currently unavailable

1

Honda 13012-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$

$

Not available

1

Honda 13013-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (OS)

$

$

Not available

2

Honda 13101-878-000

PISTON (STD)

$

$

Not available

2

Honda 13102-878-000

PISTON (OS 0.25) (OS)

$

$

Currently unavailable

2

Honda 13103-878-000

PISTON (OS 0.50) (OS)

$

$

Not available

2

Honda 13104-878-000

PISTON (0.75) (OS)

$

$

Not available

3

Honda 13111-300-000

PIN, PISTON

$

$

Not available

4

Honda 13210-878-000

ROD, CONNECTING

$

$

Not available

4

Honda 13210-878-305

ROD, CONNECTING (US)

$

$

Not available

5

Honda 13281-878-000

DIPPER

$

$

Not available

6

Honda 90001-878-000

BOLT, HEX. (6X37)

$

$

Not available

7

Honda 90431-878-000

WASHER, TONGUED

$

$

Not available

8

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM)

$1.49

$

Usually ships in 3-6 days

0
