F400 A2 (F400) - Honda Tiller, Made in Japan (SN: F400-2000001 - F400-2031403) HANDLEBAR + THROTTLE CABLE + CLUTCH Parts Diagram

Tiller, Made in Japan

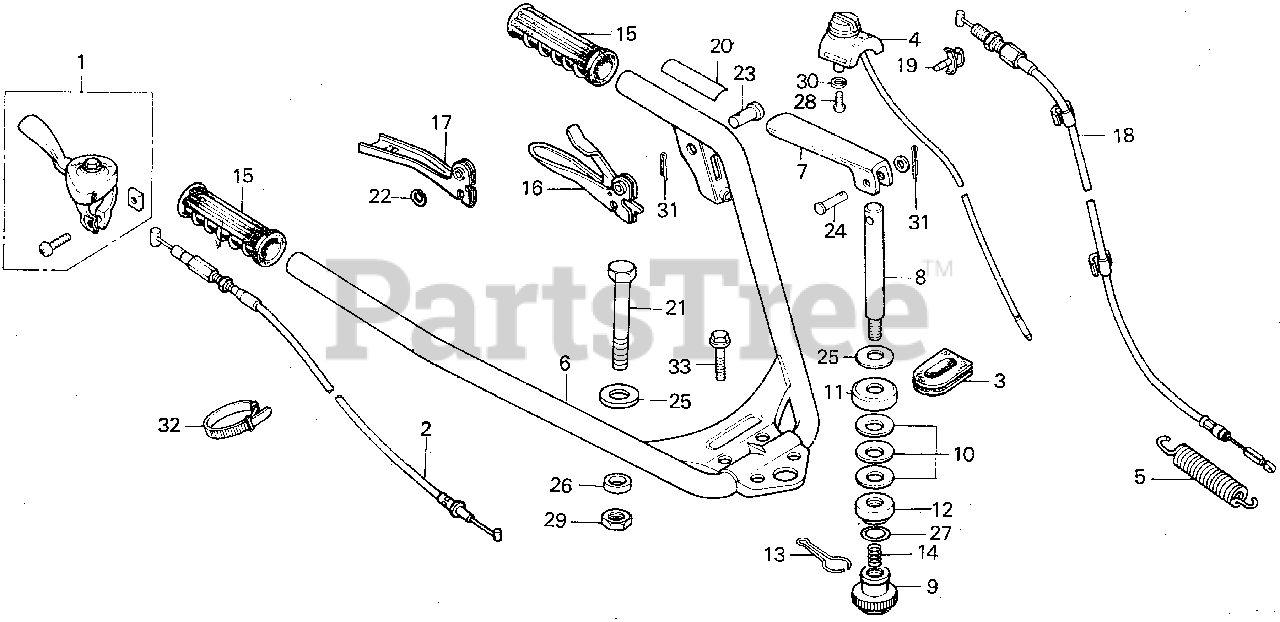

HANDLEBAR + THROTTLE CABLE + CLUTCH Parts Diagram

  • Title

1

Honda 17850-723-000

SEE PART DETAILS - SUP; LEVER ASSY., THROTTLE

$

$

Currently unavailable

1

Honda 17850-723-003

SEE PART DETAILS - PRI; LEVER ASSY., THROTTLE

$27.99

$

In Stock, only 2 left!

0

2

Honda 17910-723-000

CABLE, THROTTLE

$30.99

$

Usually ships in 3-6 days

0

3

Honda 19905-ZA8-701

SEE PART DETAILS - PRI; GROMMET, WIRE

$5.99

$

Usually ships in 3-6 days

0

3

Honda 19905-865-000

SEE PART DETAILS - SUP; GROMMET, WIRE

$

$

Currently unavailable

4

Honda 35130-723-671

SWITCH ASSY., STOP

$80.99

$

Usually ships in 3-6 days

0

5

Honda 51521-715-000

SPRING, LOCK

$7.99

$

Usually ships in 3-6 days

0

6

Honda 53110-723-670

HANDLEBAR

$

$

Not available

7

Honda 53132-715-000

LEVER, HANDLE ADJUSTING

$39.99

$

Usually ships in 3-6 days

0

8

Honda 53133-715-000

SHAFT, HANDLE ADJUSTING

$25.99

$

Usually ships in 3-6 days

0

9

Honda 53134-715-000

NUT, HANDLE ADJUSTING

$16.99

$

Usually ships in 3-6 days

0

10

Honda 53135-715-000

SPRING, HANDLE ADJUSTING

$

$

Not available

11

Honda 53136-715-000

SHEET, HANDLE ADJUSTING SPRING

$10.99

$

Usually ships in 3-6 days

0

12

Honda 53137-715-010

COLLAR, ADJUSTING

$

$

Not available

13

Honda 53138-715-000

HOLDER, NUT

$

$

Not available

14

Honda 53139-715-000

SPRING, LOCK

$2.99

$

Usually ships in 3-6 days

0

15

Honda 53321-708-000

GRIP, HANDLE

$20.99

$

In Stock, only 2 left!

0

16

Honda 54410-723-670

LEVER, CLUTCH (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 54510-723-670

CABLE, CLUTCH (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 87525-723-670

CAUTION, CLUTCH LEVER

Note: Use from Frame SN 2015984.

$

$

Not available

23

Honda 90751-708-000

PIN (8X18)

$

$

Not available

24

Honda 90753-708-010

PIN, ARM (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 90754-715-000

WASHER, THRUST (14)

$

$

Not available

27

Honda 91308-500-010

O-RING (58.5X2)

$18.99

$

Usually ships in 3-6 days

0

28

Honda 93500-03012-0A

SCREW, PAN (3X12)

$1.49

$

In Stock, Qty 6

0

30

Honda 94111-03000

WASHER, SPRING (3MM)

$1.49

$

In Stock, only 3 left!

0

31

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 95014-62100

BAND B1, CABLE

$2.49

$

In Stock, Qty 5

0

33

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 7

0
