F400 A2 (F400) - Honda Tiller, Made in Japan (SN: F400-2000001 - F400-2031403) SUB FENDER Parts Diagram

Tiller, Made in Japan

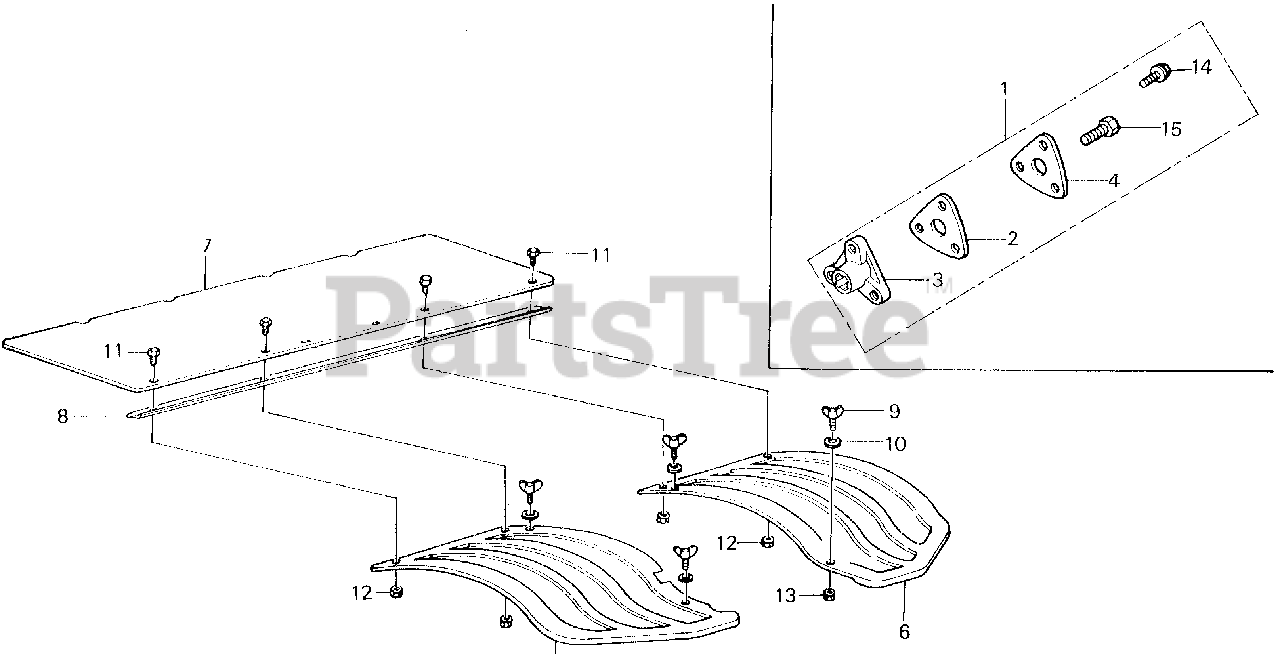

SUB FENDER Parts Diagram

  • Title

1

Honda 06221-723-000

BOSS KIT, P.T.O. PULLEY

$

$

Currently unavailable

2

Honda 22416-723-670

SPACER, PULLEY

$

$

Currently unavailable

3

Honda 22427-723-810

BOSS, P.T.O. PULLEY

$

$

Not available

4

Honda 22461-723-000

PLATE, PULLEY

$

$

Not available

5

Honda 61311-734-000ZA

SUB-FENDER, R. *NH31* (MCKINLEY WHITE)

$

$

Not available

6

Honda 61321-708-811XC

SUB-FENDER, L. *NH31* (MCKINLEY WHITE)

$

$

Currently unavailable

7

Honda 76610-708-810

SPLASH GUARD

$62.99

$

Usually ships in 3-6 days

0

8

Honda 76651-708-811

BAND, SPLASH GUARD SETTING

$34.99

$

Usually ships in 3-6 days

0

9

Honda 90182-706-810

BOLT, WING (8MM)

$

$

Not available

10

Honda 90501-706-000

WASHER, WING BOLT (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

12

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

13

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 20+

0
