F400 K1 A2 (F400) - Honda Tiller, Made in Japan (SN: F400-2100001 - F400-9999999) F400K1 PISTON + CONNECTING ROD Parts Diagram

Tiller, Made in Japan

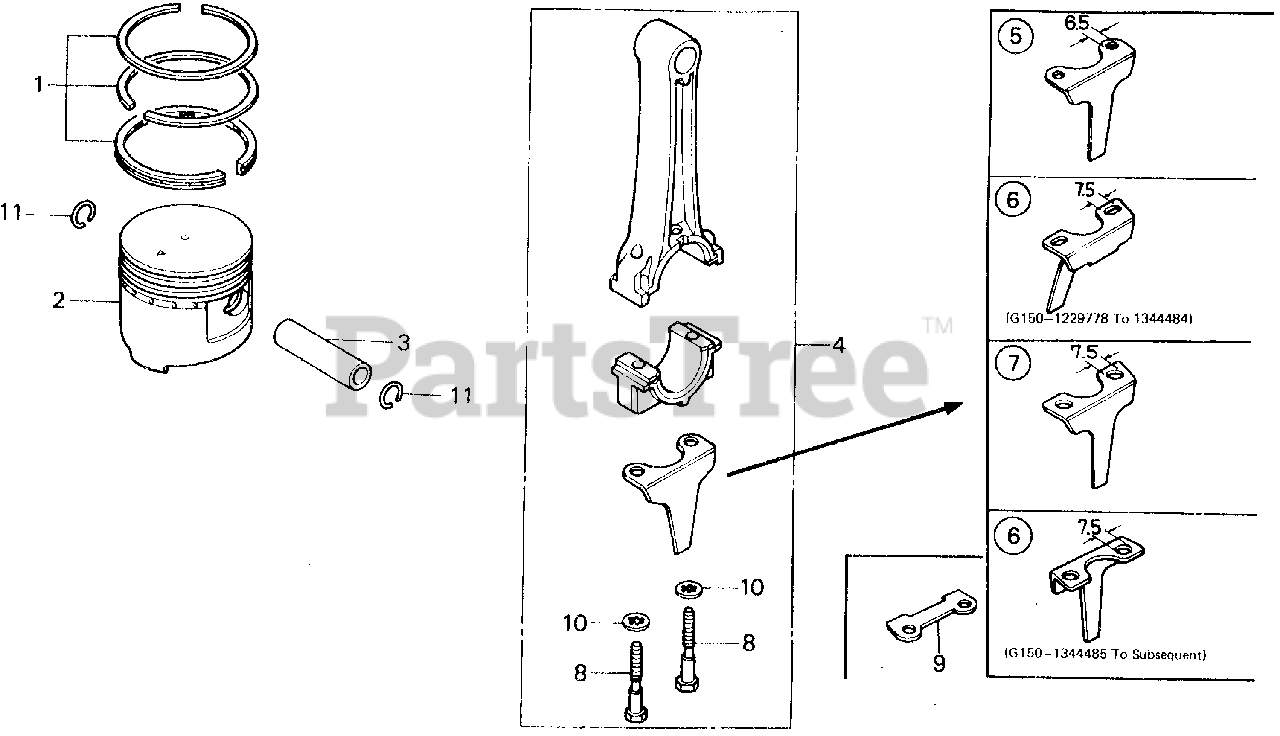

F400K1 PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$32.99

$

In Stock, only 1 left!

0

1

Honda 13011-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$

$

Currently unavailable

1

Honda 13012-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$

$

Not available

1

Honda 13013-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (OS)

$

$

Not available

2

Honda 13101-887-003

PISTON (STD)

$62.99

$

Usually ships in 3-6 days

0

2

Honda 13102-887-000

PISTON (OS 0.25) (OS)

$

$

Not available

2

Honda 13103-887-000

PISTON (OS 0.50) (OS)

$

$

Not available

2

Honda 13104-887-000

PISTON (0.75) (OS)

$

$

Not available

3

Honda 13111-883-000

PIN, PISTON

$10.99

$

In Stock, only 1 left!

0

4

Honda 13200-887-050

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING

Note: Use from Engine SN 1229778.

$

$

Not available

4

Honda 13200-887-305

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (US) Use up to Engine SN 1167848.
(Superseded to 13200-887-428)

$

$

Not available

4

Honda 13200-887-315

ROD ASSY., CONNECTING (US) Use from Engine SN 1167849 to 1229777.

$

$

Currently unavailable

4

Honda 13200-887-328

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-887-505)

Note: Use up to Engine SN 1229777.

$

$

Not available

4

Honda 13200-887-335

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING Use from Engine SN 1229778.
(Superseded to 13200-887-506)

$77.99

$

Usually ships in 3-6 days

0

4

Honda 13200-887-428

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (US) Use up to Engine SN 1229777.

$

$

Not available

5

Honda 13281-887-000

DIPPER, CONNECTING ROD (NOT AVAILABLE)

Note: Use up to Engine SN 1229777.

$

$

Currently unavailable

6

Honda 13281-887-020

DIPPER, CONNECTING ROD

Note: Use from Engine SN 1229778.

$7.49

$

Usually ships in 3-6 days

0

7

Honda 13281-887-318

DIPPER, CONNECTING ROD (NOT AVAILABLE)

Note: Use up to Engine SN 1229777.

$

$

Currently unavailable

8

Honda 90001-883-000

SEE PART DETAILS - SUP; BOLT, CONNECTING ROD (6MM)

Note: Use up to Engine SN 1167848.

$4.49

$

Usually ships in 3-6 days

0

8

Honda 90001-883-010

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (6MM) (NOT AVAILABLE)

Note: Use from Engine SN 1167849 to 1229777.

$

$

Currently unavailable

8

Honda 90001-883-020

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (7MM)

Note: Use from Engine SN 1229778.

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90431-883-000

WASHER B, CONNECTING ROD

Note: Use up to Engine SN 1167848.

$2.99

$

In Stock, only 2 left!

0

10

Honda 90432-883-000

WASHER, LOCK (6MM) (N/A: SEE ASSEMBLY)

Note: Use from Engine SN 1167849 to 1229777.

$

$

Currently unavailable

10

Honda 90432-889-003

WASHER, LOCK (7MM)

Note: Use from Engine SN 1229778.

$1.99

$

Usually ships in 3-6 days

0

11

Honda 90551-883-000

SEE PART DETAILS - SUP; CLIP, PISTON PIN (15MM)
(Superseded to 94601-15000)

Note: Use from Engine SN 1016562.

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM)

$1.49

$

Usually ships in 3-6 days

0
